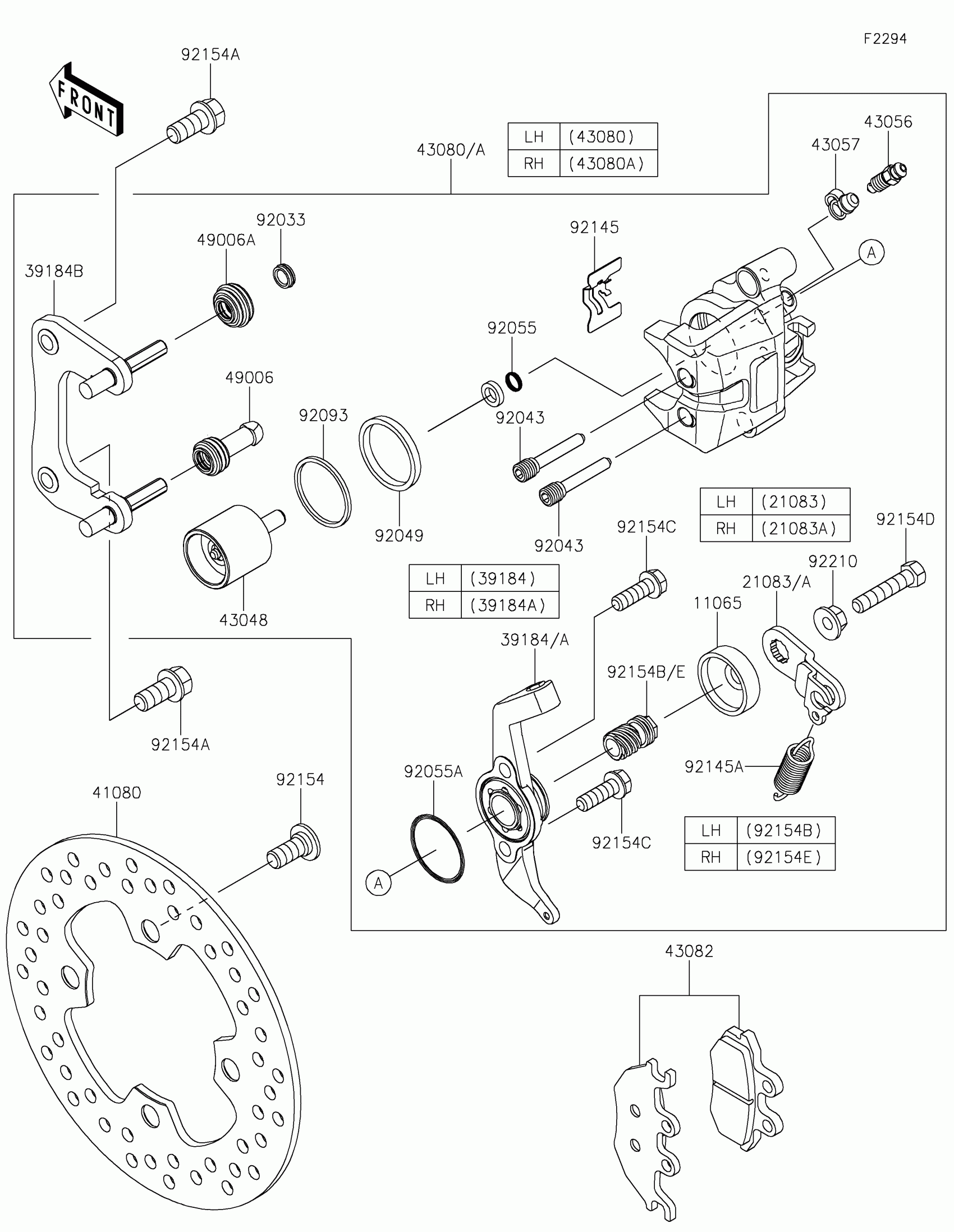

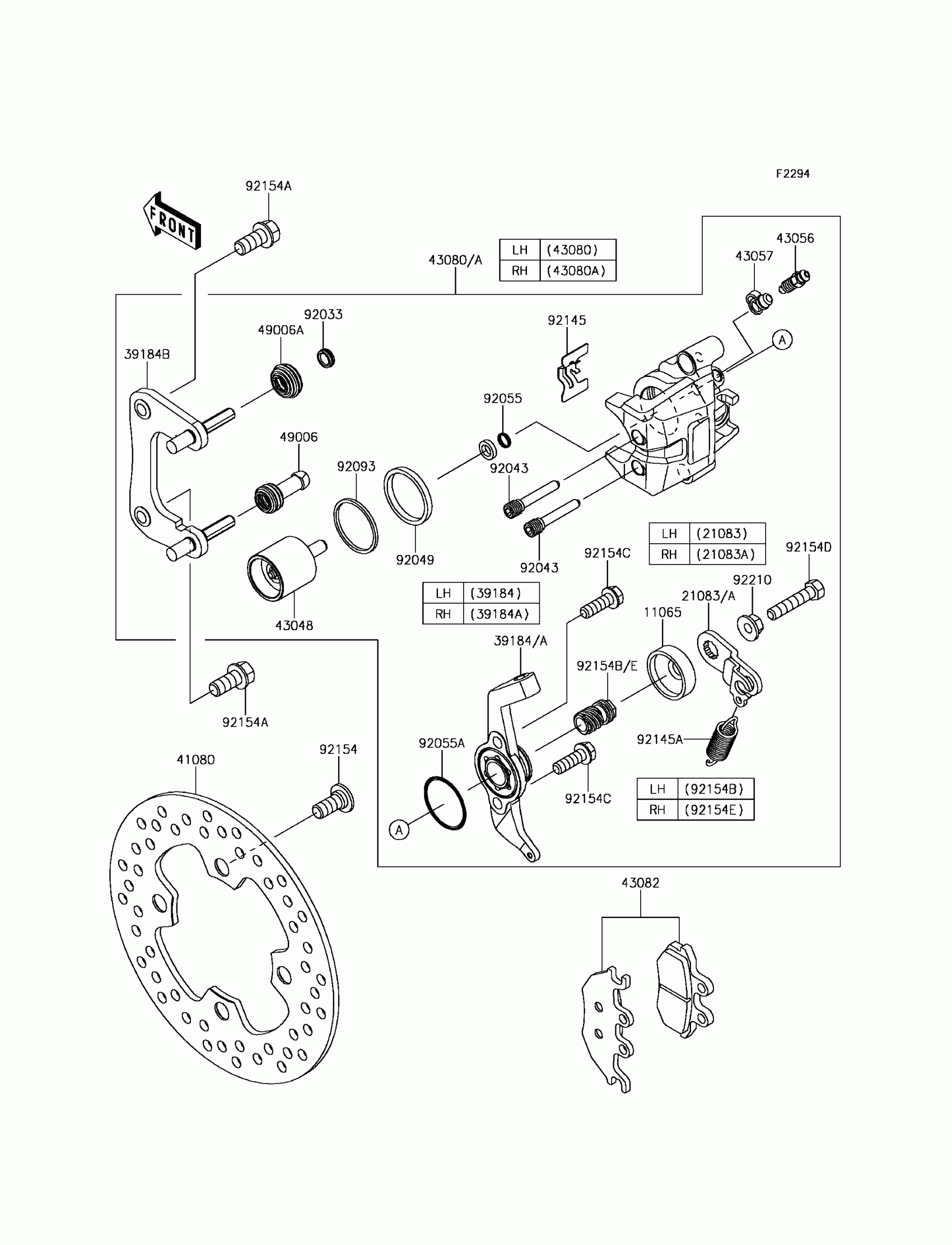

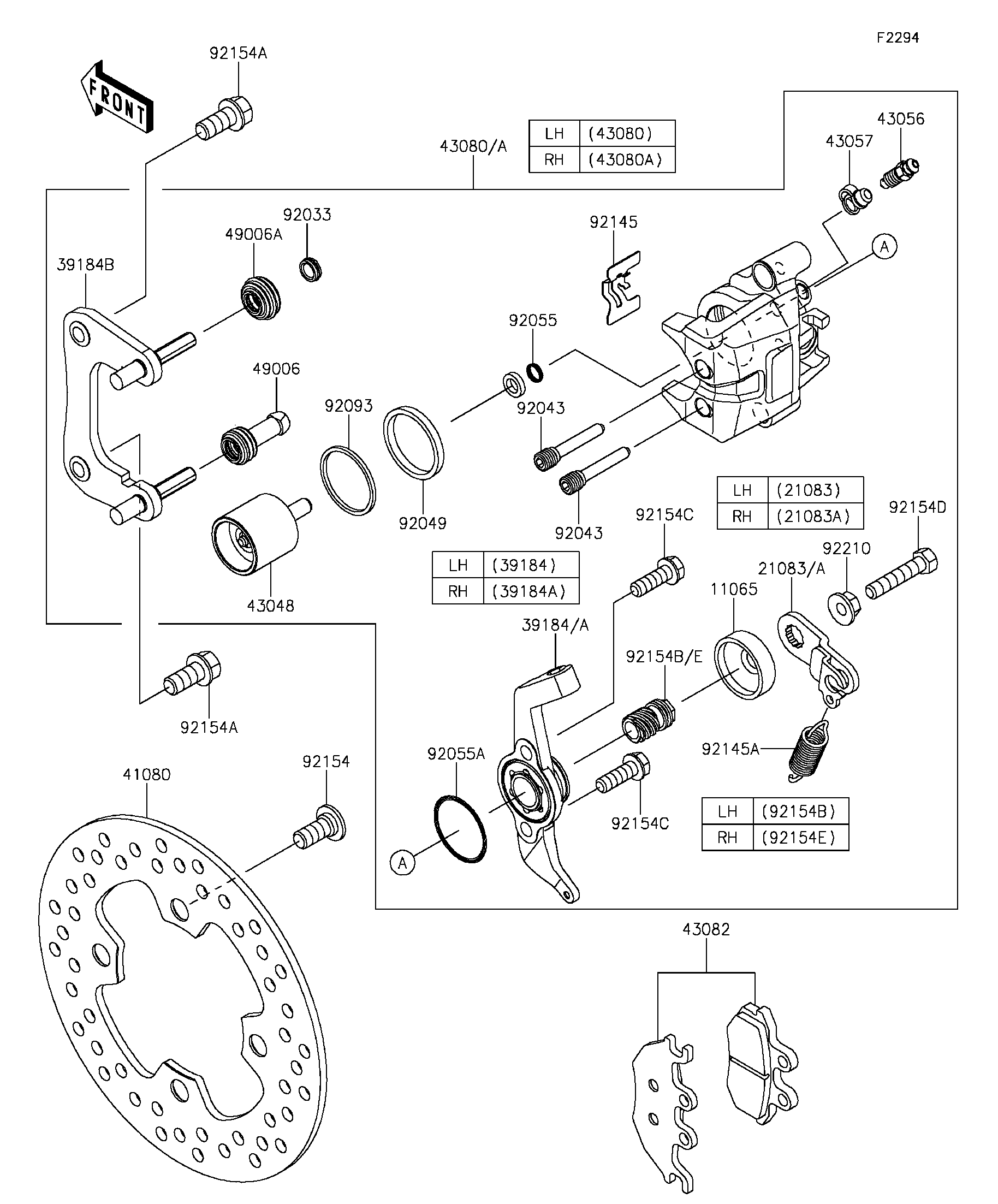

Kawasaki MULE PRO-FX™ EPS Rear Brake Diagram

#

Description

Price

11065

CAP

11065-0870

Unavailable

21083

ARM,BRAKE,RR,LH

21083-0728

Unavailable

21083A

ARM,BRAKE,RR,RH

21083-0729

Unavailable

39184

BRACKET-ASSY,LH

39184-0042

Unavailable

39184A

BRACKET-ASSY,RH

39184-0043

Unavailable

39184B

BRACKET-ASSY

39184-0044

Unavailable

41080

DISC

41080-0608

Unavailable

43048

PISTON-CALIPER

43048-0027

Unavailable

43056

BREATHER-BRAKE

43056-0010

Unavailable

43057

CAP-BREATHER

43057-0552

Unavailable

43080

CALIPER-SUB-ASSY,RR,LH

43080-0163

Unavailable

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0164

Unavailable

43082

PAD-ASSY-BRAKE

43082-0140

Unavailable

49006

BOOT

49006-0591

Unavailable

49006A

BOOT

49006-0592

Unavailable

92033

RING-SNAP

92033-0749

Unavailable

92043

PIN

92043-0818

Unavailable

92049

SEAL-OIL

92049-0765

Unavailable

92055

RING-O

92055-0793

Unavailable

92055A

RING-O

92055-0795

Unavailable

92093

SEAL

92093-0613

Unavailable

92145

SPRING

92145-1619

Unavailable

92145A

SPRING,RETURN,47MM

92145-1690

Unavailable

92154

BOLT,SOCKET,10X23

92154-0713

Unavailable

92154A

BOLT,FLANGED,10X22

92154-1327

Unavailable

92154B

BOLT,LH

92154-1479

Unavailable

92154C

BOLT

92154-1480

Unavailable

92154D

BOLT

92154-1481

Unavailable

92154E

BOLT,RH

92154-1503

Unavailable

92210

NUT

92210-0912

Unavailable
