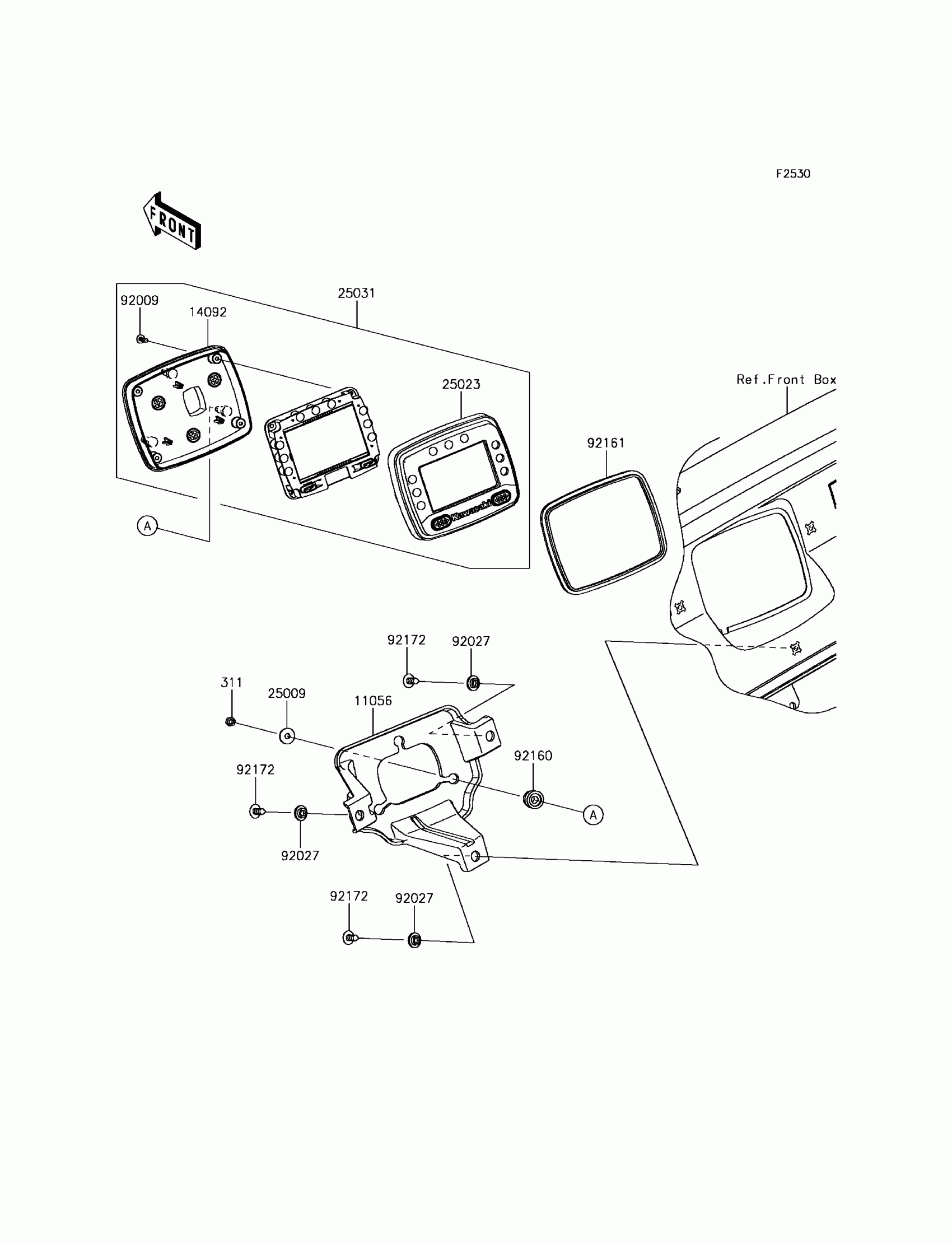

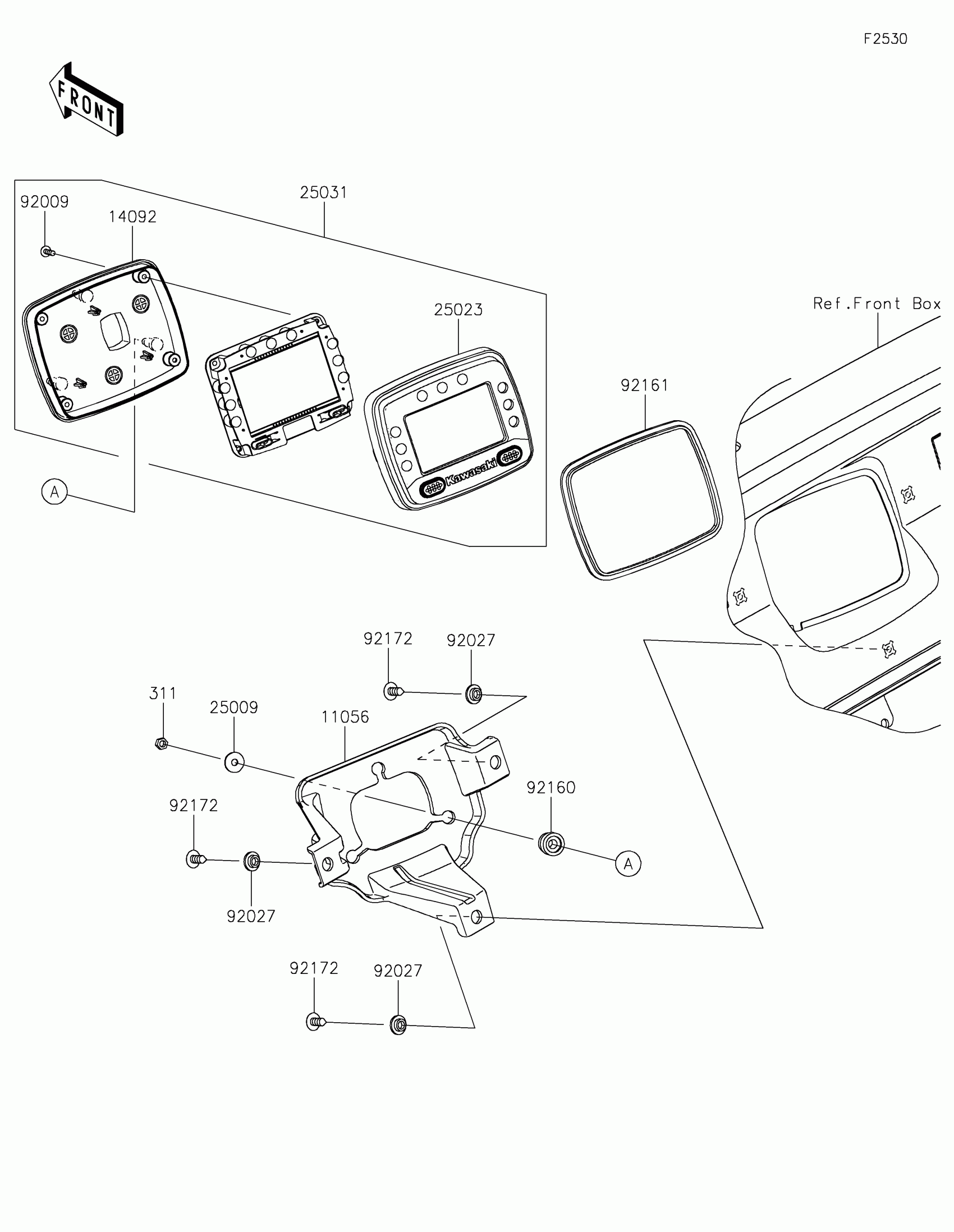

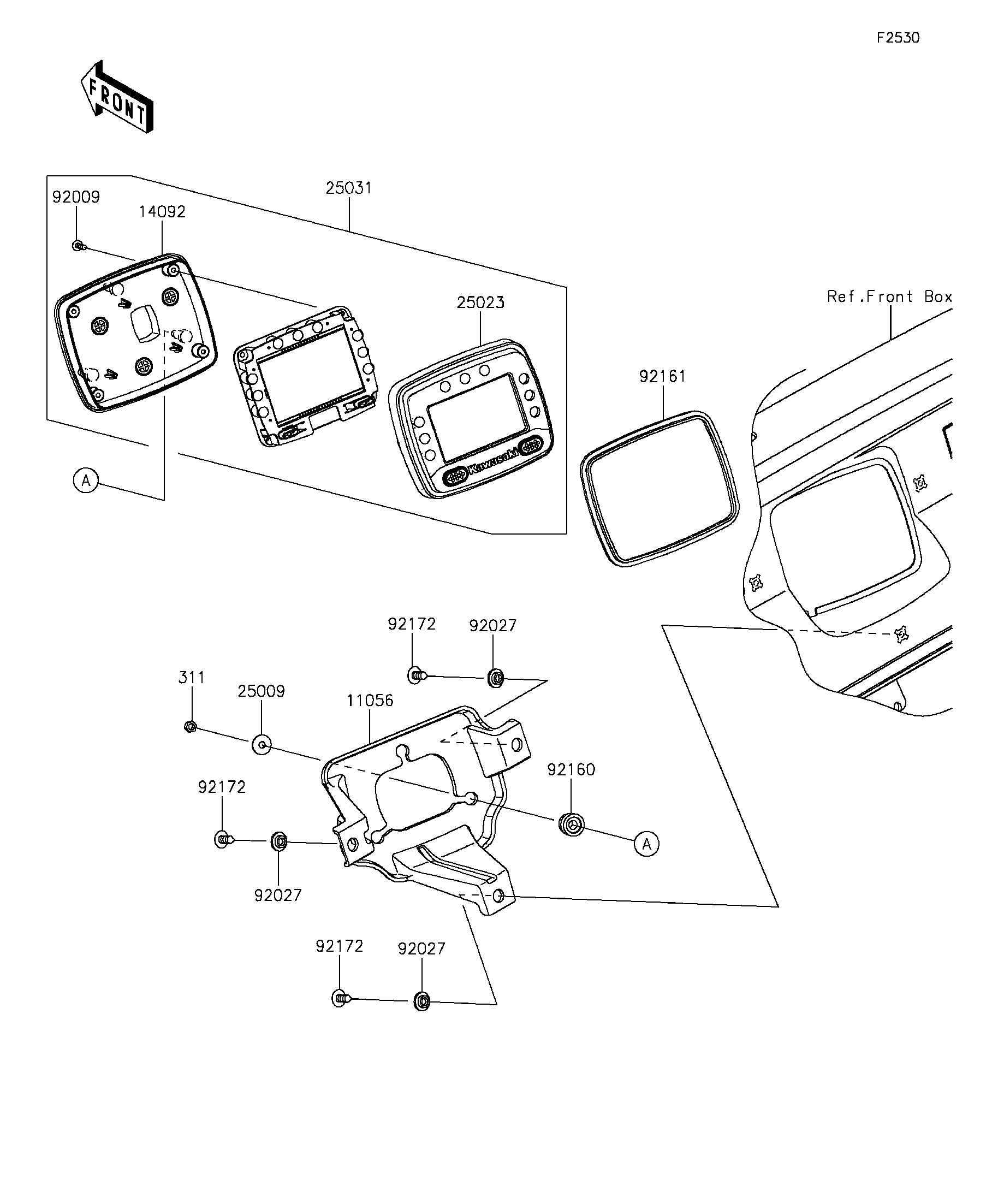

Kawasaki MULE PRO-FX™ EPS Meter(s) Diagram

#

Description

Price

11056

BRACKET,METER

11056-2956

Unavailable

14092

COVER,METER,LWR

14092-0834

Unavailable

25009

WASHER,5.2X16X1.2

25009-004

Unavailable

25023

COVER-METER CASE,UPP

25023-0075

Unavailable

25031

METER-ASSY,LCD

25031-0515

Unavailable

311

NUT-HEX,5MM

311AB0500

Unavailable

92009

SCREW,TAPPING,3X12

92009-1255

Unavailable

92027

COLLAR,L=4.6

92027-1168

Unavailable

92160

DAMPER

92160-1460

Unavailable

92161

DAMPER,METER

92161-0906

Unavailable

92172

SCREW,6X16

92172-0284

Unavailable
