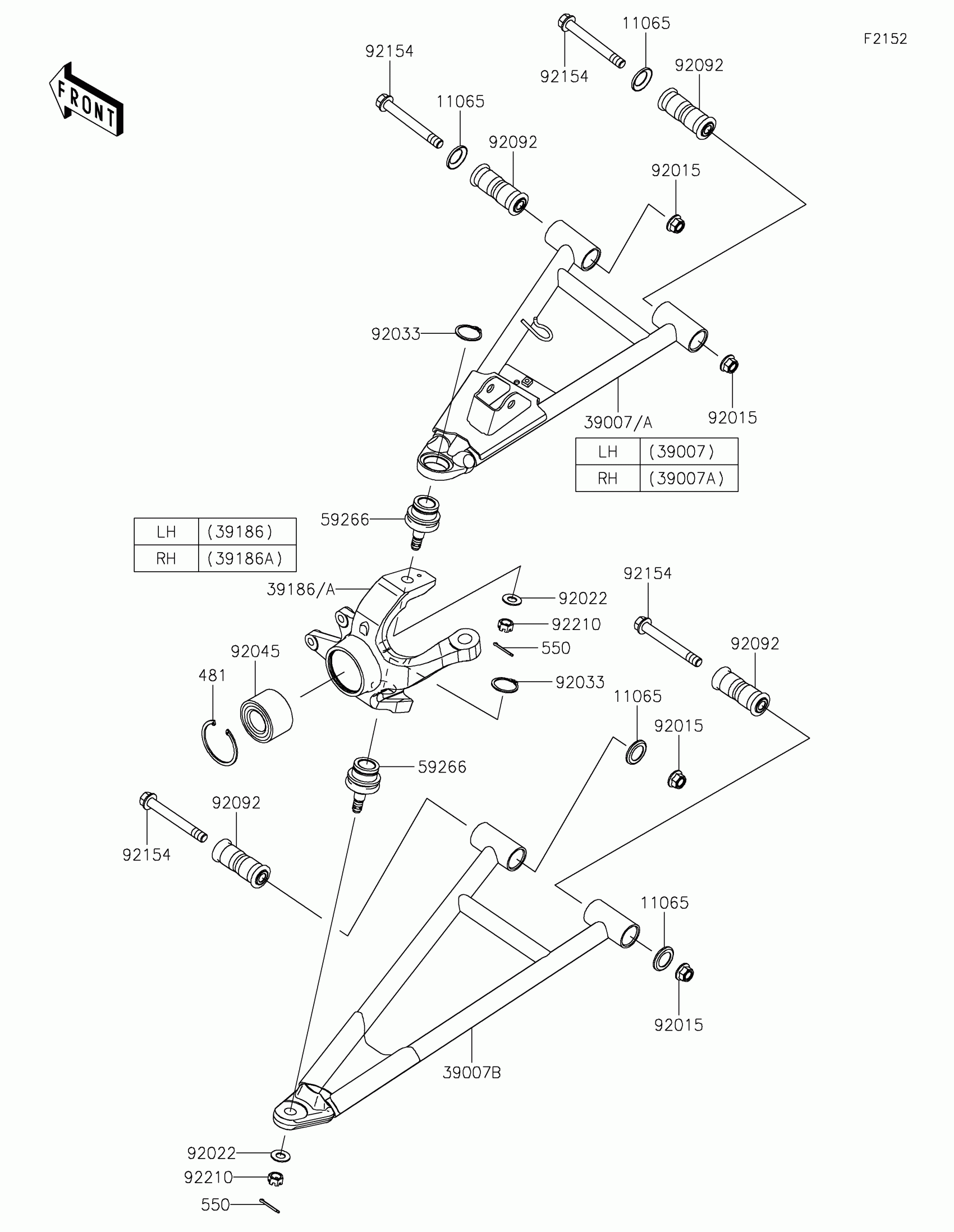

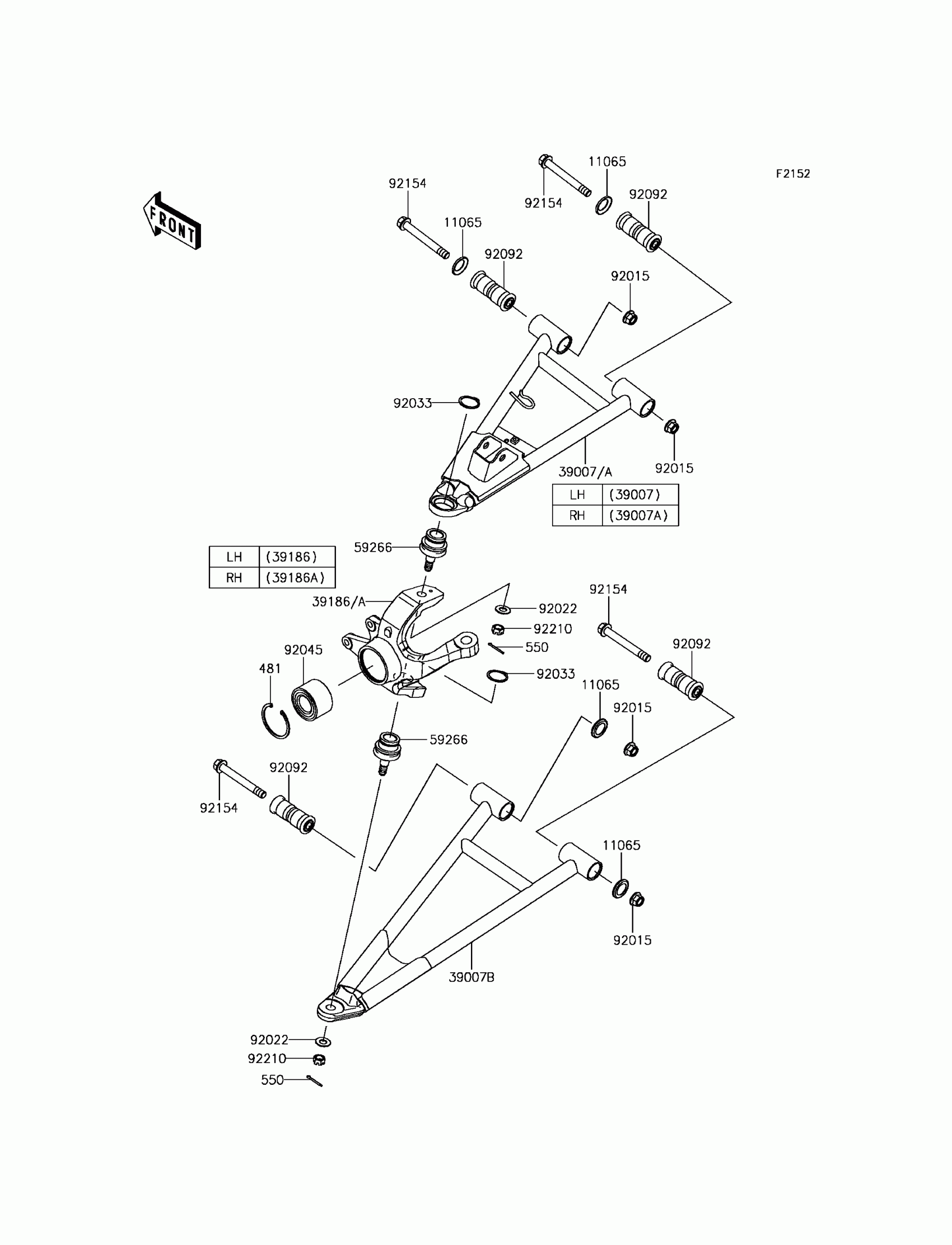

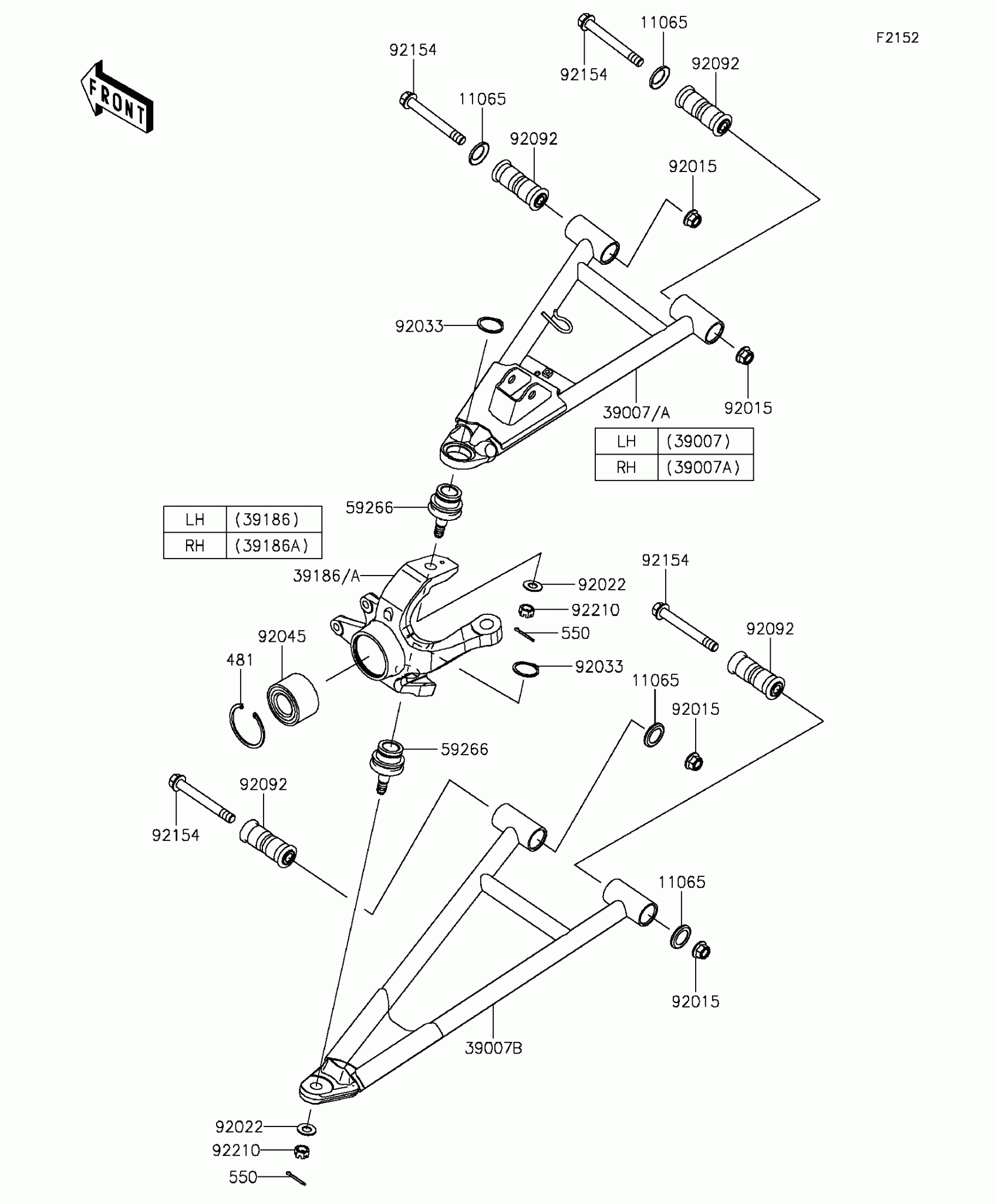

Kawasaki MULE PRO-FX™ EPS LE Front Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.01

39007

ARM-SUSP,FR,UPP,LH

39007-0377

$128.74

39007A

ARM-SUSP,FR,UPP,RH

39007-0378

$128.74

39007B

ARM-SUSP,FR,LWR,LH&RH

39007-0383

$123.34

39186

KNUCKLE,FR,LH

39186-0319

$180.73

39186A

KNUCKLE,FR,RH

39186-0320

$180.73

481

CIRCLIP-TYPE-C

481J6000

$2.75

550

PIN-COTTER,3.0X25

550AA3025

$0.59

59266

JOINT-BALL

59266-0711

$85.37

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER

92022-1831

$4.18

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92045

BEARING-BALL,30X60X37

92045-0762

$64.39

92092

BUSHING-RUBBER,12X20X78

92092-0028

$17.58

92154

BOLT,FLANGED,12X100

92154-1318

$6.45

92210

NUT,CASTLE,12MM

92210-0395

$3.01
