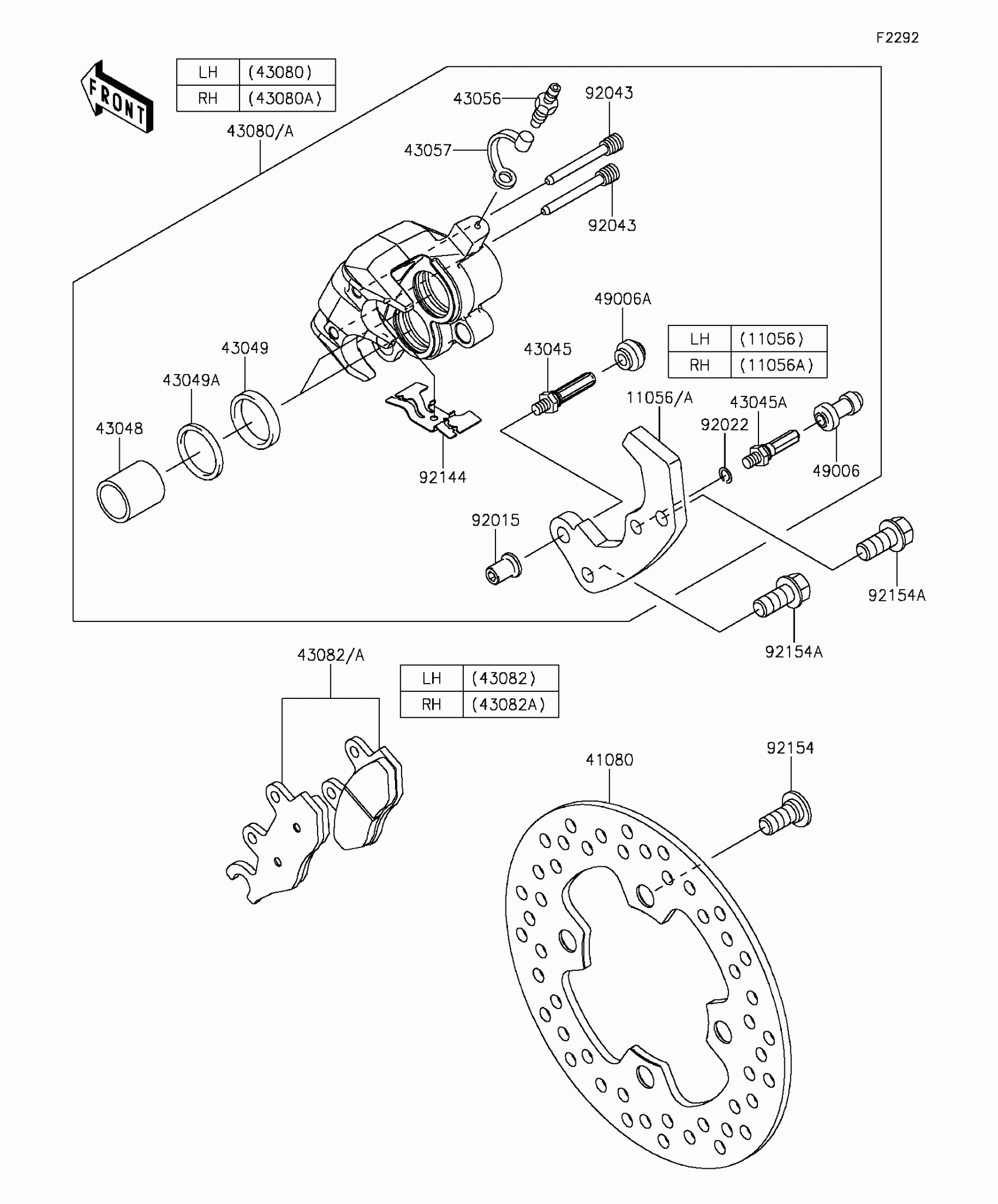

Kawasaki MULE PRO-FX™ EPS LE Front Brake Diagram

Description

Price

11056

BRACKET,LH

11056-3807

$62.52

11056A

BRACKET,RH

11056-3829

$62.52

41080

DISC

41080-0608

$54.17

43045

SHAFT-CALIPER

43045-0011

$19.49

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,LH

43080-0138

$355.02

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0139

$355.02

43082

PAD-ASSY-BRAKE,FR,LH

43082-0138

Unavailable

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0146

$41.89

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92015

NUT

92015-1740

$5.46

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,10X23

92154-0713

$3.13

92154A

BOLT,FLANGED,10X22

92154-1327

$1.95
