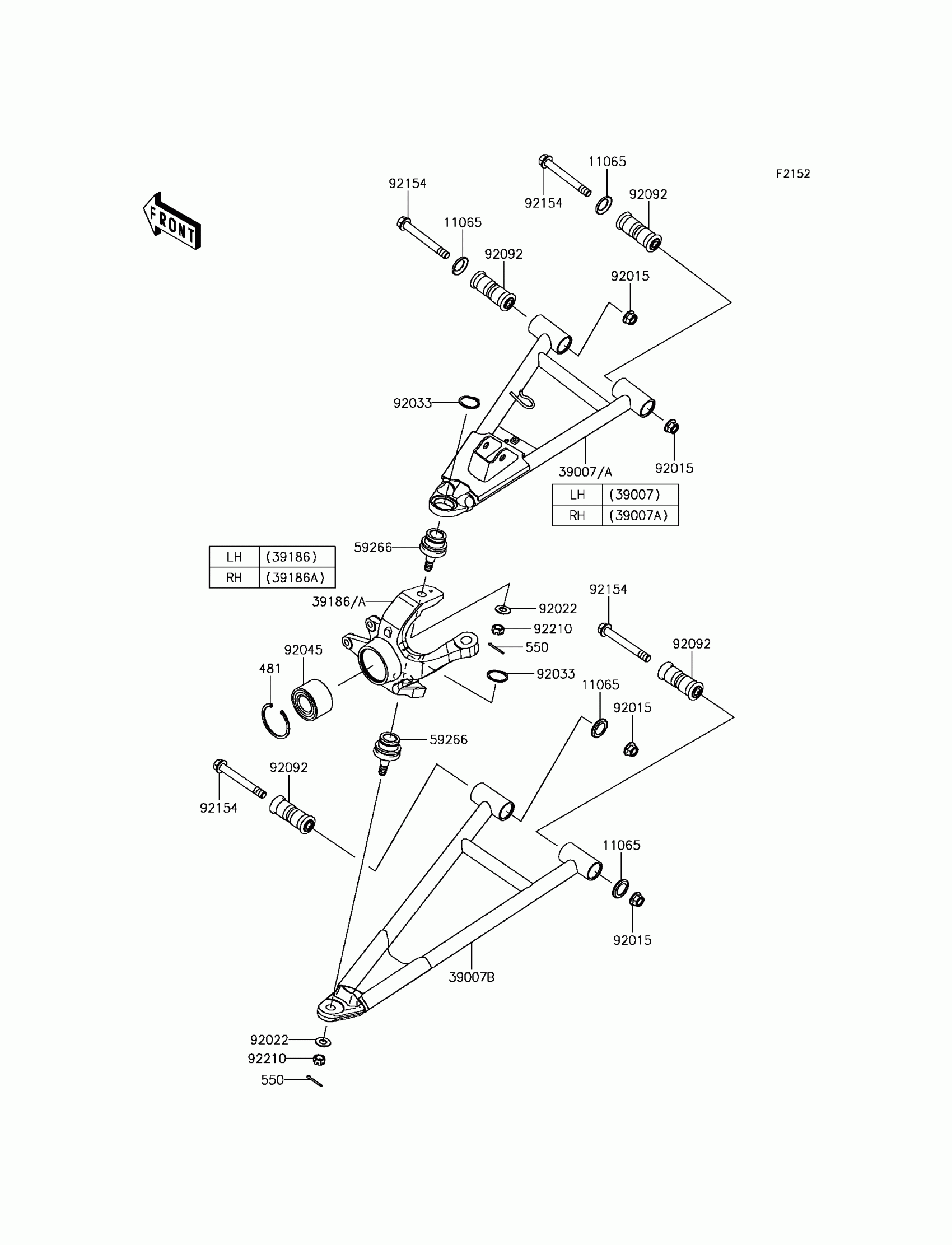

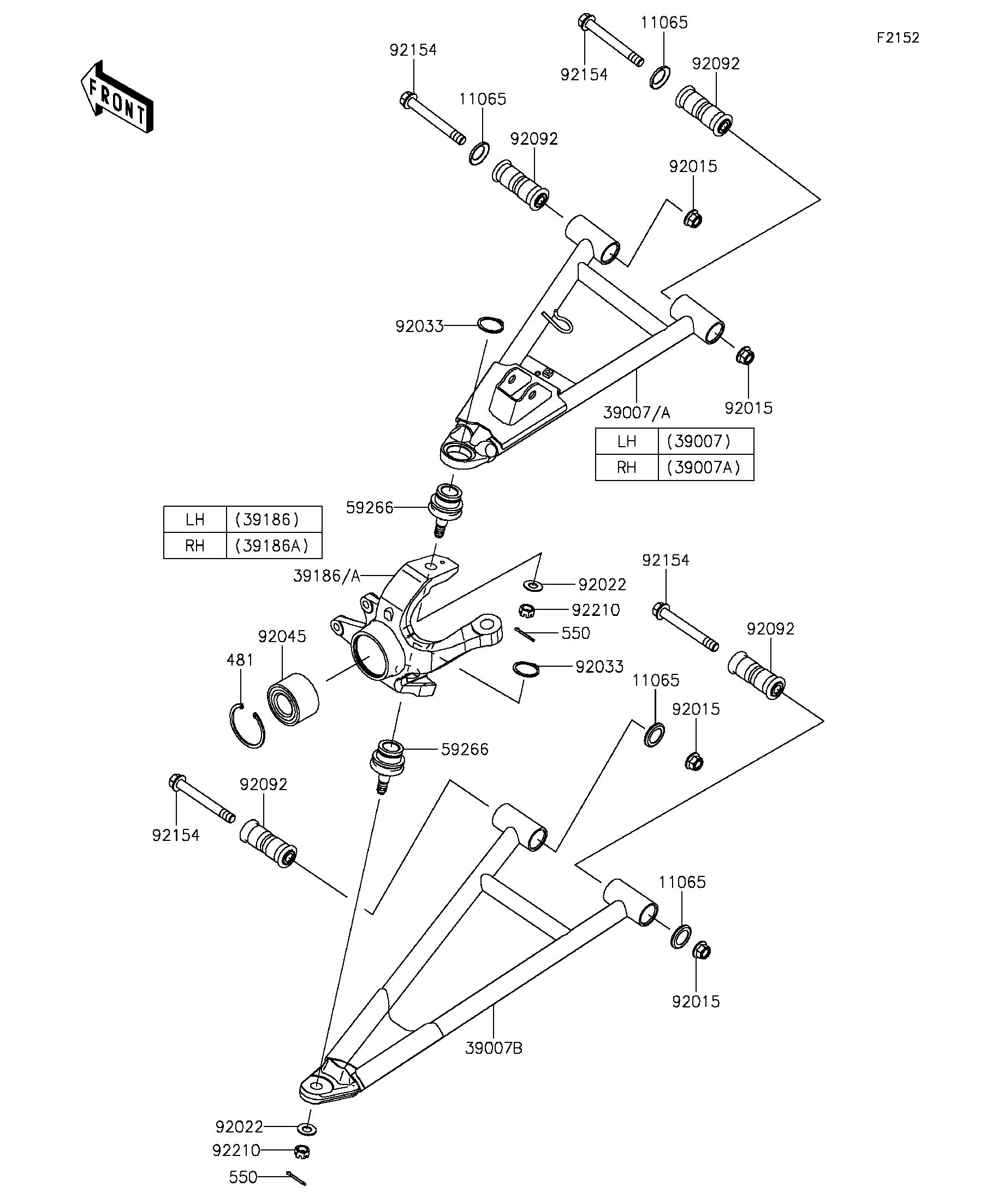

Kawasaki MULE PRO-FX™ EPS Front Suspension Diagram

#

Description

Price

11065

CAP,ARM

11065-0838

Unavailable

39007

ARM-SUSP,FR,UPP,LH

39007-0377

Unavailable

39007A

ARM-SUSP,FR,UPP,RH

39007-0378

Unavailable

39007B

ARM-SUSP,FR,LWR,LH&RH

39007-0383

Unavailable

39186

KNUCKLE,FR,LH

39186-0319

Unavailable

39186A

KNUCKLE,FR,RH

39186-0320

Unavailable

481

CIRCLIP-TYPE-C

481J6000

Unavailable

550

PIN-COTTER,3.0X25

550AA3025

Unavailable

59266

JOINT-BALL

59266-0711

Unavailable

92015

NUT,LOCK,FLANGED,12MM

92015-1433

Unavailable

92022

WASHER

92022-1831

Unavailable

92033

RING-SNAP,C-TYPE,32MM

92033-1262

Unavailable

92045

BEARING-BALL,30X60X37

92045-0762

Unavailable

92092

BUSHING-RUBBER,12X20X78

92092-0028

Unavailable

92154

BOLT,FLANGED,12X100

92154-1318

Unavailable

92210

NUT,CASTLE,12MM

92210-0395

Unavailable
