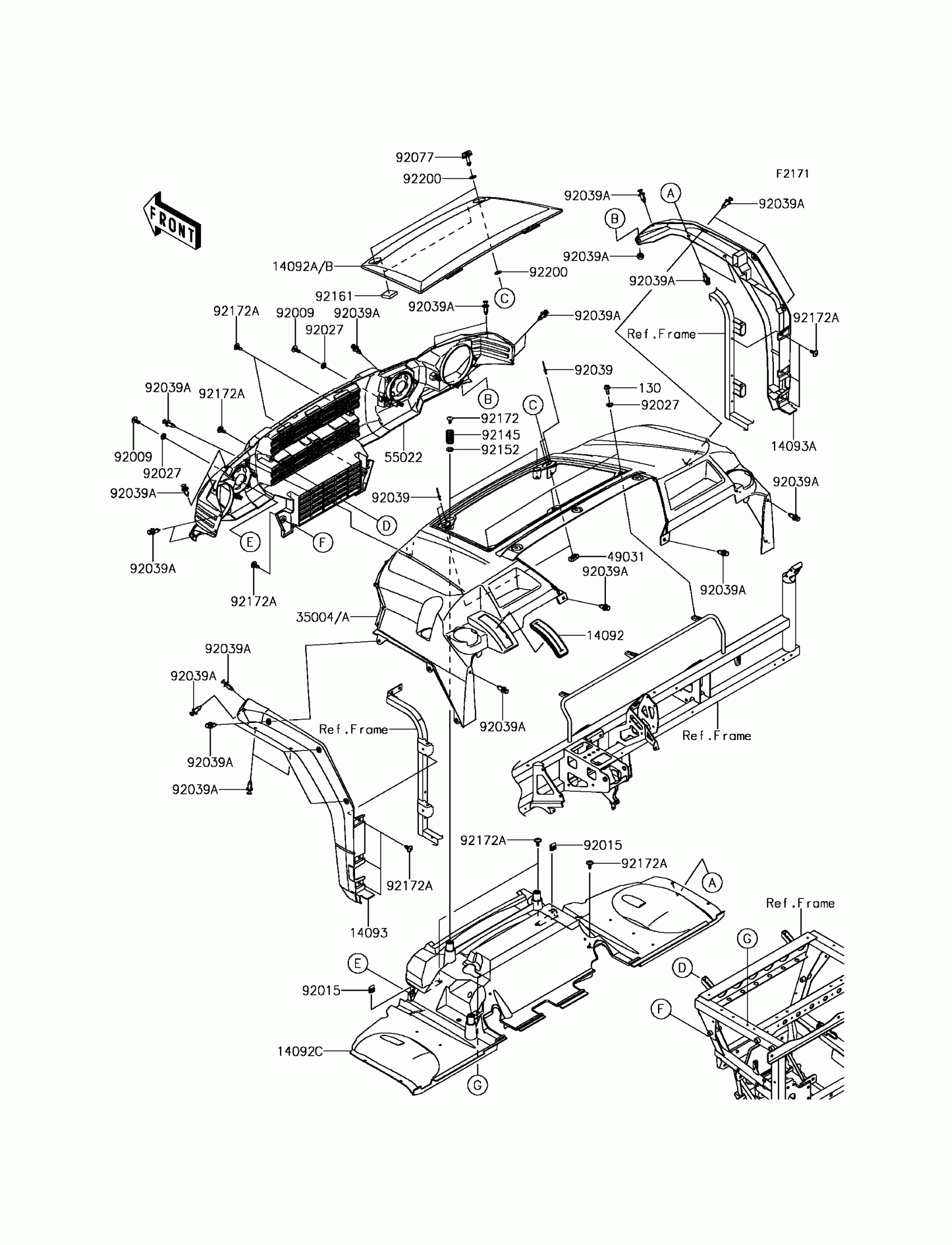

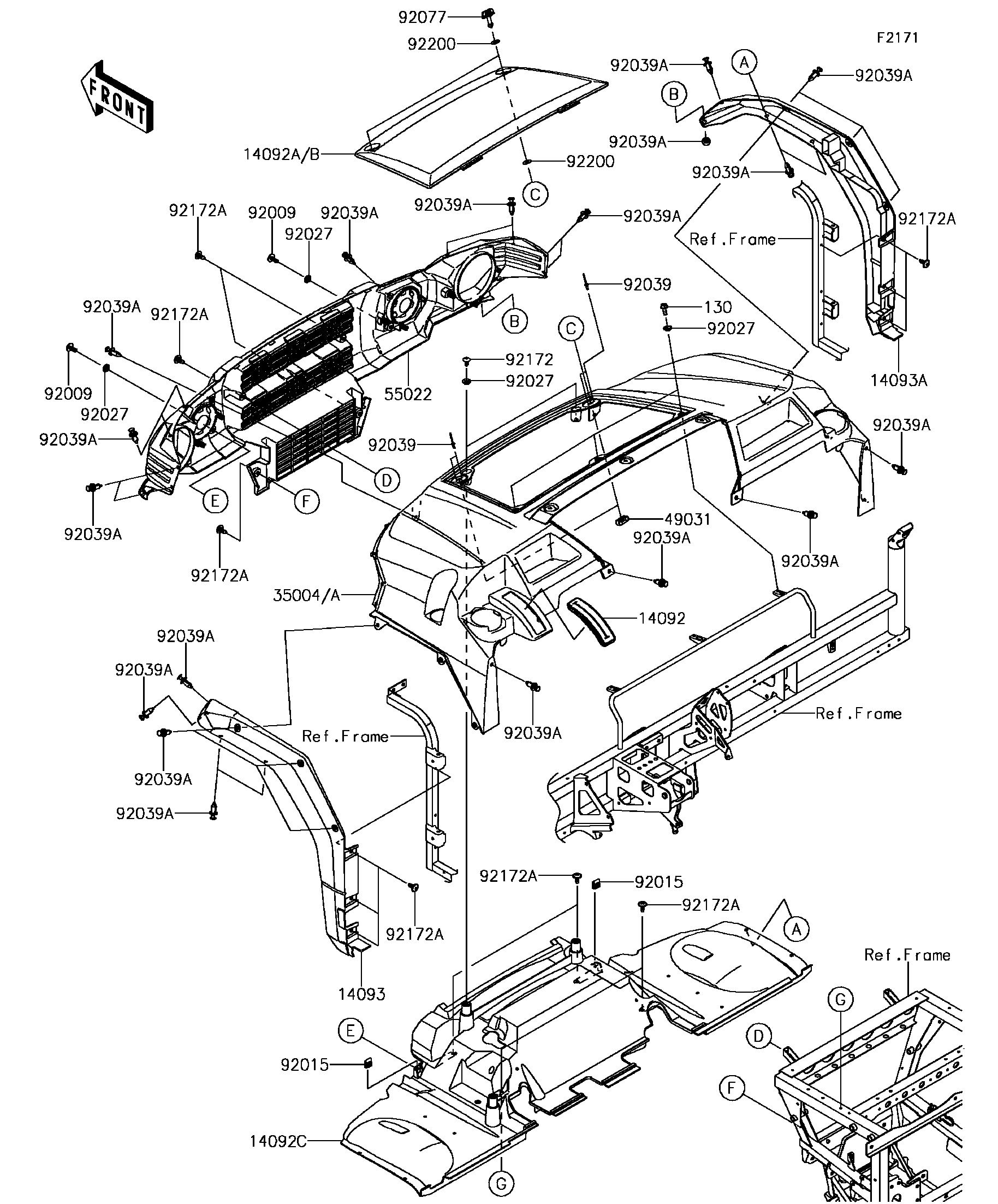

Kawasaki MULE PRO-FX™ EPS Front Fender(s) Diagram

#

Description

Price

130

BOLT-FLANGED,6X16

130CA0616

Unavailable

14092

COVER,CENTER CONSOLE,TOP

14092-0791

Unavailable

14092A

COVER,OPEN,T.GREEN

14092-1177-42S

Unavailable

14092B

COVER,OPEN,S.BLACK

14092-1177-839

Unavailable

14092C

COVER,TOP,FR INNER

14092-1194

Unavailable

14093

COVER,SIDE,LH

14093-0596

Unavailable

14093A

COVER,SIDE,RH

14093-0597

Unavailable

35004

FENDER-FRONT,T.GREEN

35004-0335-42S

Unavailable

35004A

FENDER-FRONT,S.BLACK

35004-0335-839

Unavailable

49031

LATCH

49031-0008

Unavailable

55022

COVER-HEAD LAMP

55022-0304

Unavailable

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

Unavailable

92027

COLLAR,L=4.6

92027-1168

Unavailable

92039

RIVET,3.2X9.8

92039-0013

Unavailable

92039A

RIVET

92039-1229

Unavailable

92077

KNOB

92077-0030

Unavailable

92172

SCREW,6X16

92172-0284

Unavailable

92172A

SCREW,6X16

92172-0711

Unavailable

92200

WASHER

92200-0503

Unavailable
