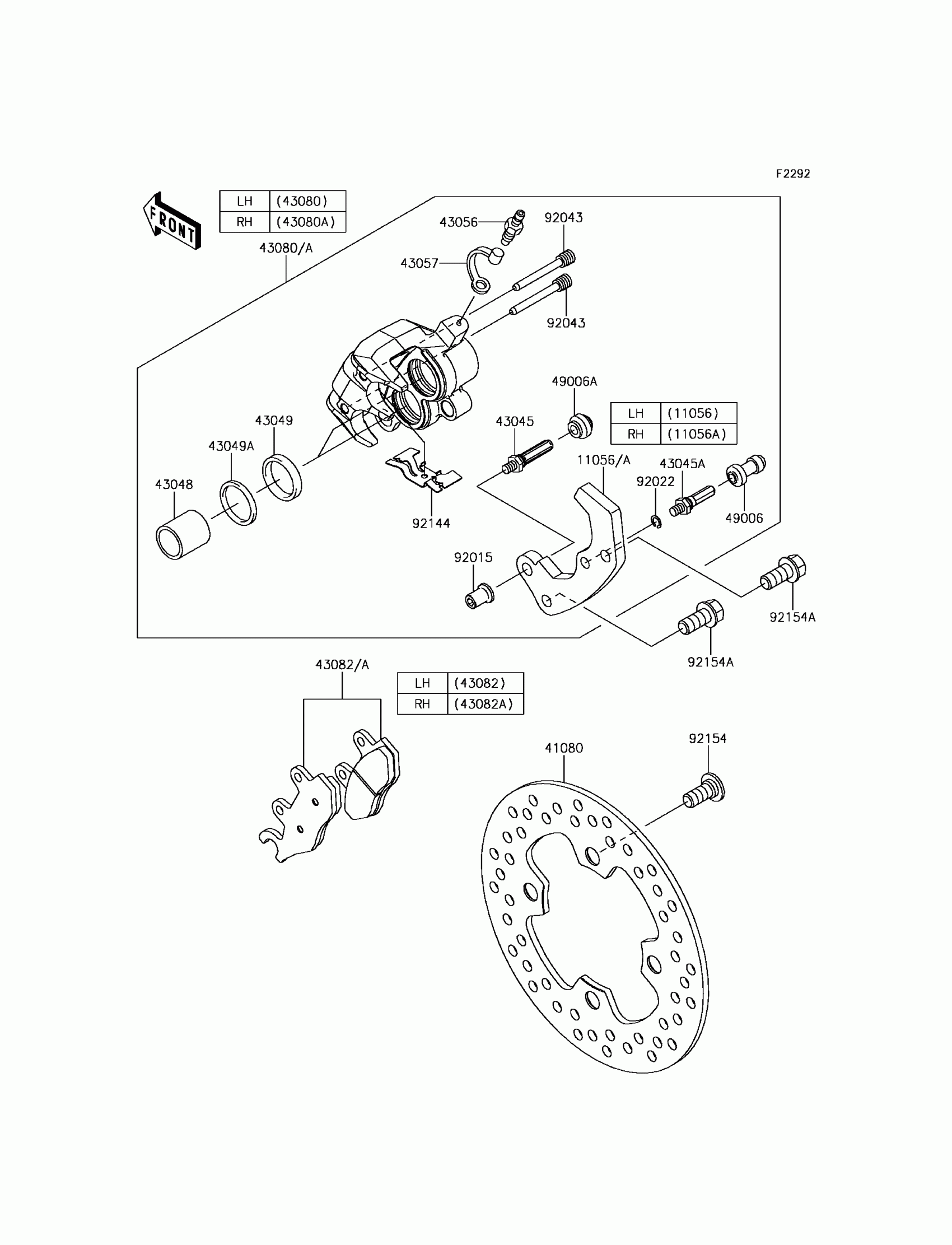

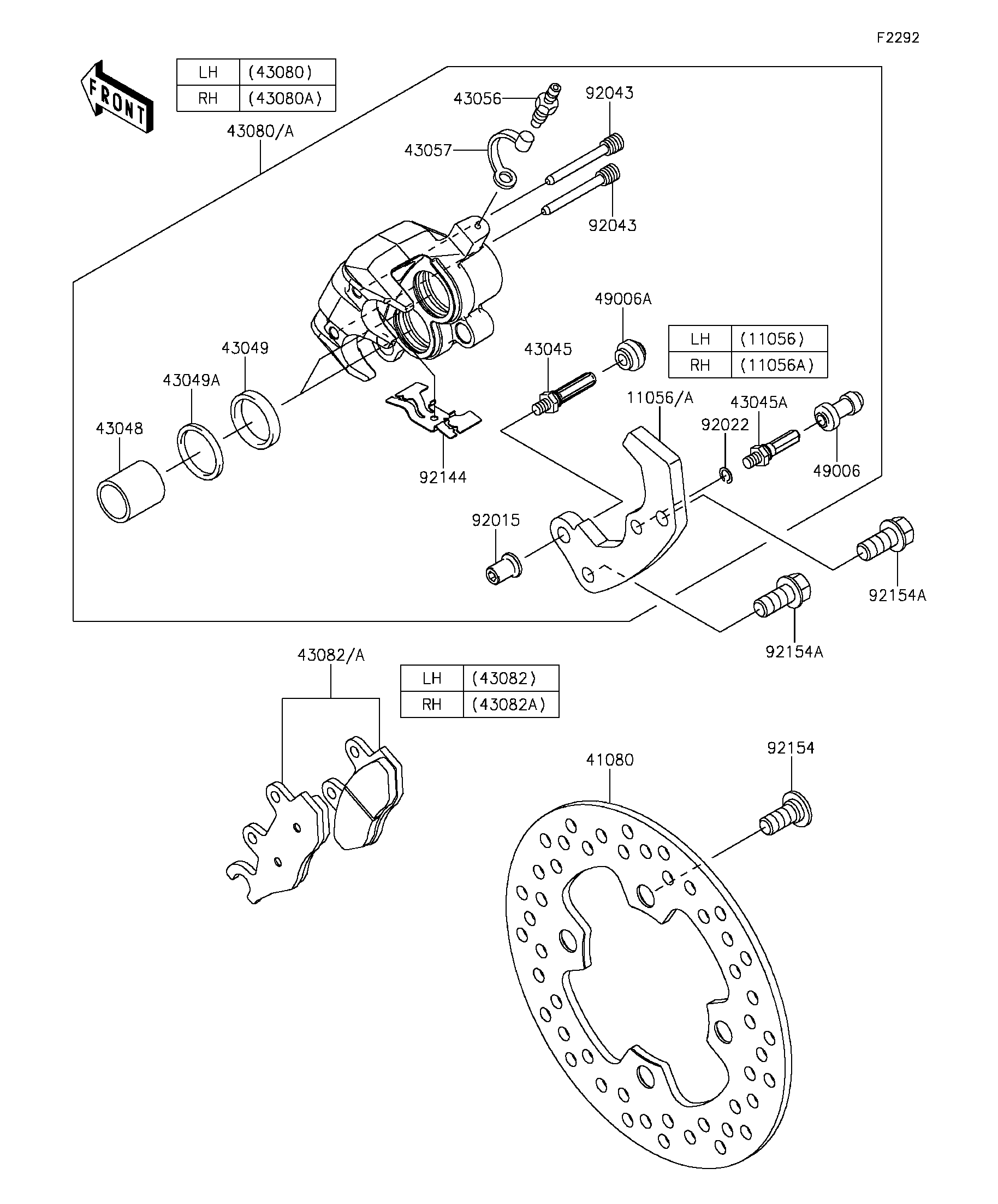

Kawasaki MULE PRO-FX™ EPS Front Brake Diagram

#

Description

Price

11056

BRACKET,LH

11056-3807

Unavailable

11056A

BRACKET,RH

11056-3829

Unavailable

41080

DISC

41080-0608

Unavailable

43045

SHAFT-CALIPER

43045-0011

Unavailable

43045A

SHAFT-CALIPER

43045-1010

Unavailable

43048

PISTON-CALIPER

43048-1068

Unavailable

43049

PACKING,PISTON SEAL

43049-1060

Unavailable

43049A

PACKING,PISTON SEAL

43049-1061

Unavailable

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

Unavailable

43080

CALIPER-SUB-ASSY,FR,LH

43080-0138

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0139

Unavailable

43082

PAD-ASSY-BRAKE,FR,LH

43082-0138

Unavailable

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0146

Unavailable

49006

BOOT,CALIPER

49006-1088

Unavailable

49006A

BOOT,CALIPER

49006-1242

Unavailable

92015

NUT

92015-1740

Unavailable

92022

WASHER,WAVE

92022-1373

Unavailable

92043

PIN,HANGER

92043-1416

Unavailable

92144

SPRING,PAD

92144-1847

Unavailable

92154

BOLT,SOCKET,10X23

92154-0713

Unavailable

92154A

BOLT,FLANGED,10X22

92154-1327

Unavailable
