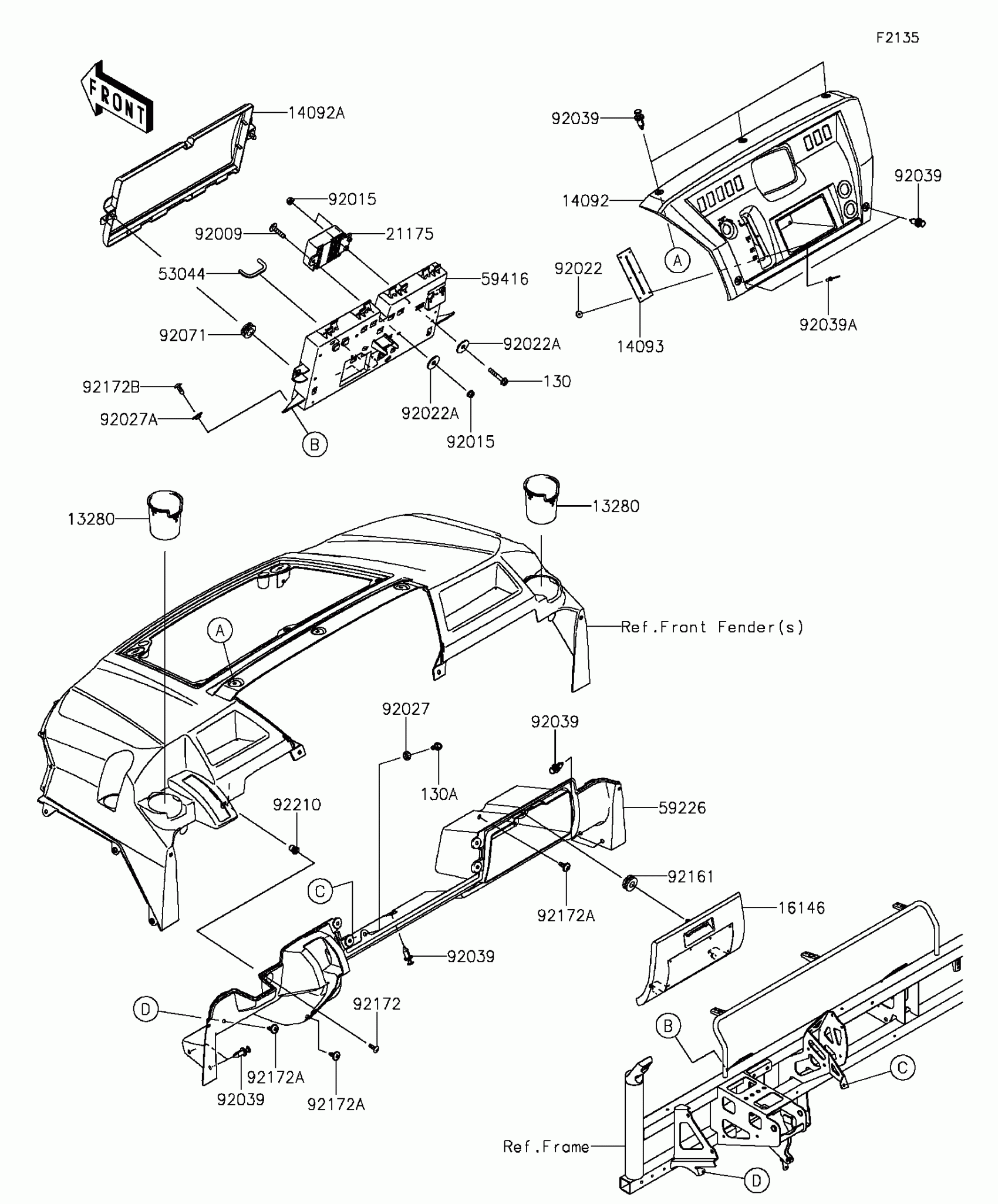

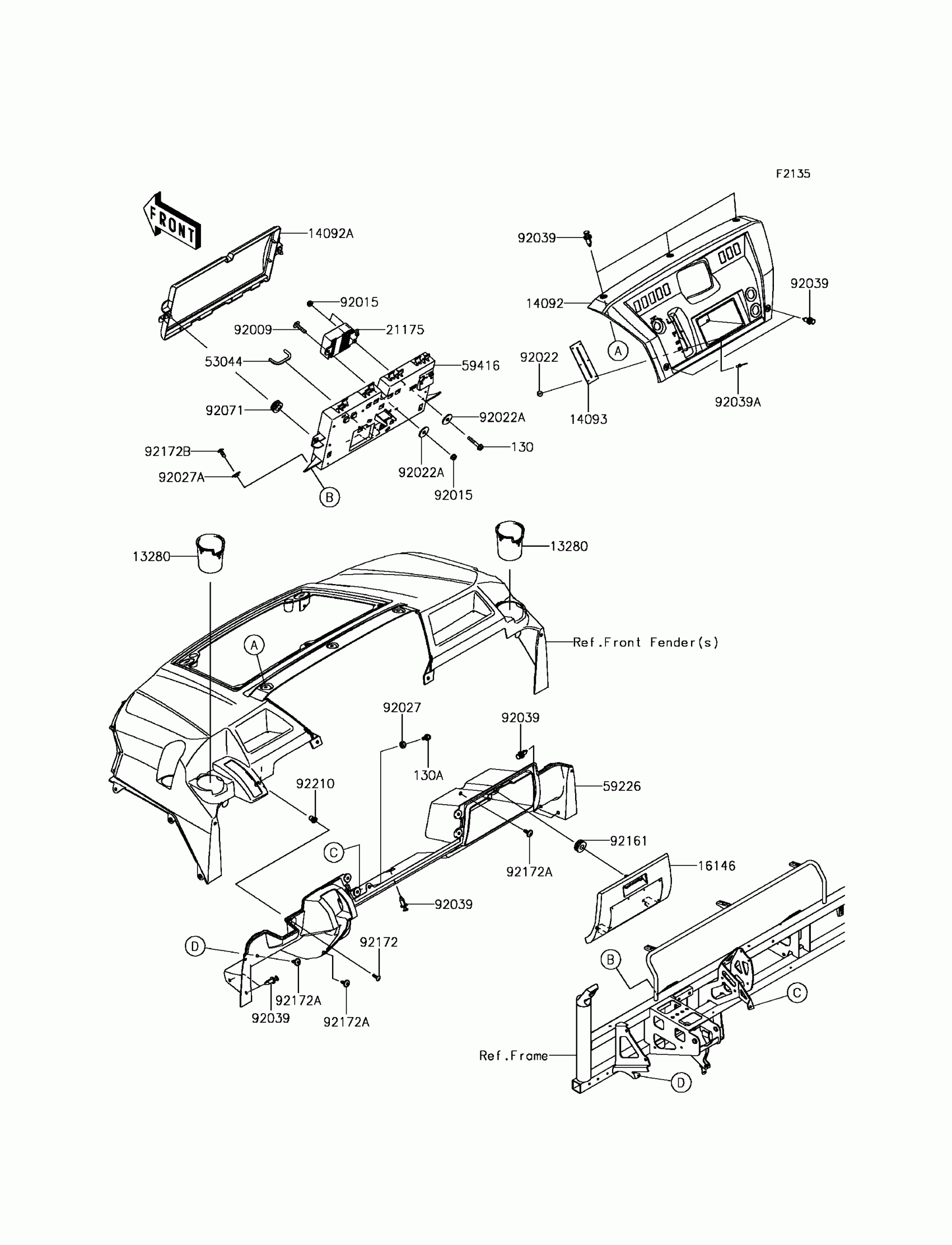

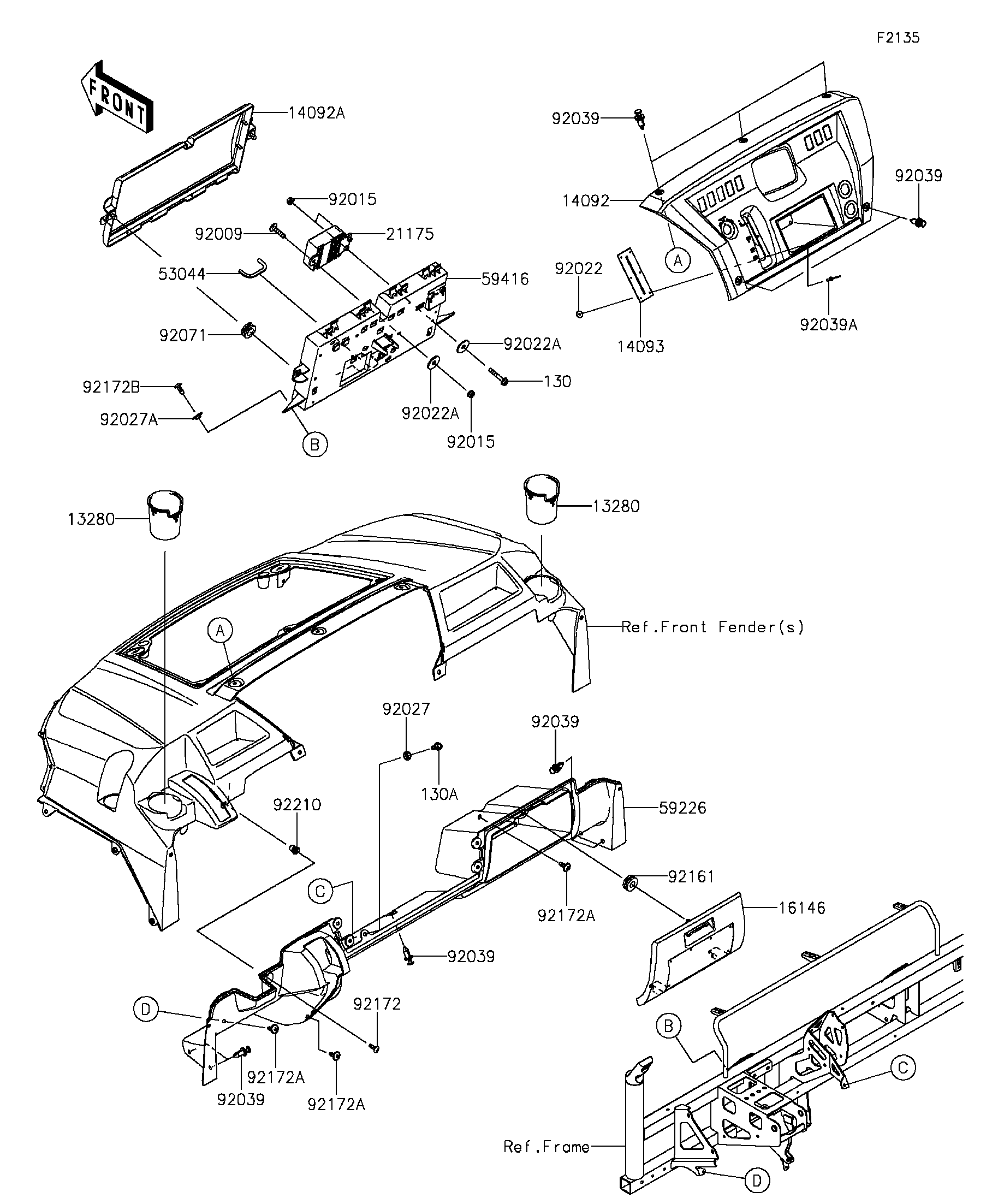

Kawasaki MULE PRO-FX™ EPS Front Box Diagram

#

Description

Price

130

BOLT-FLANGED,6X35

130BA0635

Unavailable

130A

BOLT-FLANGED,6X16

130CA0616

Unavailable

13280

HOLDER,CUP

13280-0774

Unavailable

14092

COVER,DASHBOARD

14092-1192

Unavailable

14092A

COVER,ELECTRIC BOX

14092-1197

Unavailable

14093

COVER,SHIFT LEVER

14093-0146

Unavailable

16146

COVER-ASSY,GLOVE BOX

16146-0786

Unavailable

21175

CONTROL UNIT-ELECTRONIC,EPS

21175-0969

Unavailable

53044

TRIM

53044-0572

Unavailable

59226

PANEL-CONTROL

59226-0042

Unavailable

59416

CASE-ELECTRIC

59416-0026

Unavailable

92009

SCREW,6X28,BLACK

92009-1400

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

Unavailable

92022

WASHER,3.3X12X1.2

92022-1407

Unavailable

92022A

WASHER,6.5X22X1.6

92022-237

Unavailable

92027

COLLAR,L=4.6

92027-1168

Unavailable

92027A

COLLAR,L=5.1

92027-1260

Unavailable

92039

RIVET

92039-1229

Unavailable

92039A

RIVET

92039-1231

Unavailable

92071

GROMMET

92071-1131

Unavailable

92161

DAMPER,7.8X26X10

92161-1786

Unavailable

92172

SCREW,5MM

92172-0292

Unavailable

92172A

SCREW,6X16

92172-0711

Unavailable

92172B

SCREW,TAPPING,6X16

92172-0739

Unavailable

92210

NUT,WELL,5MM

92210-0370

Unavailable
