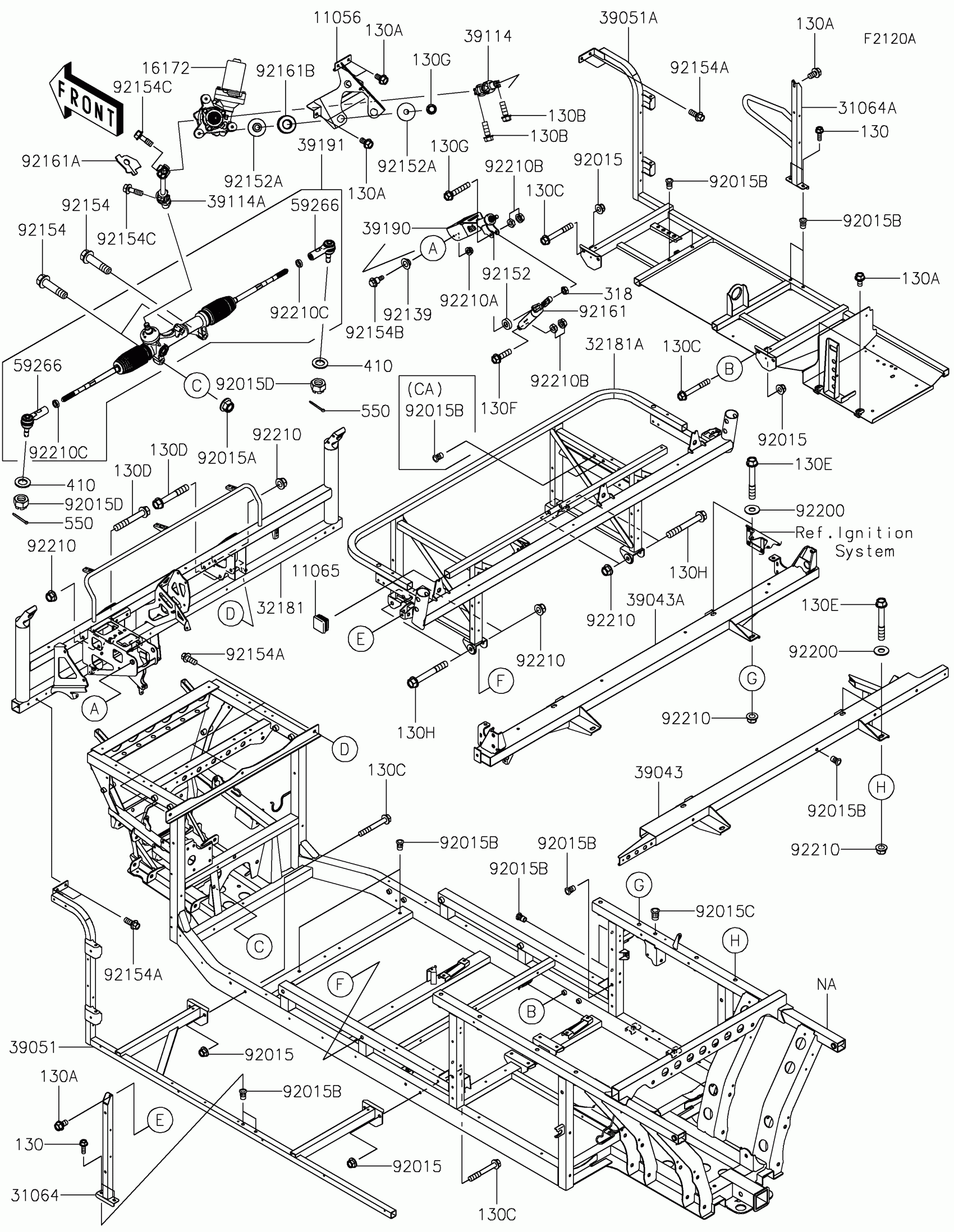

Kawasaki MULE PRO-FX™ EPS Frame(FPFNN/FPFNL) Diagram

#

Description
Price

11056

BRACKET

11056-2838

$61.86

11065

CAP

11065-0901

$2.37

16172

ACTUATOR,EPS

16172-0557

$1,859.76

31064

PIPE-COMP,SEAT SIDE,LH

31064-0706

$41.20

31064A

PIPE-COMP,SEAT SIDE,RH

31064-0707

$56.85

32181

FRAME-SUB-COMP,DASH PANEL

32181-0011

$775.21

32181A

FRAME-SUB-COMP,SEAT

32181-0012

$775.21

39043

CROSSMEMBER-COMP,RR CROSS

39043-0020

$483.71

39043A

CROSSMEMBER-COMP,C-PILLAR

39043-0026

$483.70

39051

FRAME-COMP-SIDE,LH

39051-0012

$327.32

39051A

FRAME-COMP-SIDE,RH

39051-0014

$626.53

39114

SHAFT-COMP-STRG

39114-0019

$97.99

39114A

SHAFT-COMP-STRG

39114-0045

$161.85

39190

SHAFT-ASSY-STEERING

39190-0006

$206.86

39191

GEAR-ASSY-STEERING

39191-0039

$1,033.52

59266

JOINT-BALL

59266-0771

$88.38

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015C

NUT,POP,8MM,L=16.5

92015-1793

$3.81

92015D

NUT,CASTLE,14MM

92015-1841

$6.39

92139

BUSHING

92139-0230

$4.10

92152

COLLAR,8.2X18X5

92152-1848

$4.98

92152A

COLLAR,8.5X30X10.6

92152-2149

$4.44

92154

BOLT,FLANGED,12X50

92154-1008

$5.99

92154A

BOLT,FLANGED,8X20

92154-1226

$0.85

92154B

BOLT,6X21.5

92154-1320

$2.05

92154C

BOLT

92154-4224

$3.04

92161

DAMPER,GAS SPRING

92161-1825

$45.35

92161A

DAMPER

92161-2492

$2.22

92161B

DAMPER,ACTUATOR

92161-7517

$2.66

92200

WASHER,10.5X25X1.6

92200-1595

$4.65

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210B

NUT,HARD LOCK,8MM

92210-0934

$4.34

92210C

NUT

92210-1933

$15.42

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X14

130BA0814

$1.54

130B

BOLT-FLANGED,8X25

130BA0825

$2.01

130C

BOLT-FLANGED,8X60

130BA0860

$1.24

130D

BOLT-FLANGED,10X65

130BA1065

$2.17

130E

BOLT-FLANGED,10X70

130BA1070

$2.25

130F

BOLT-FLANGED,8X30

130CA0830

$0.86

130G

BOLT-FLANGED,8X45

130CA0845

$0.95

130H

BOLT-FLANGED,10X75

130CA1075

$3.85

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

550

PIN-COTTER,3.0X25

550AA3025

$0.59
