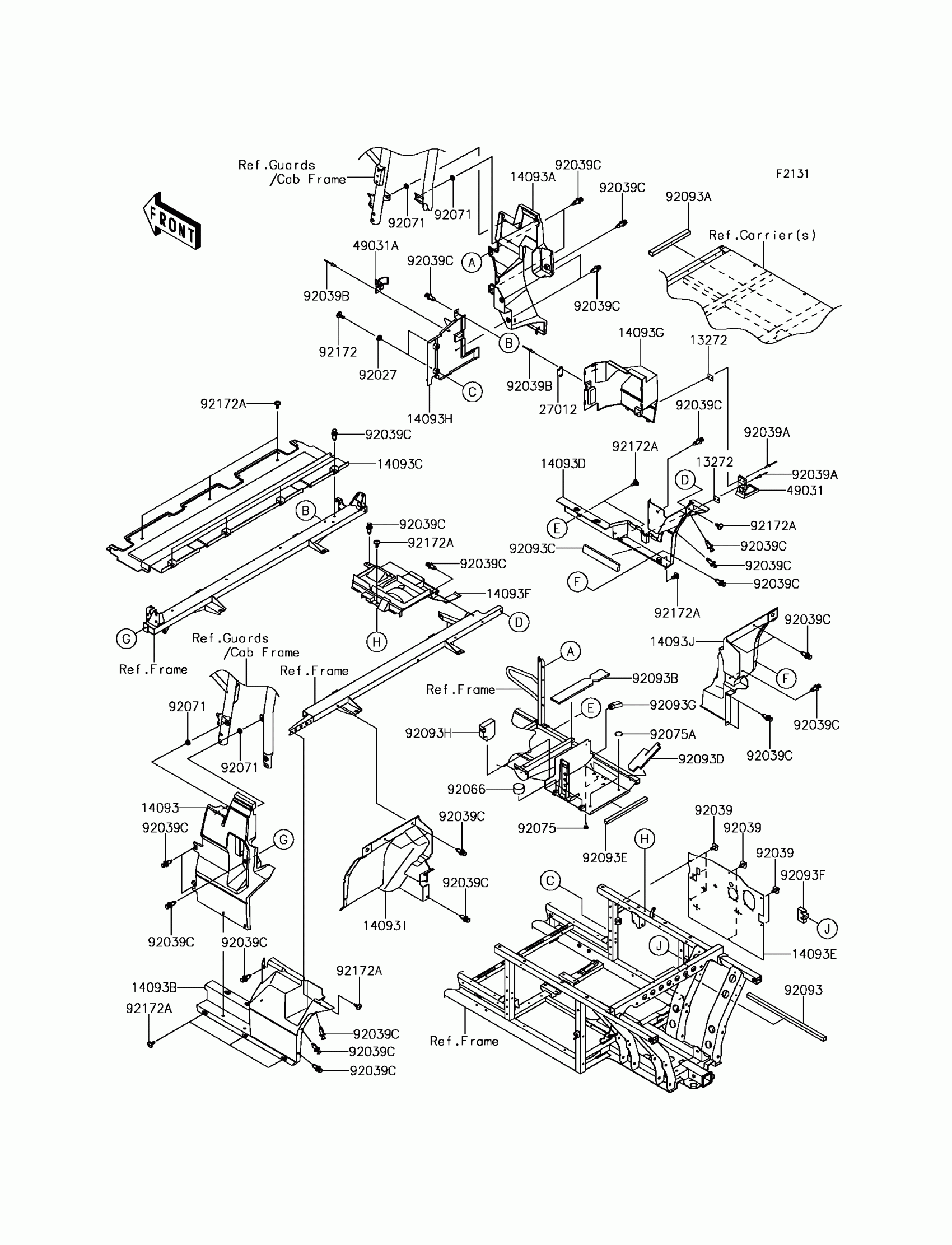

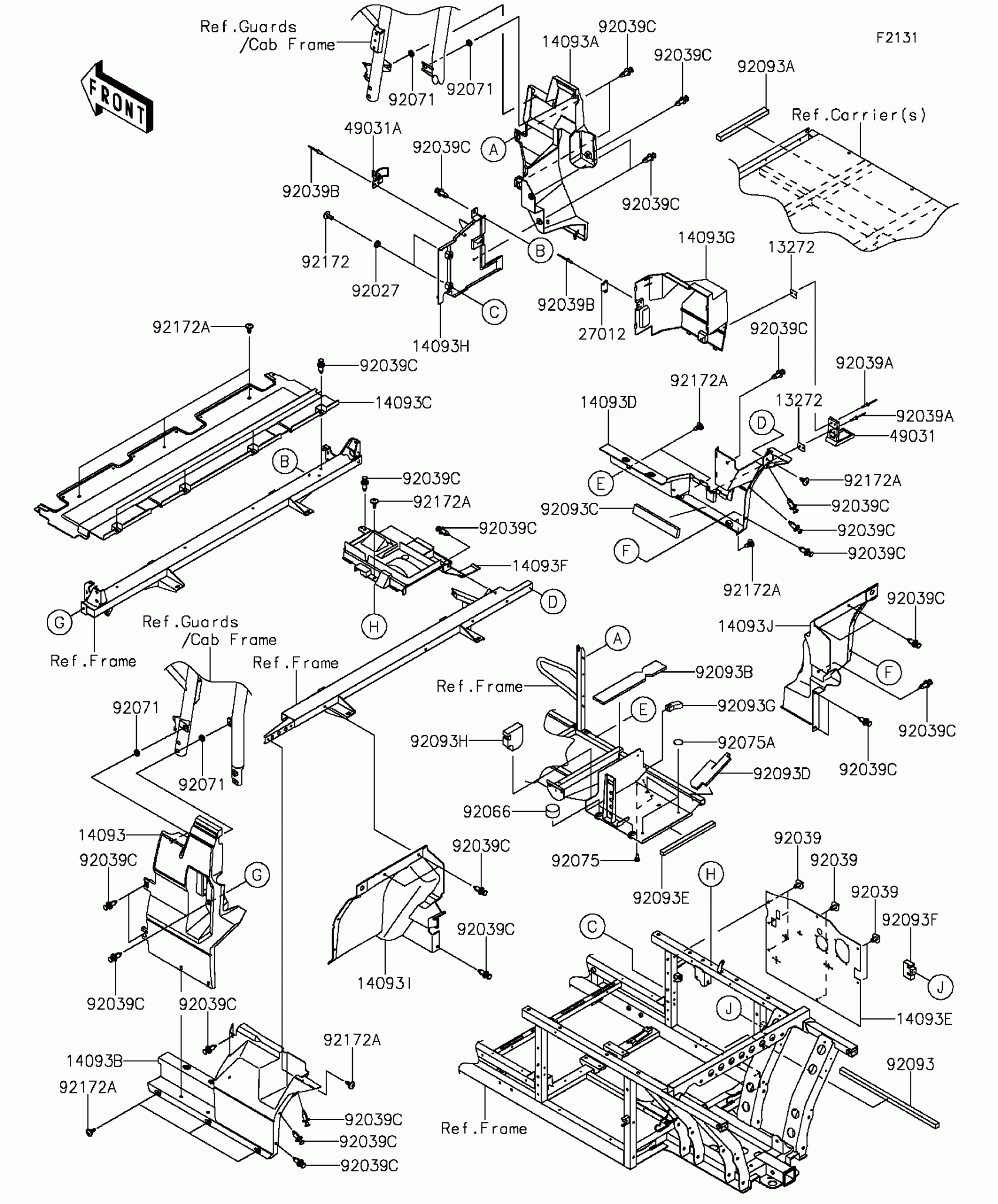

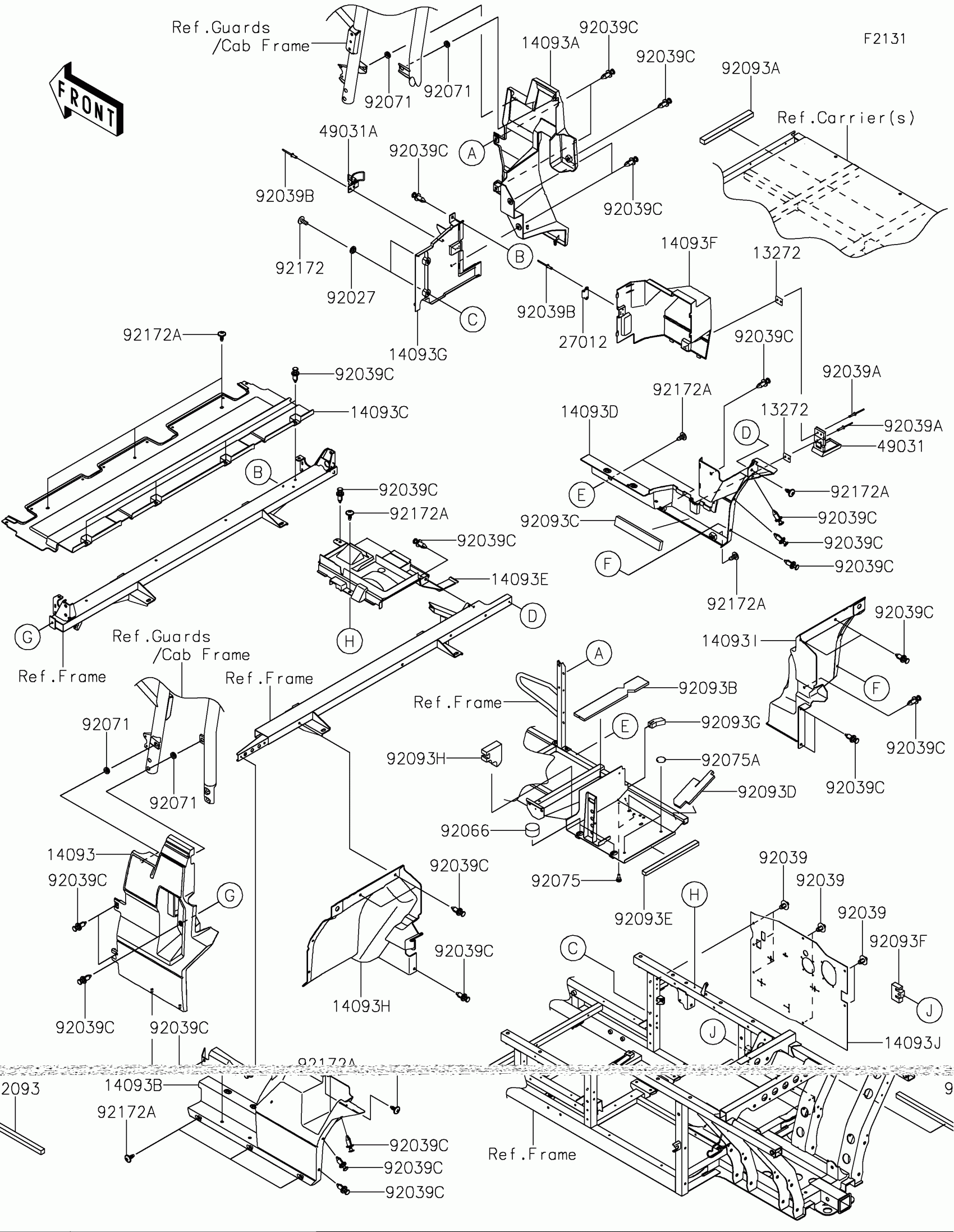

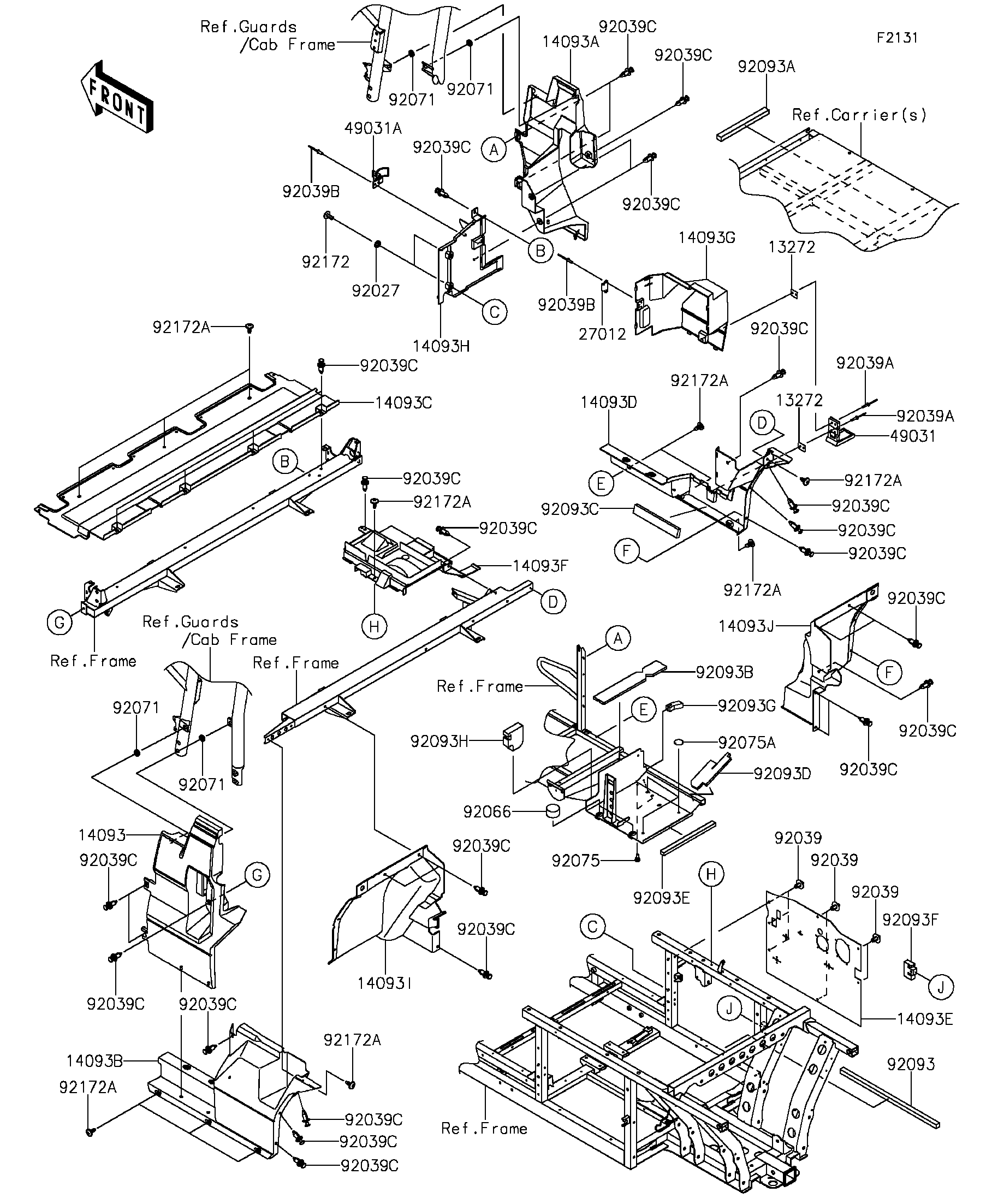

Kawasaki MULE PRO-FX™ EPS Frame Fittings(Rear) Diagram

#

Description

Price

13272

PLATE,LATCH

13272-1828

Unavailable

14093

COVER,SIDE,LH,FR,F.BLACK

14093-0167-6Z

Unavailable

14093A

COVER,SIDE,RH,FR,F.BLACK

14093-0168-6Z

Unavailable

14093B

COVER,SIDE,LH,RR

14093-0169

Unavailable

14093C

COVER,SEAT,BACK

14093-0171

Unavailable

14093D

COVER,SIDE,RH,RR

14093-0173

Unavailable

14093E

COVER,DUST,A/C BOX

14093-0257

Unavailable

14093F

COVER,DUST

14093-0311

Unavailable

14093G

COVER,SIDE,RH,A/C MAINT.

14093-0371

Unavailable

14093H

COVER,SIDE,RH,A/C,FR

14093-0372

Unavailable

14093I

COVER,RR,FLOOR,MUD,LH

14093-0388

Unavailable

14093J

COVER,RR,FLOOR,MUD,RH

14093-0389

Unavailable

27012

HOOK,STRIKER

27012-0806

Unavailable

49031

LATCH,A/C

49031-0007

Unavailable

49031A

LATCH,TOGGLE

49031-0015

Unavailable

92027

COLLAR,L=4.6

92027-1168

Unavailable

92039

RIVET

92039-0086

Unavailable

92039A

RIVET,3.2X13.4

92039-0739

Unavailable

92039B

RIVET

92039-0747

Unavailable

92039C

RIVET

92039-1229

Unavailable

92066

PLUG,36X20

92066-0812

Unavailable

92071

GROMMET

92071-056

Unavailable

92075

DAMPER,6X10X15

92075-1808

Unavailable

92075A

DAMPER,RUBBER

92075-261

Unavailable

92093

SEAL,DUST,20X20X565

92093-0631

Unavailable

92093A

SEAL,DUST,20X25X280

92093-0633

Unavailable

92093B

SEAL,DUST,61X368X10

92093-0643

Unavailable

92093C

SEAL,DUST,39X255X15

92093-0644

Unavailable

92093D

SEAL,DUST,69X207X10

92093-0645

Unavailable

92093E

SEAL,DUST,15X305X20

92093-0646

Unavailable

92093F

SEAL,52X72X20

92093-0651

Unavailable

92093G

SEAL,21.5X60X20

92093-0652

Unavailable

92093H

SEAL,GOMSPOR

92093-0667

Unavailable

92172

SCREW,6X16

92172-0236

Unavailable

92172A

SCREW,6X16

92172-0711

Unavailable
