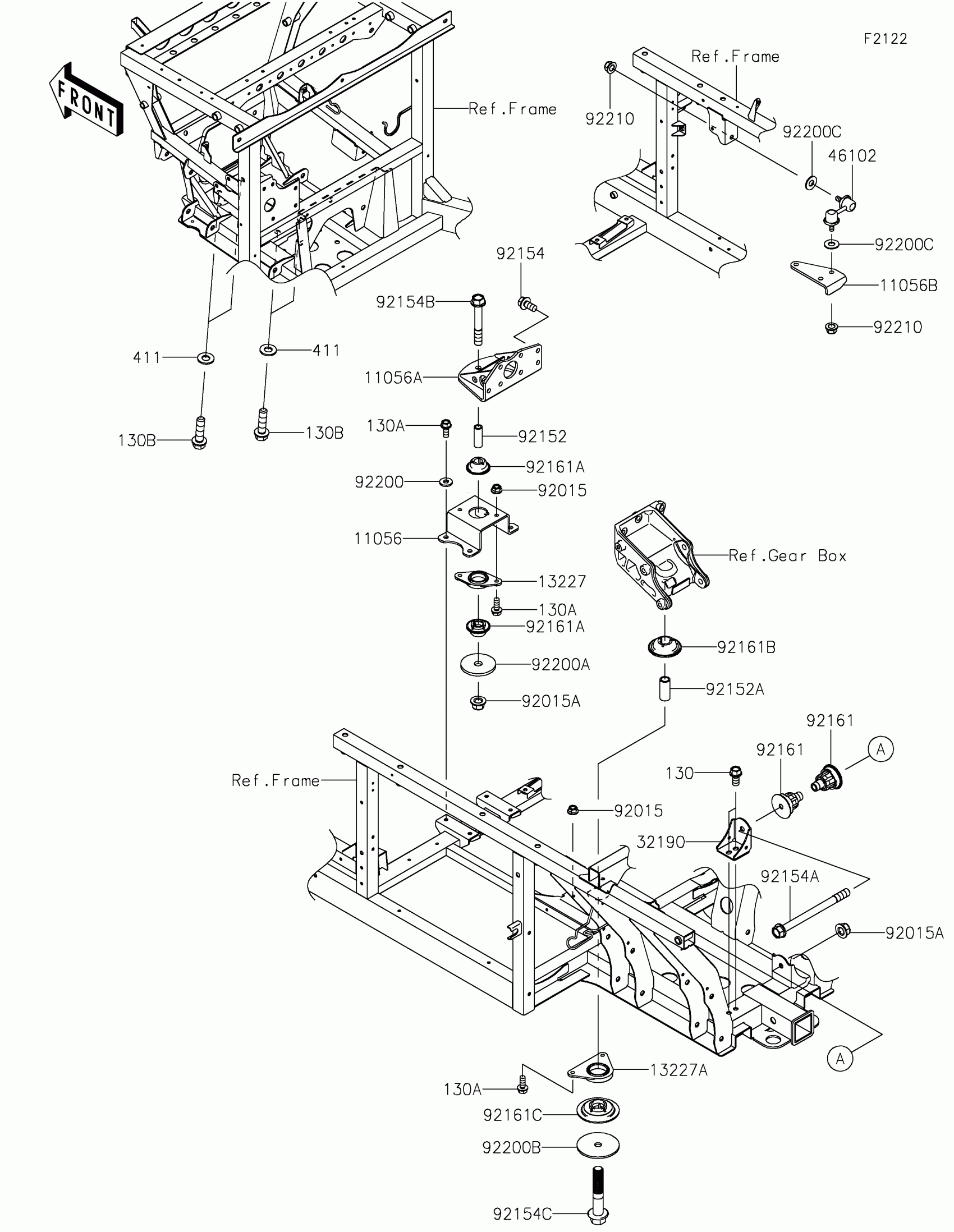

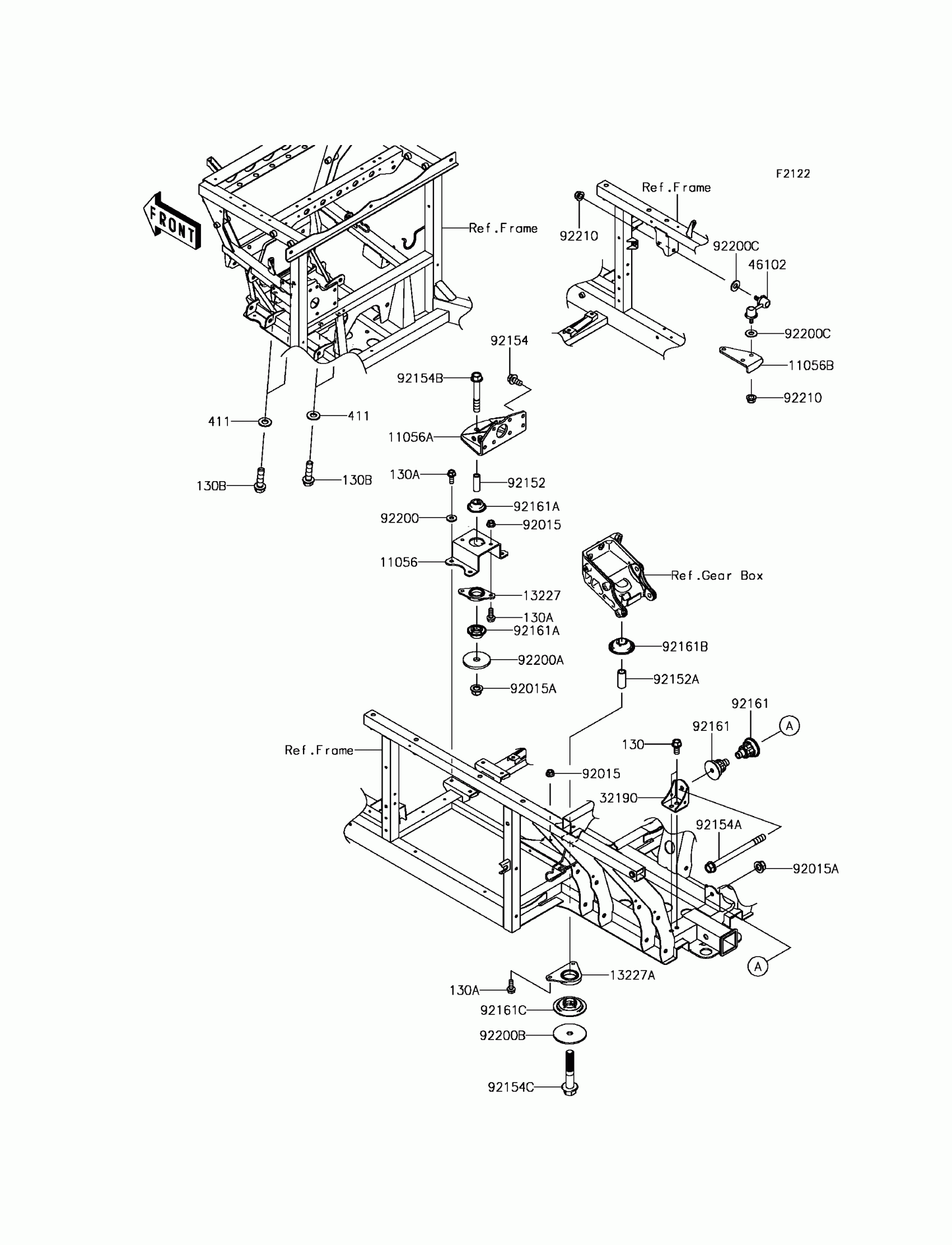

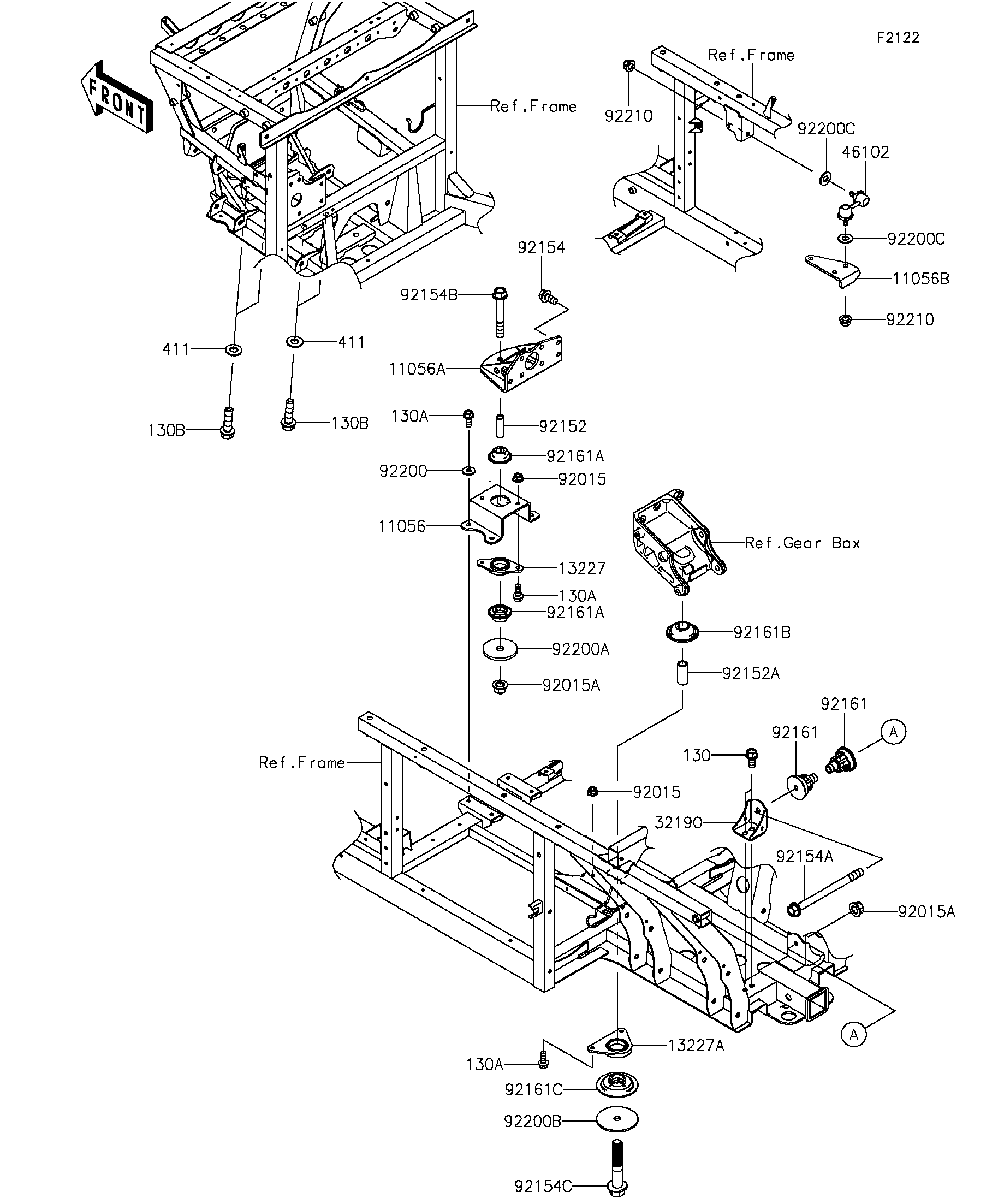

Kawasaki MULE PRO-FX™ EPS Engine Mount Diagram

#

Description

Price

11056

BRACKET

11056-2867

Unavailable

11056A

BRACKET

11056-2868

Unavailable

11056B

BRACKET

11056-2869

Unavailable

130

BOLT-FLANGED,10X20

130BA1020

Unavailable

130A

BOLT-FLANGED,8X20

130CA0820

Unavailable

130B

BOLT-FLANGED,12X45

130CA1245

Unavailable

13227

HOUSING

13227-0031

Unavailable

13227A

HOUSING

13227-0032

Unavailable

32190

BRACKET-ENGINE

32190-0662

Unavailable

411

WASHER-PLAIN,12MM

411AA1200

Unavailable

46102

ROD,STABILIZER,LH

46102-0100

Unavailable

92015

NUT,LOCK,FLANGED,8MM

92015-1397

Unavailable

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

Unavailable

92152

COLLAR,13X19.1X54

92152-1802

Unavailable

92152A

COLLAR,17X23.8X54.5

92152-2127

Unavailable

92154

BOLT,FLANGED,10X20

92154-1321

Unavailable

92154A

BOLT,FLANGED,12X150

92154-1322

Unavailable

92154B

BOLT,FLANGED,12X80

92154-1419

Unavailable

92154C

BOLT,FLANGED,16X86

92154-1763

Unavailable

92161

DAMPER

92161-1616

Unavailable

92161A

DAMPER

92161-1617

Unavailable

92161B

DAMPER

92161-1618

Unavailable

92161C

DAMPER

92161-1619

Unavailable

92200

WASHER,8.2X20.0X2.5

92200-0205

Unavailable

92200A

WASHER,12.5X55X4.76

92200-0913

Unavailable

92200B

WASHER,16.5X100X4.76

92200-1747

Unavailable

92200C

WASHER,10.3X23X1.6

92200-2009

Unavailable

92210

NUT,LOCK,FLANGED,10MM

92210-0276

Unavailable
