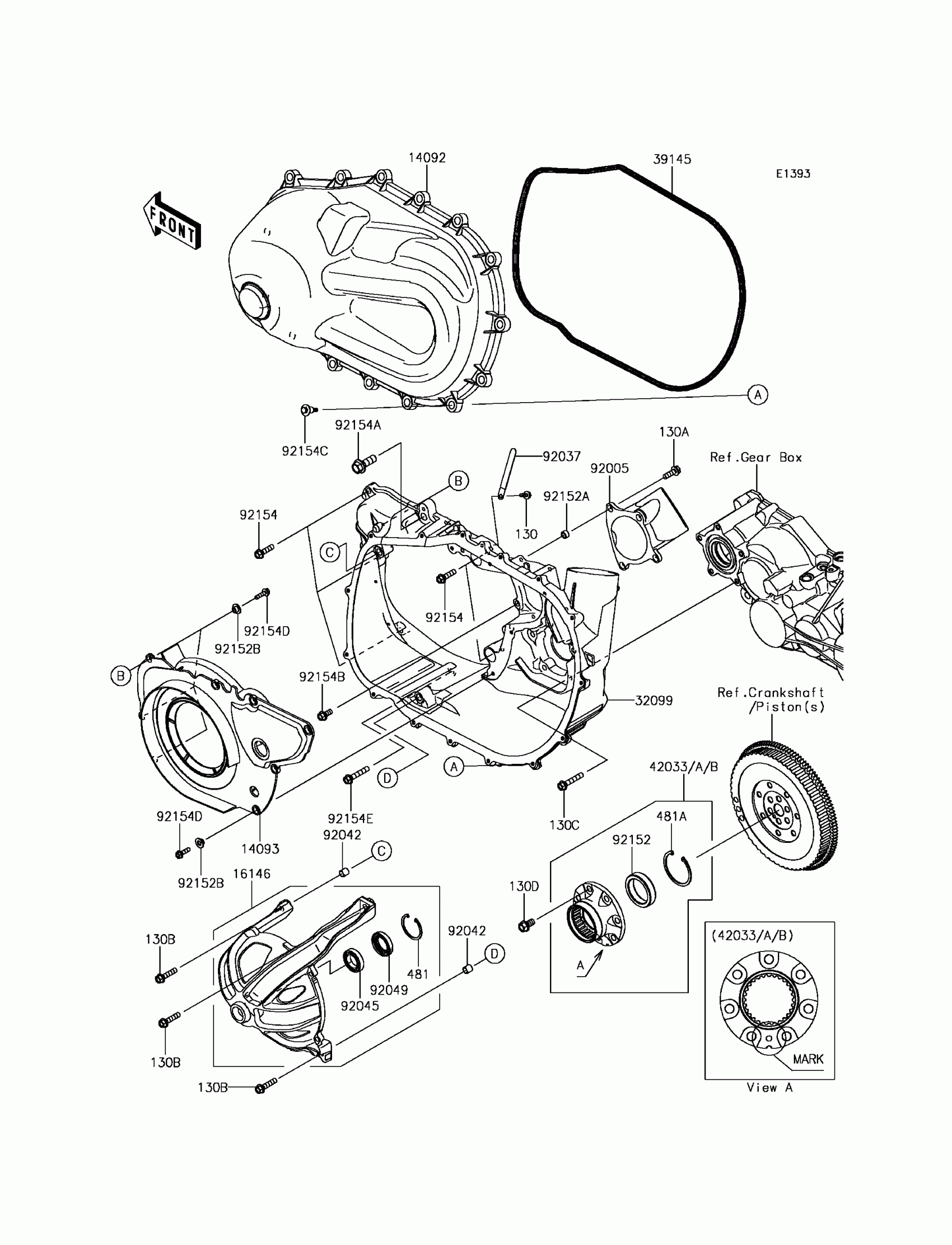

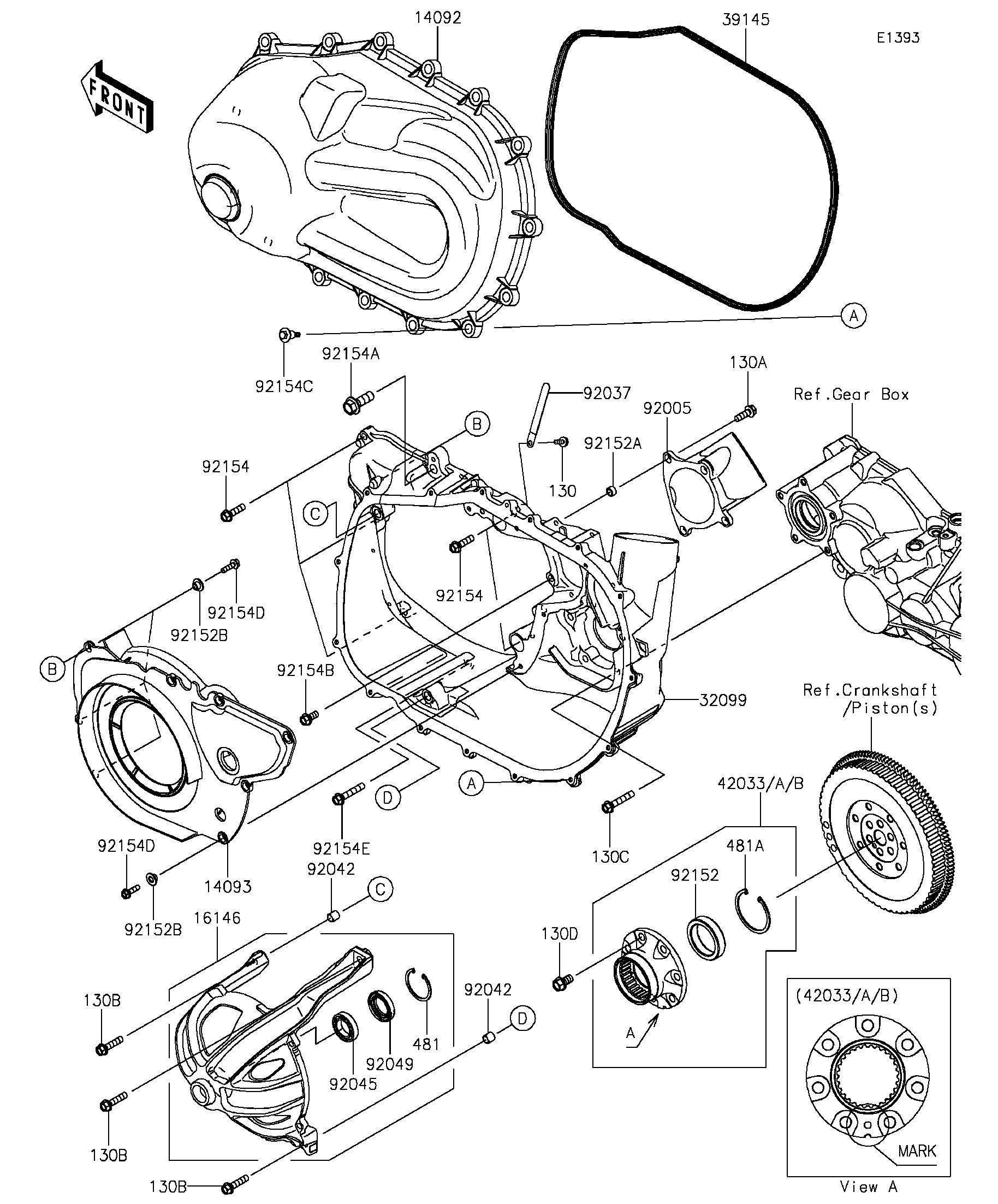

Kawasaki MULE PRO-FX™ EPS Converter Cover Diagram

#

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

Unavailable

130A

BOLT-FLANGED,8X25

130BA0825

Unavailable

130B

BOLT-FLANGED,8X35

130BA0835

Unavailable

130C

BOLT-FLANGED,8X45

130BA0845

Unavailable

130D

BOLT-FLANGED,10X18

130CA1018

Unavailable

14092

COVER,CVT

14092-1202

Unavailable

14093

COVER

14093-0050

Unavailable

16146

COVER-ASSY

16146-0734

Unavailable

32099

CASE,CVT

32099-0746

Unavailable

39145

TRIM-SEAL

39145-0047

Unavailable

42033

COUPLING-ASSY,B MARK,WHITE

42033-0582

Unavailable

42033A

COUPLING-ASSY,A MARK,BLUE

42033-0583

Unavailable

42033B

COUPLING-ASSY,C MARK,YELLOW

42033-0584

Unavailable

481

CIRCLIP,45MM

481J4500

Unavailable

481A

CIRCLIP

481J6200

Unavailable

92005

FITTING,INTAKE

92005-0762

Unavailable

92037

CLAMP

92037-1993

Unavailable

92042

PIN,DOWEL,12X14

92042-031

Unavailable

92045

BEARING-BALL,#6905

92045-036

Unavailable

92049

SEAL-OIL,HTC 28X45X8

92049-0767

Unavailable

92152

COLLAR

92152-1822

Unavailable

92152A

COLLAR,8.8X12.3X6.9

92152-1853

Unavailable

92152B

COLLAR

92152-1931

Unavailable

92154

BOLT,FLANGED,8X30

92154-0850

Unavailable

92154A

BOLT,FLANGED,12X35

92154-1337

Unavailable

92154B

BOLT,FLANGED,8X18

92154-1386

Unavailable

92154C

BOLT,CVT COVER

92154-1522

Unavailable

92154D

BOLT,FLANGED,6X22

92154-1525

Unavailable

92154E

BOLT,FLANGED,8X45

92154-1526

Unavailable
