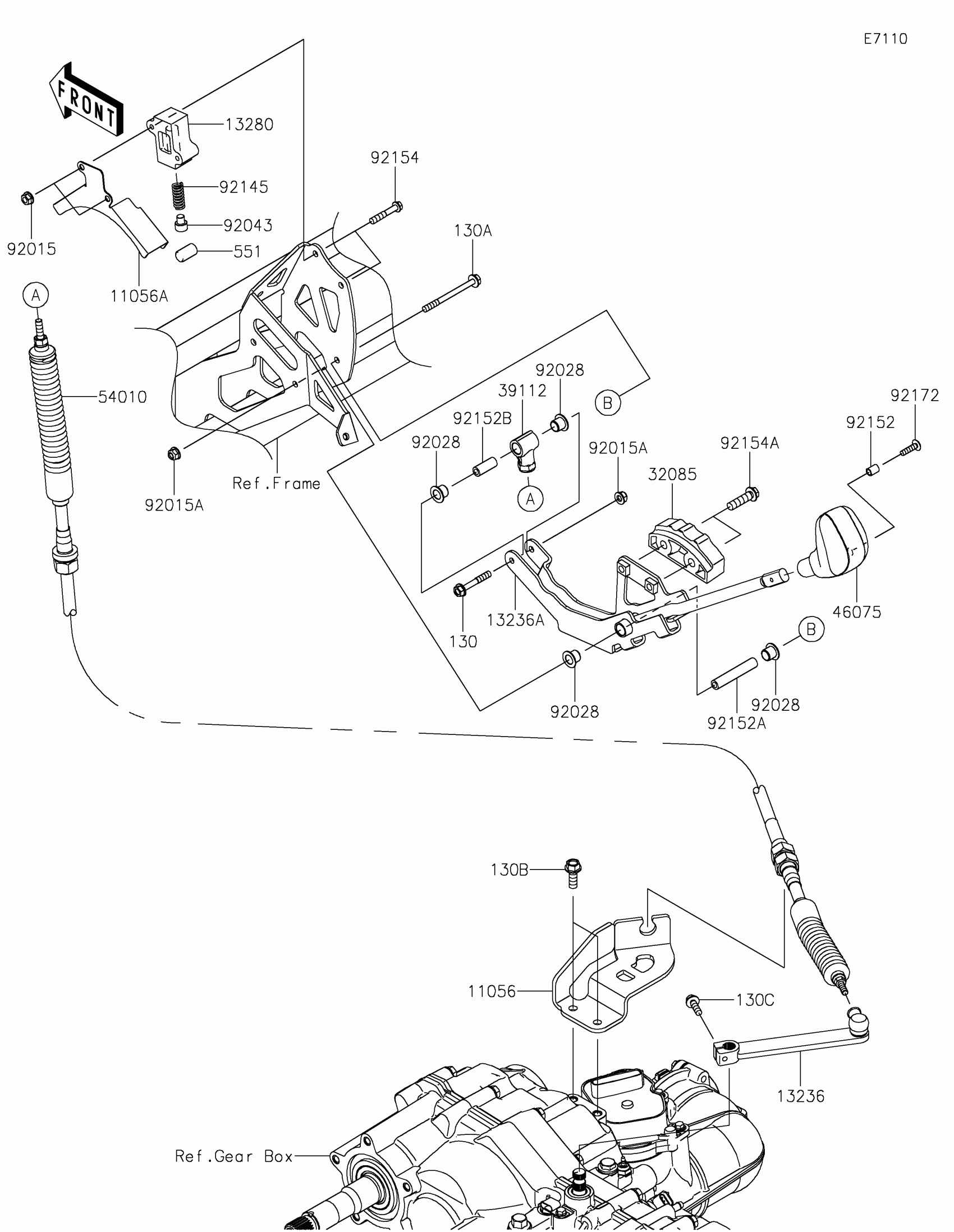

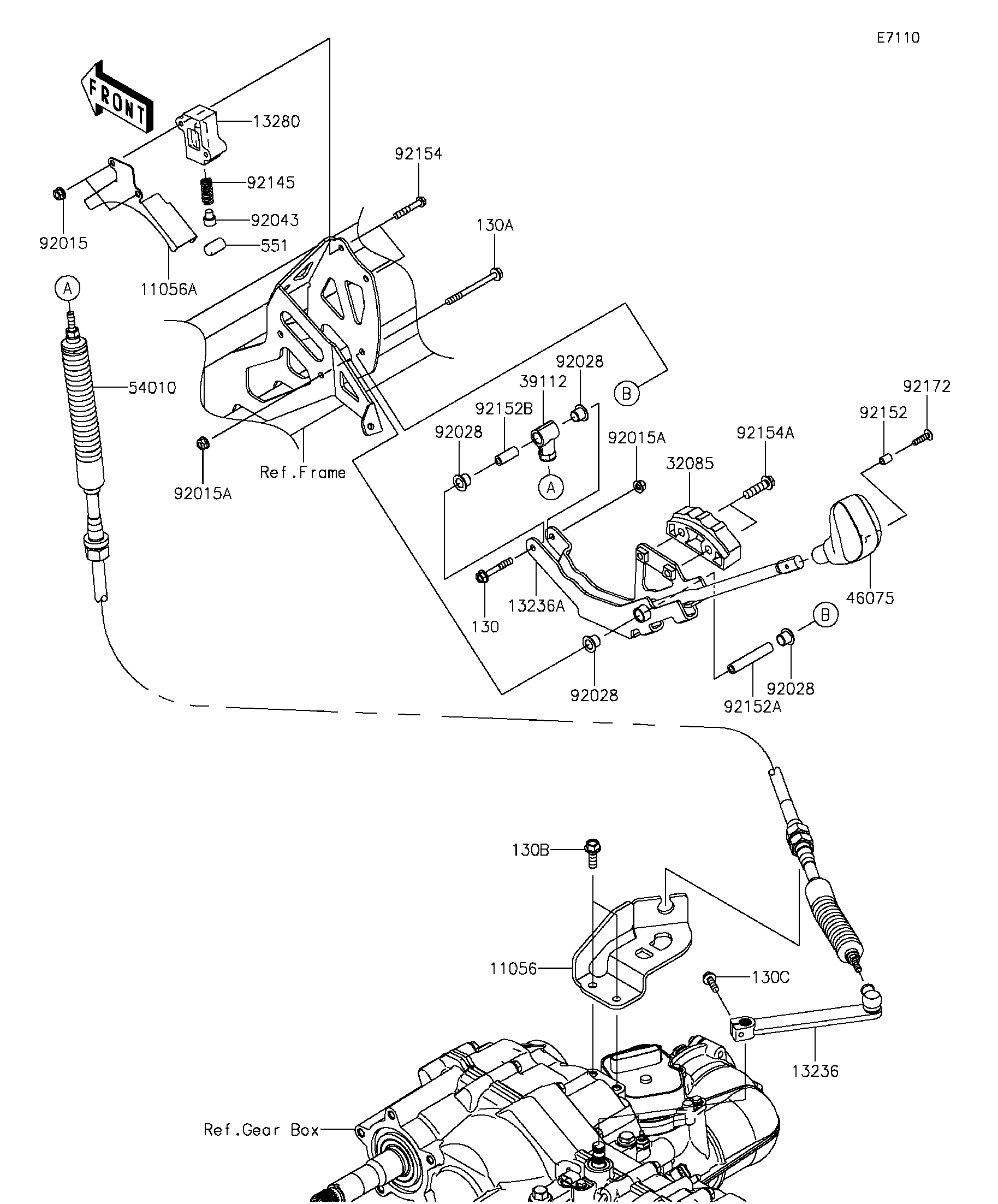

Kawasaki MULE PRO-FX™ EPS Control Diagram
#
Description
Price
11056
BRACKET,T/M SIDE
11056-2946
Unavailable
11056A
BRACKET,DUST COVER
11056-7274
Unavailable
130
BOLT-FLANGED,6X40
130BA0640
Unavailable
130A
BOLT-FLANGED,6X70
130BA0670
Unavailable
130B
BOLT-FLANGED,8X22
130BA0822
Unavailable
130C
BOLT-FLANGED,6X20
130CD0620
Unavailable
13236
LEVER-COMP,T/M SIDE
13236-0747
Unavailable
13236A
LEVER-COMP,SHIFT
13236-0748
Unavailable
13280
HOLDER
13280-0776
Unavailable
32085
STOPPER
32085-0748
Unavailable
39112
RODEND-TIE
39112-0020
Unavailable
46075
GRIP
46075-0569
Unavailable
54010
CABLE,SHIFT
54010-0601
Unavailable
551
PIN-DOWEL,12X20
551R1220
Unavailable
92015
NUT,FLANGED,6MM
92015-1367
Unavailable
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
Unavailable
92028
BUSHING
92028-1507
Unavailable
92043
PIN
92043-0790
Unavailable
92145
SPRING
92145-1578
Unavailable
92152
COLLAR,5.6X8X10.5
92152-1545
Unavailable
92152A
COLLAR,6X10X56.5
92152-1823
Unavailable
92152B
COLLAR,6X10X25
92152-1854
Unavailable
92154
BOLT,FLANGED,6X35
92154-1544
Unavailable
92154A
BOLT,FLANGED,8X30
92154-1907
Unavailable
92172
SCREW,5X20
92172-2081
Unavailable
