2016 Kawasaki Mule PRO-FX™ EPS Camo Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2016 Kawasaki Mule PRO-FX™ EPS Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

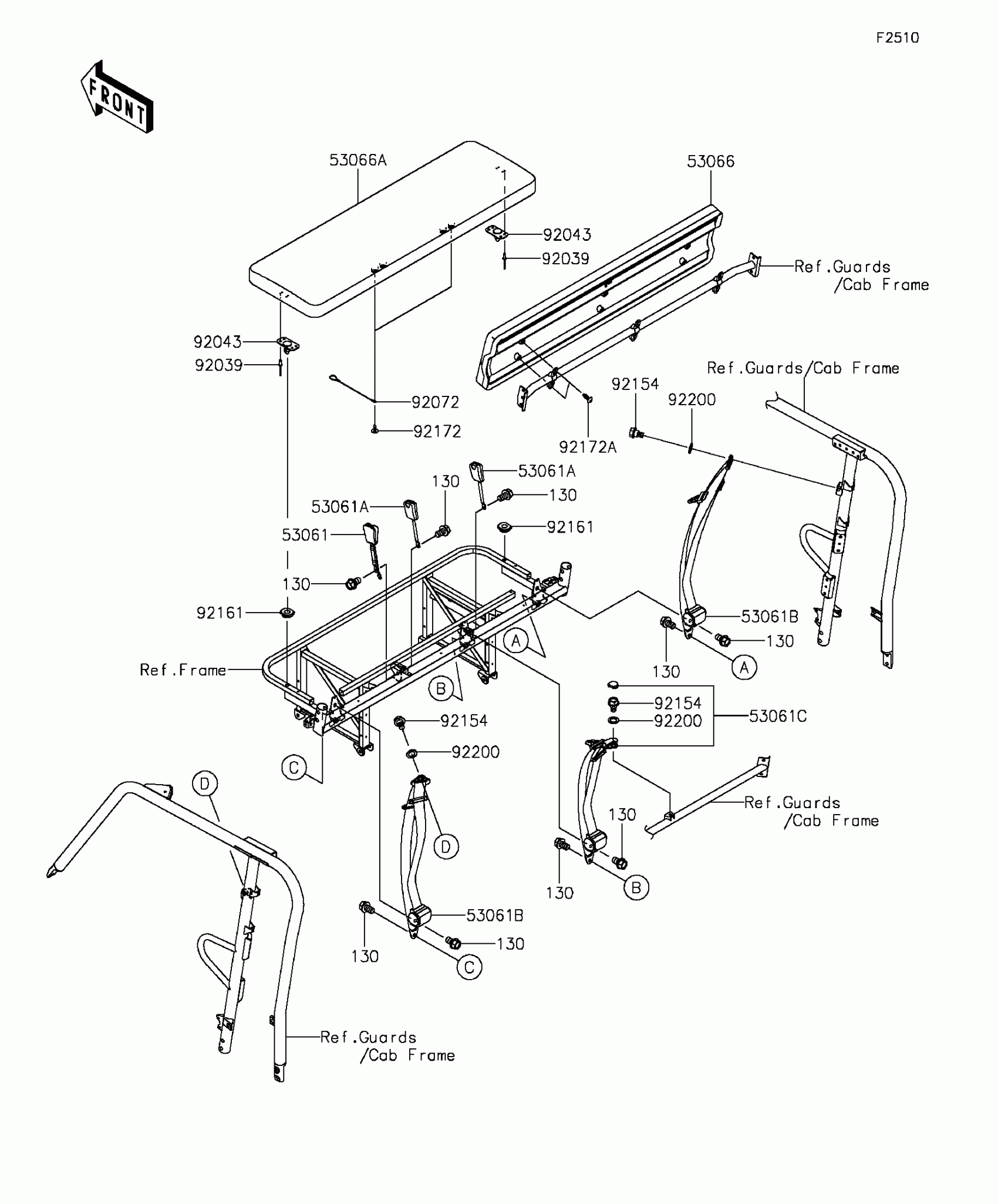

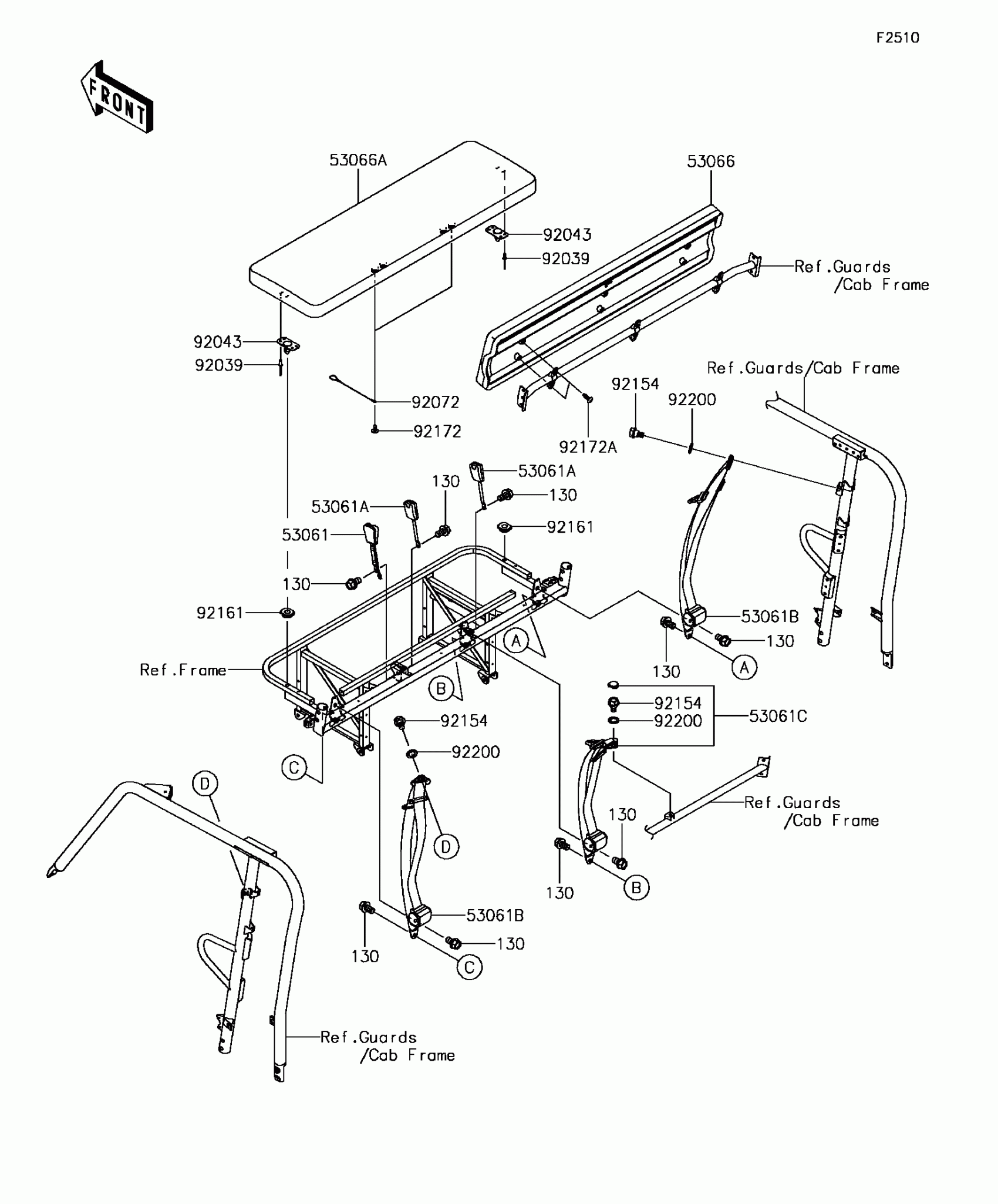

2016 Kawasaki Mule PRO-FX™ EPS Camo Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

53061

1

$56.84

In stock

53061A

BELT-SEAT,BUCKLE

53061-0039

1

$28.65

In stock

53061B

BELT-SEAT,FR,LH&RH

53061-0045

1

$152.89

In stock

53061C

BELT-SEAT,MIDDLE

53061-0046

1

$168.60

In stock

53066

SEAT-ASSY,BACK,BLACK

53066-0426-MA

1
Out of stock

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0495-MA

1
Out of stock

92039

RIVET

92039-0747

1
Out of stock

92043

PIN

92043-0859

1
Out of stock

92072

BAND

92072-0769

1
Out of stock

92154

BOLT,FLANGED,10X18.5

92154-1388

1
Out of stock

92161

DAMPER,10.5X30X8.2

92161-1784

1

$0.86

In stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92172A

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92200

WASHER,14X22X2

92200-1745

1
Out of stock
