2016 Kawasaki Mule PRO-FX™ EPS Camo Fuel Pump Diagram

← All diagrams

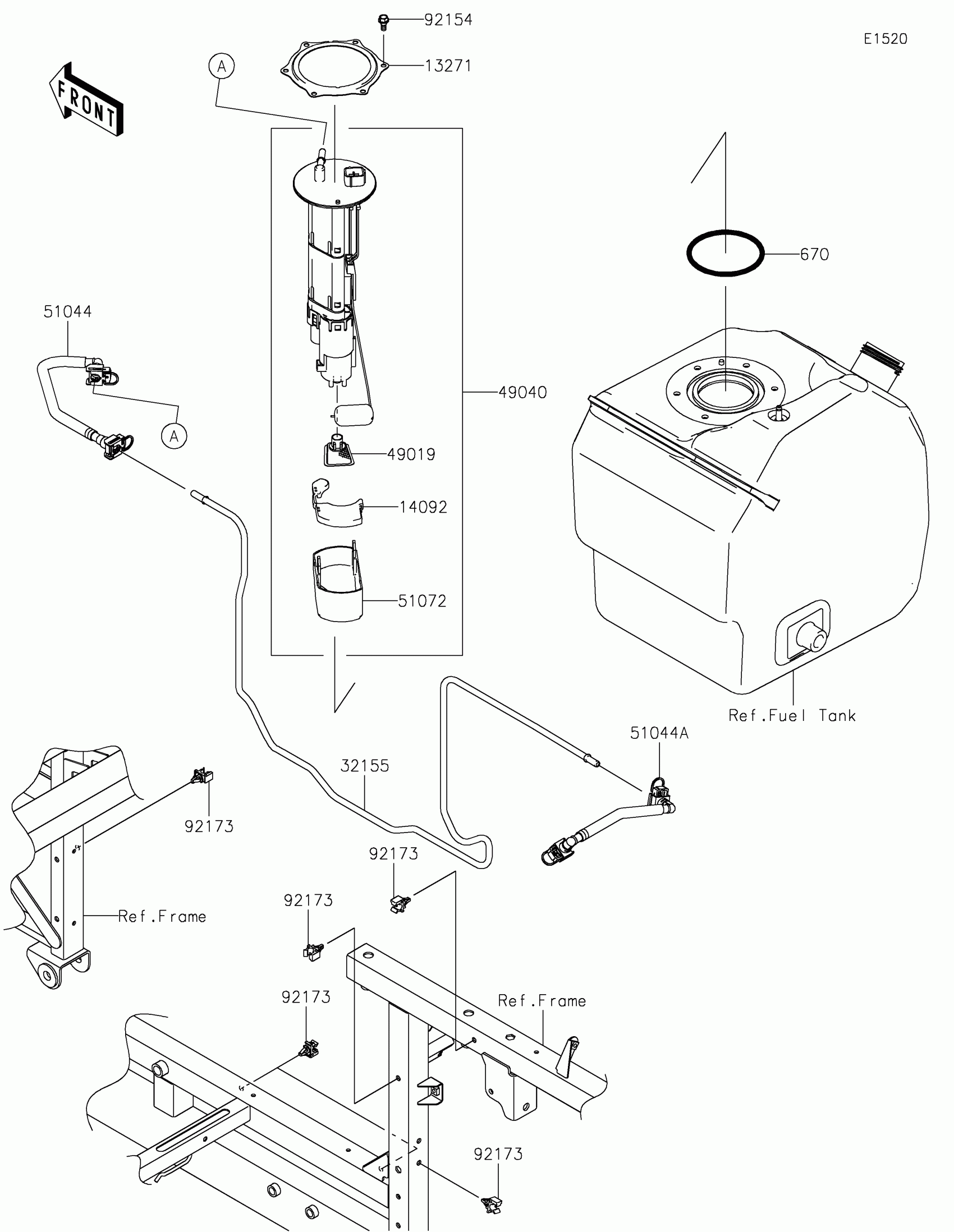

Find the part on the Fuel Pump diagram for your 2016 Kawasaki Mule PRO-FX™ EPS Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-FX™ EPS Camo Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE

13271-0980

1

$5.19

In stock

14092

COVER

14092-1044

1
Out of stock

32155

PIPE,FUEL

32155-1619

1
Out of stock

49019

FILTER-FUEL

49019-0013

1
Out of stock

49040

PUMP-FUEL

49040-0733

1
Out of stock

51044

TUBE-ASSY,TANK-PIPE

51044-0751

1
Out of stock

51044A

TUBE-ASSY,PIPE-INJECTION PIPE

51044-0752

1
Out of stock

51072

CHAMBER-FUEL

51072-0003

1
Out of stock

670

O RING

670E5090

1
Out of stock

92154

BOLT,FUEL PUMP

92154-1326

1
Out of stock

92173

CLAMP,FUEL PIPE

92173-1213

1
Out of stock
