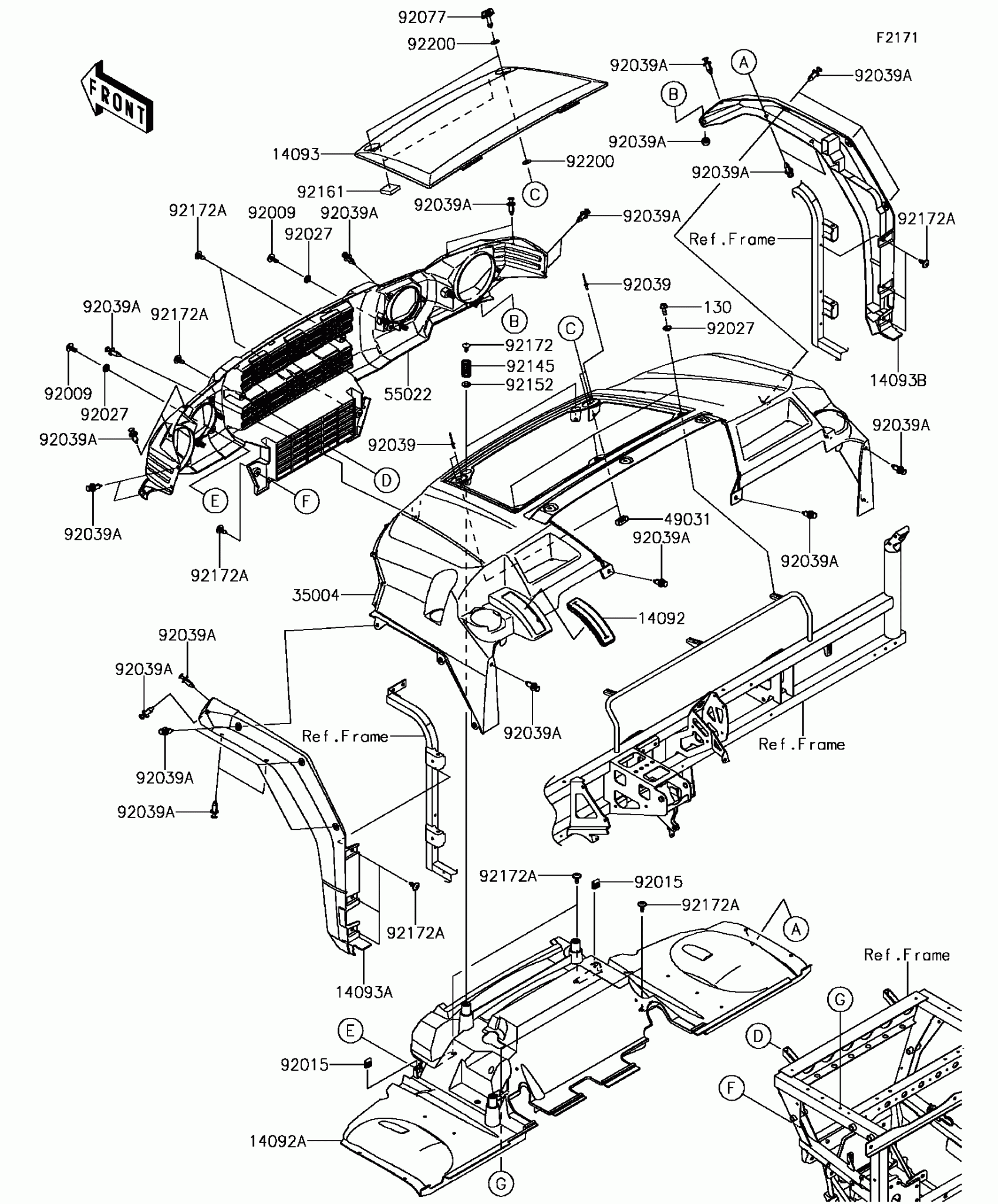

Kawasaki MULE PRO-FX™ EPS CAMO Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130CA0616

$1.32

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.58

14092A

COVER,TOP,FR INNER

14092-1194

$166.92

14093

COVER,OPEN,CAMOUFLAGE

14093-0019-42H

$290.46

14093A

COVER,SIDE,LH

14093-0596

$72.93

14093B

COVER,SIDE,RH

14093-0597

$72.93

35004

FENDER-FRONT,CAMOUFLAGE

35004-0337-42H

$534.90

49031

LATCH

49031-0008

$1.32

55022

COVER-HEAD LAMP

55022-0309

$115.42

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET,3.2X9.8

92039-0013

$0.55

92039A

RIVET

92039-1229

$0.80

92077

KNOB

92077-0030

$2.11

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,6X16

92172-0711

$2.11

92200

WASHER

92200-0503

$1.81
