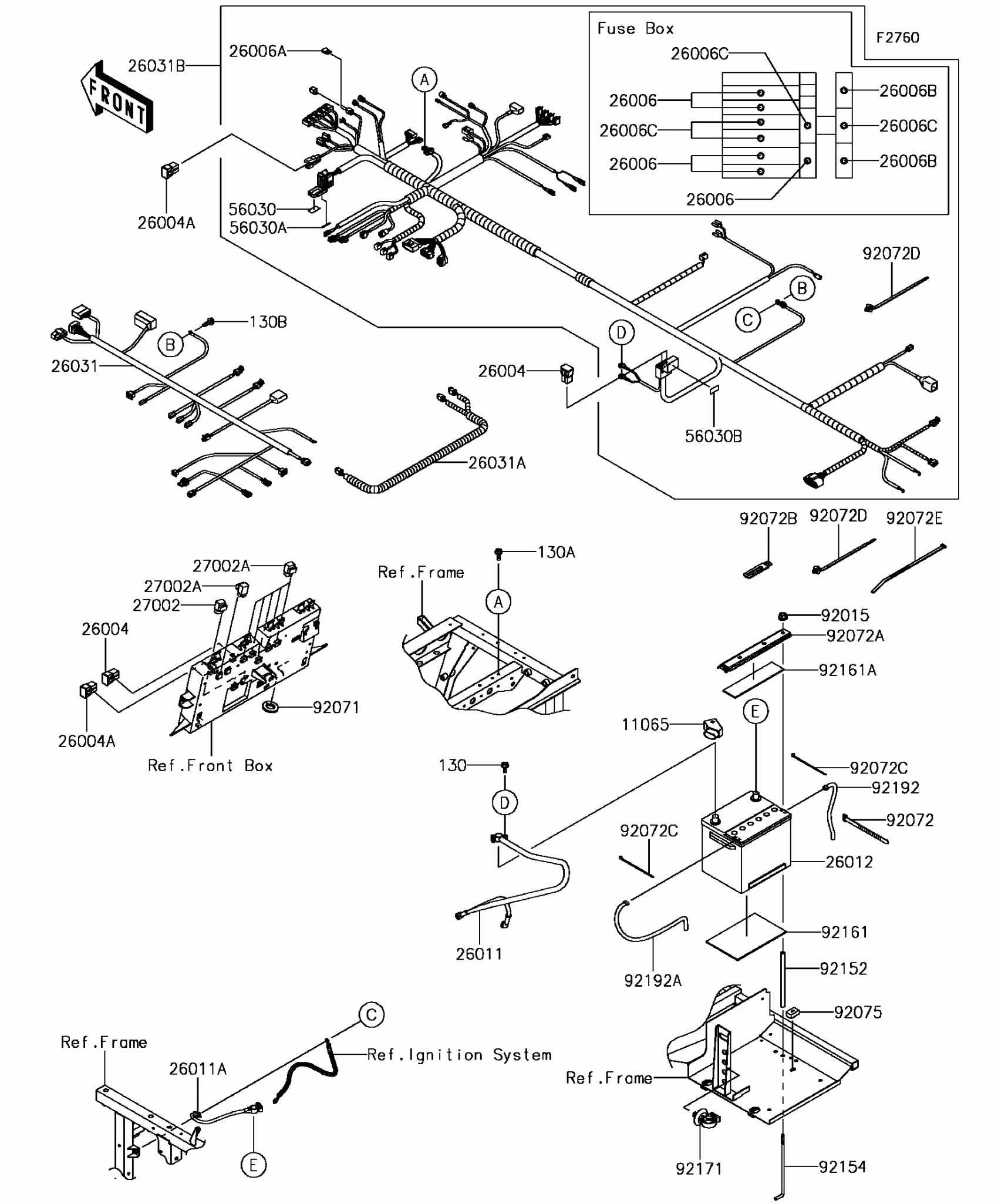

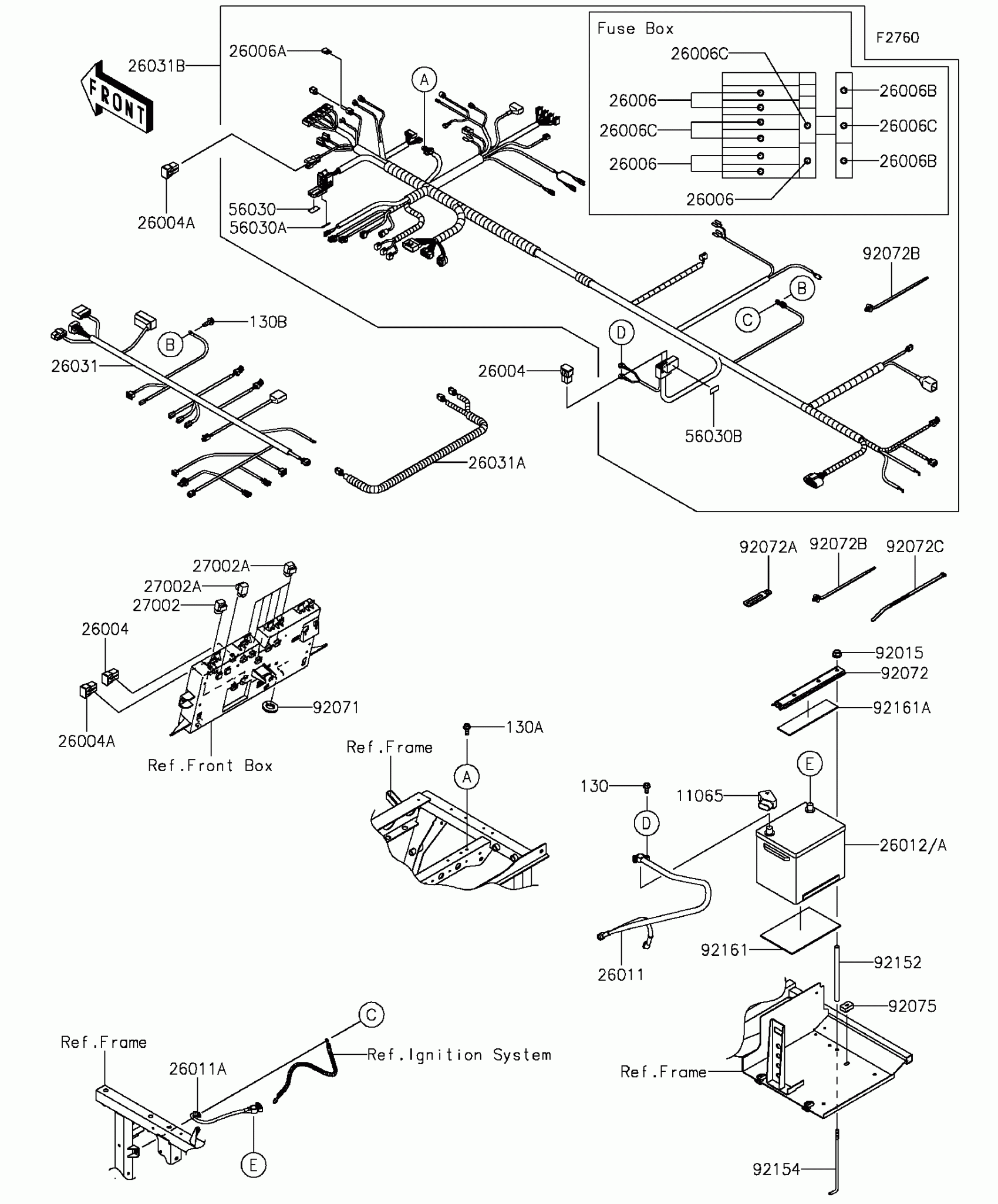

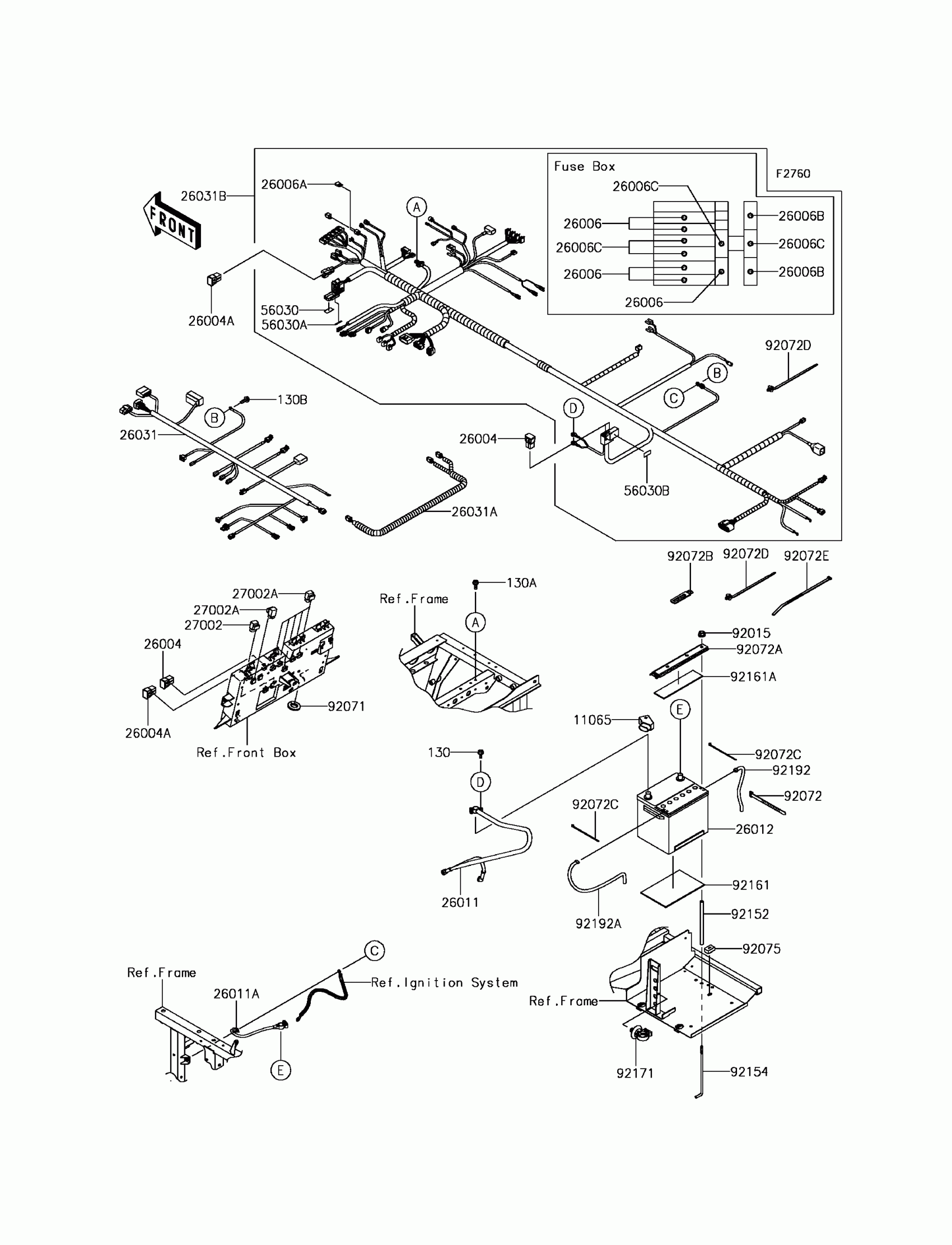

Kawasaki MULE PRO-FX™ EPS CAMO Chassis Electrical Equipment Diagram

Description

Price

11065

CAP

11065-0850

$3.51

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

26004

FUSE-ASSY,60A

26004-0024

$4.27

26004A

FUSE-ASSY,40A

26004-1093

$4.21

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$5.71

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$3.98

26011

WIRE-LEAD,BATTERY(+)

26011-0851

$113.30

26011A

WIRE-LEAD,BATTERY(-)

26011-0912

$45.61

26012

BATTERY,12V 32AH

26012-0619

$167.05

26012A

BATTERY,WET,(26R)

26012-7501

$132.95

26031

HARNESS

26031-1644

$412.37

26031A

HARNESS,SUB

26031-1647

$75.11

26031B

HARNESS,MAIN

26031-1857

$754.45

27002

RELAY-ASSY

27002-0022

$41.23

27002A

RELAY-ASSY

27002-1062

$40.25

56030

LABEL,FUSE BOX1

56030-0850

$2.37

56030A

LABEL,FUSE BOX2

56030-0854

$2.37

56030B

LABEL,FUSE CASE

56030-0891

$2.37

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92071

GROMMET,22X45X9

92071-0729

$1.80

92072

BAND

92072-0767

$9.53

92072A

BAND

92072-0770

$2.25

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072C

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-099

$4.18

92152

COLLAR,9.4X12.7X190.8

92152-1852

$7.98

92154

BOLT,BATTERY

92154-1650

$10.58

92161

DAMPER

92161-0578

$3.80

92161A

DAMPER

92161-1753

$7.46
