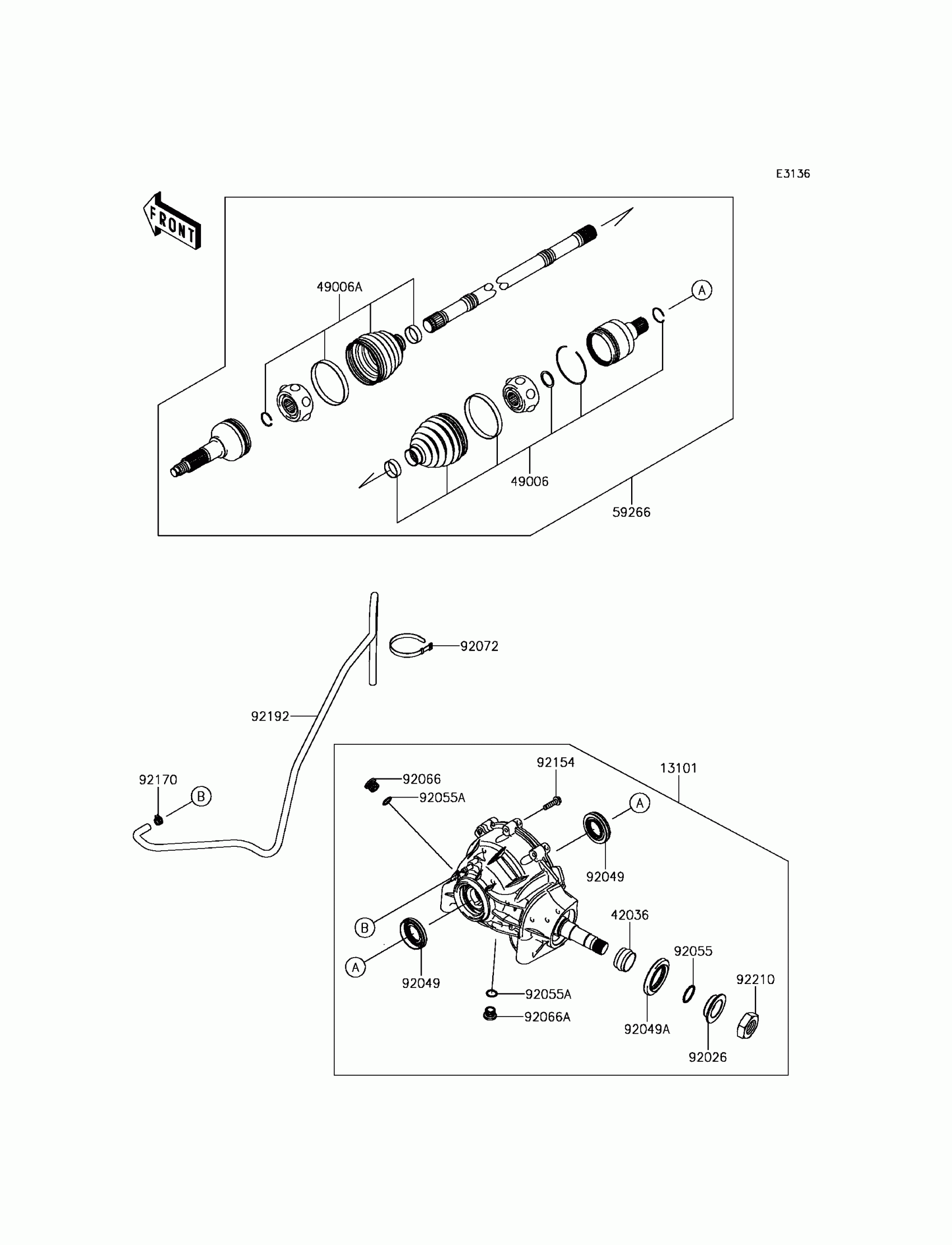

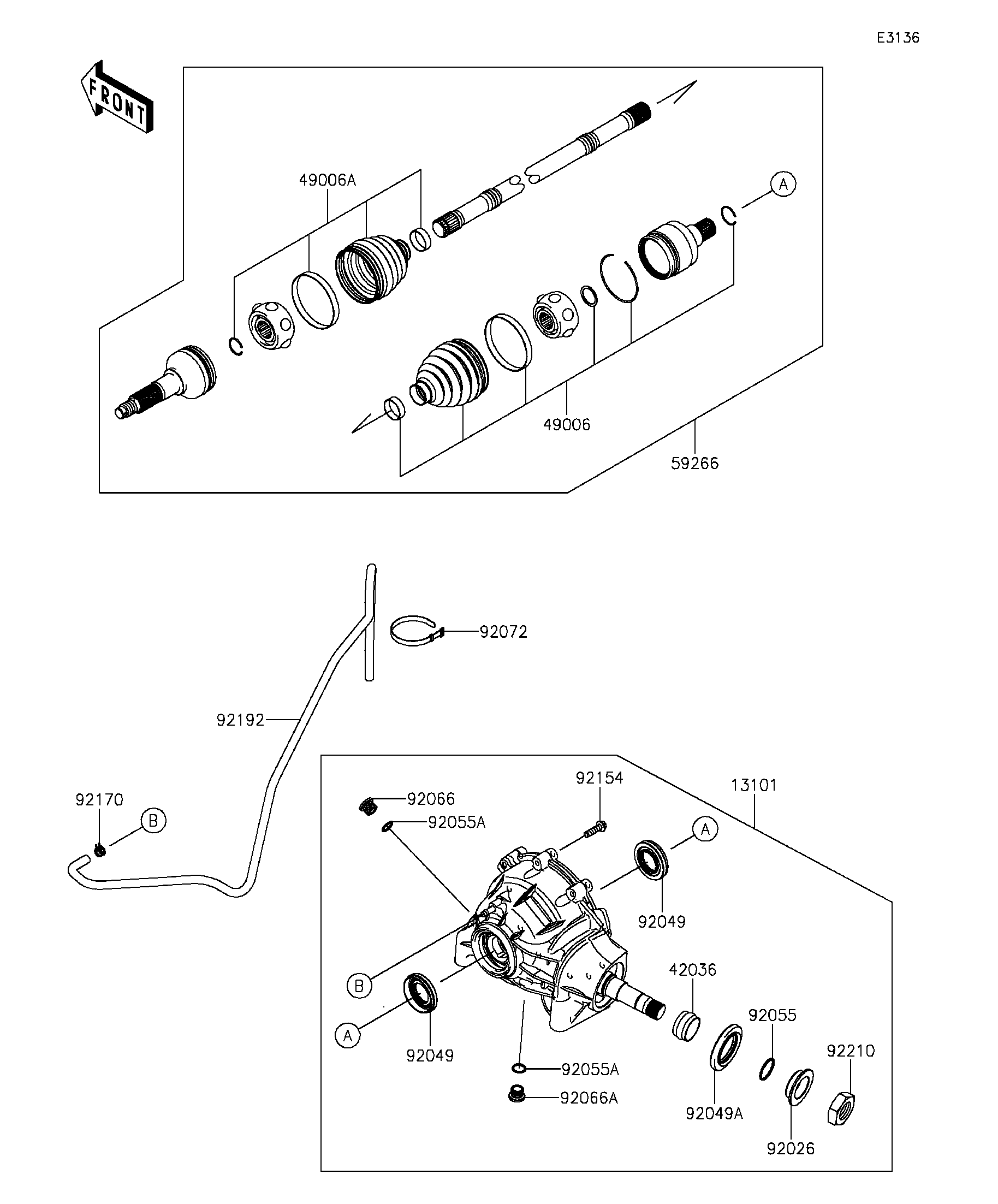

Kawasaki MULE PRO-FX™ Drive Shaft-Front Diagram

#

Description

Price

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0662

Unavailable

42036

SLEEVE

42036-0741

Unavailable

49006

BOOT,INSIDE

49006-0578

Unavailable

49006A

BOOT,OUTSIDE

49006-0584

Unavailable

59266

JOINT-BALL,FR

59266-0710

Unavailable

92026

SPACER

92026-0776

Unavailable

92049

SEAL-OIL,33X60X7

92049-0760

Unavailable

92049A

SEAL-OIL,44X72X7

92049-0766

Unavailable

92055

RING-O

92055-0788

Unavailable

92055A

RING-O,15.3X2.2

92055-0830

Unavailable

92066

PLUG

92066-0777

Unavailable

92066A

PLUG

92066-0778

Unavailable

92072

BAND,L=186

92072-056

Unavailable

92154

BOLT,FLANGED,8X30

92154-1370

Unavailable

92170

CLAMP

92170-2082

Unavailable

92192

TUBE,BREATHER

92192-1341

Unavailable

92210

NUT

92210-0894

Unavailable
