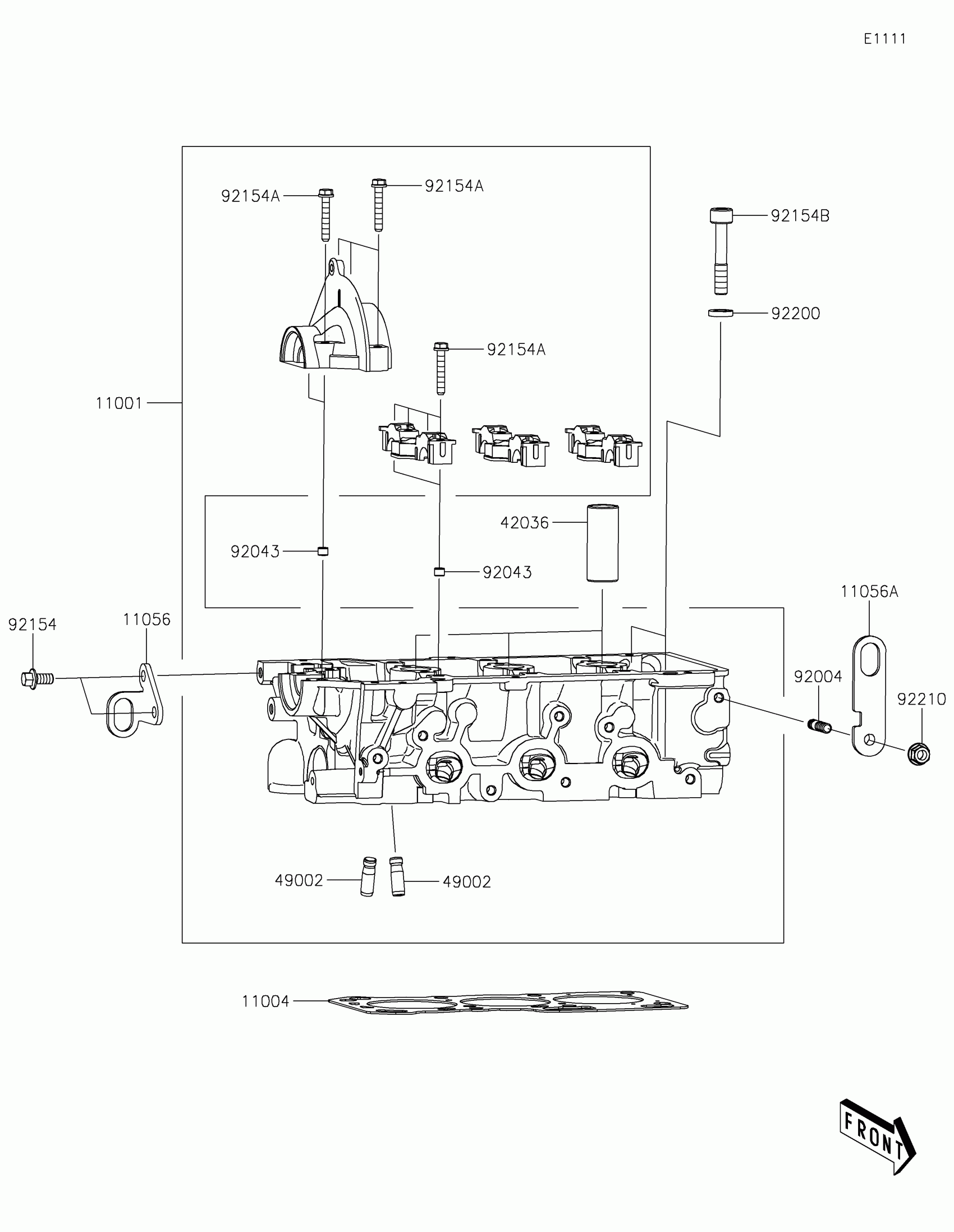

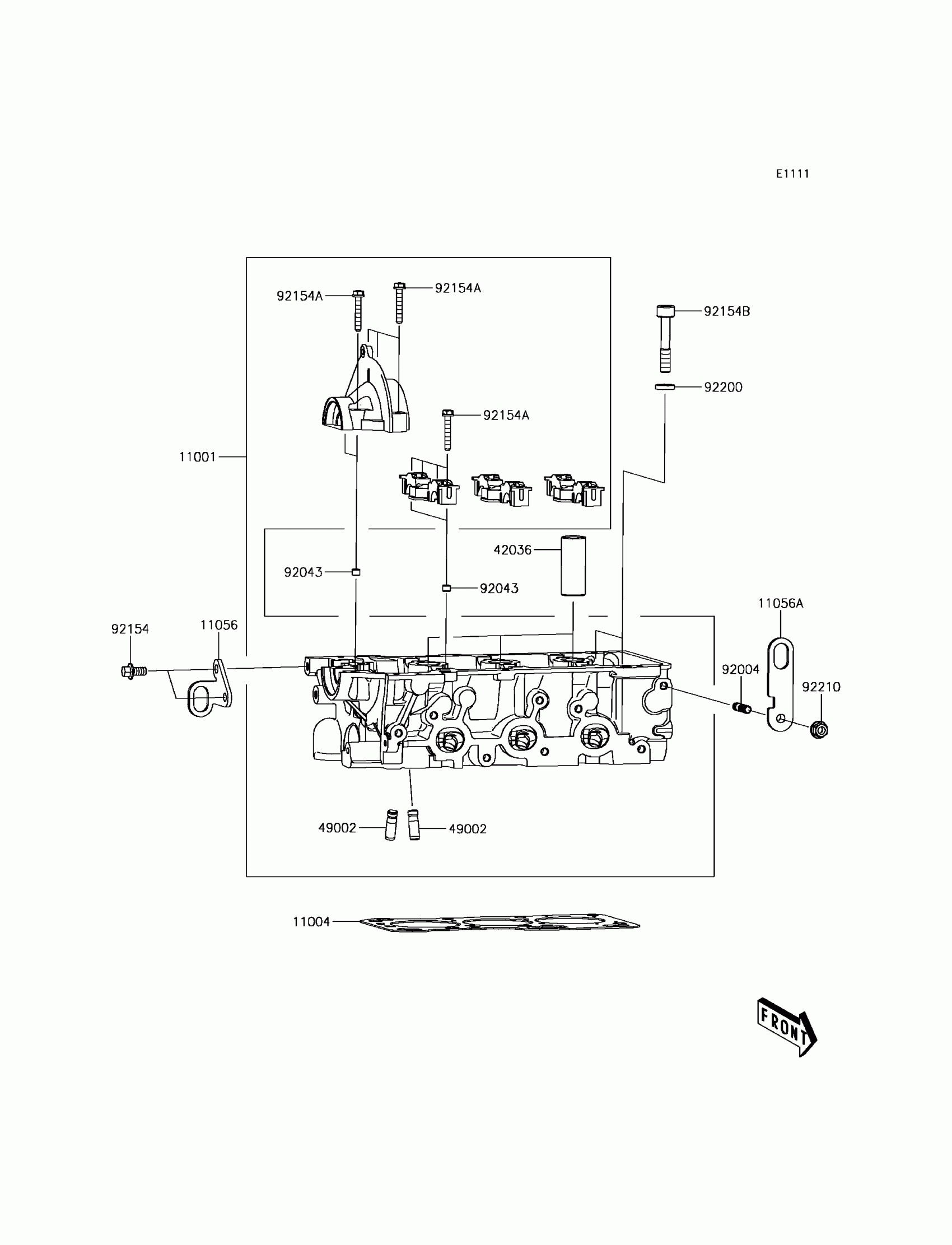

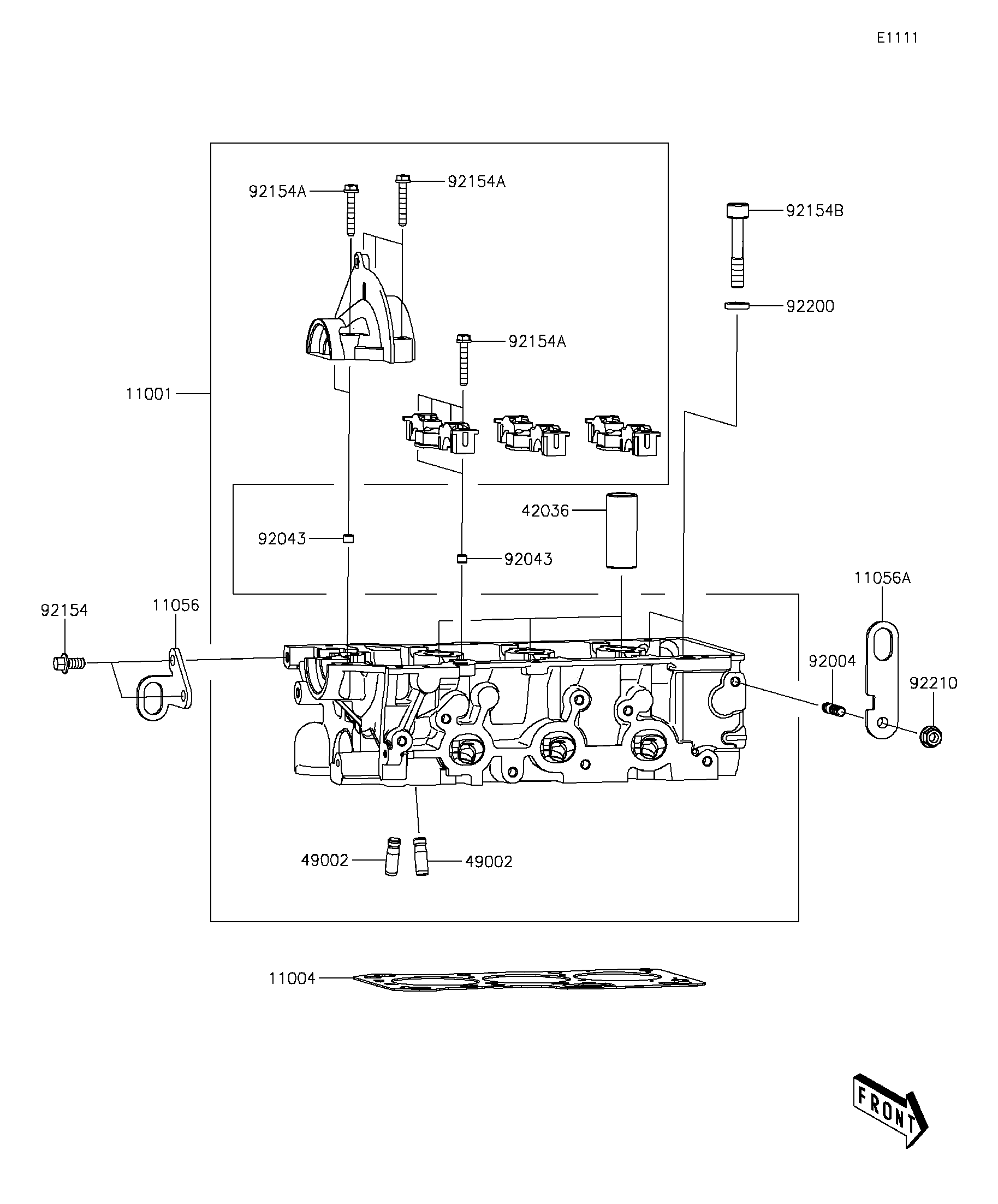

Kawasaki MULE PRO-FX™ Cylinder Head Diagram

#

Description

Price

11001

HEAD-CYLINDER

11001-0839

Unavailable

11004

GASKET-HEAD

11004-0747

Unavailable

11056

BRACKET

11056-7081

Unavailable

11056A

BRACKET

11056-7082

Unavailable

42036

SLEEVE,SPARK PLUG

42036-0764

Unavailable

49002

GUIDE-VALVE

49002-0030

Unavailable

92004

STUD

92004-0734

Unavailable

92043

PIN

92043-0831

Unavailable

92154

BOLT,FLANGED,8X16

92154-1588

Unavailable

92154A

BOLT,6X38

92154-1589

Unavailable

92154B

BOLT,SOCKET

92154-1590

Unavailable

92200

WASHER

92200-1683

Unavailable

92210

NUT

92210-0944

Unavailable
