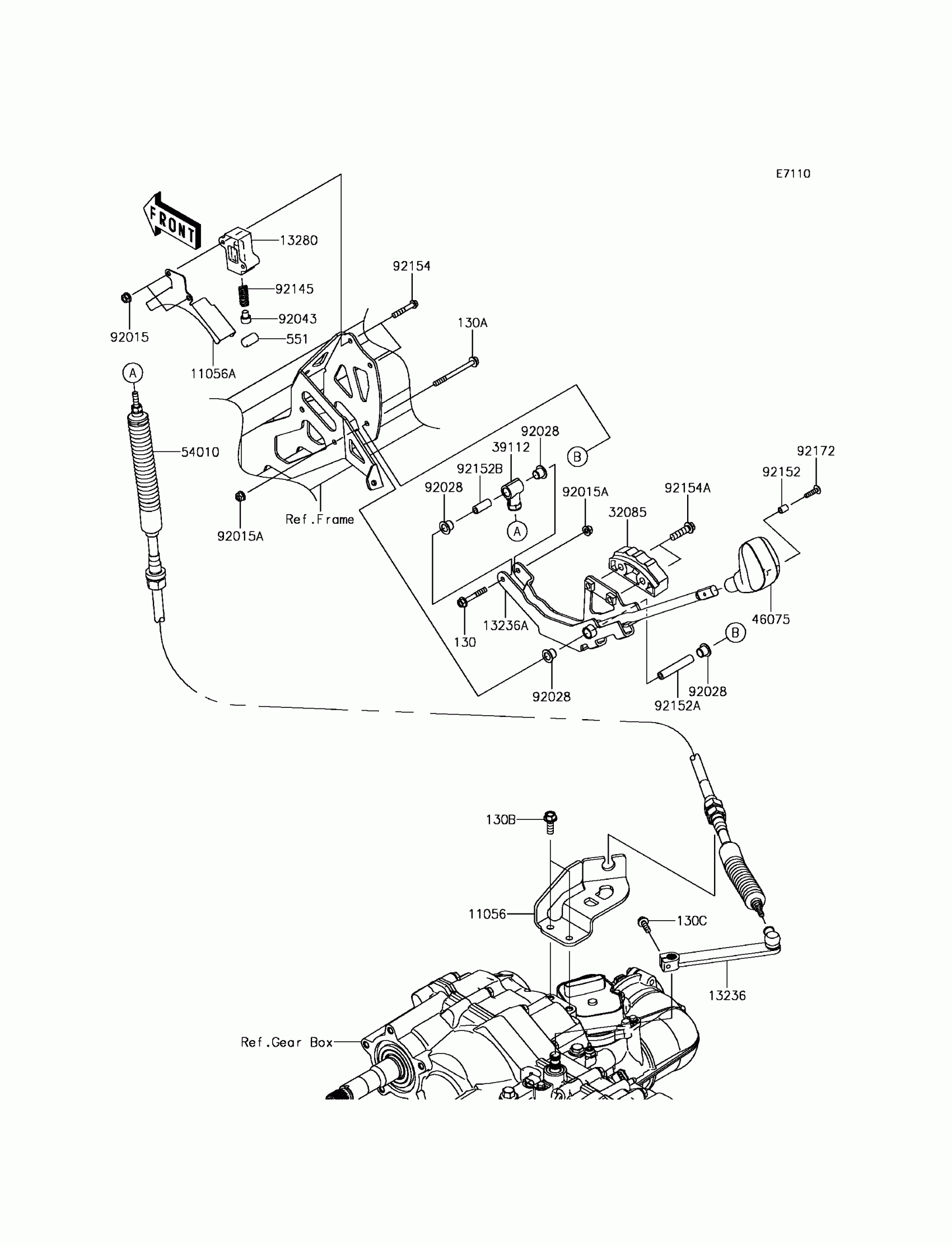

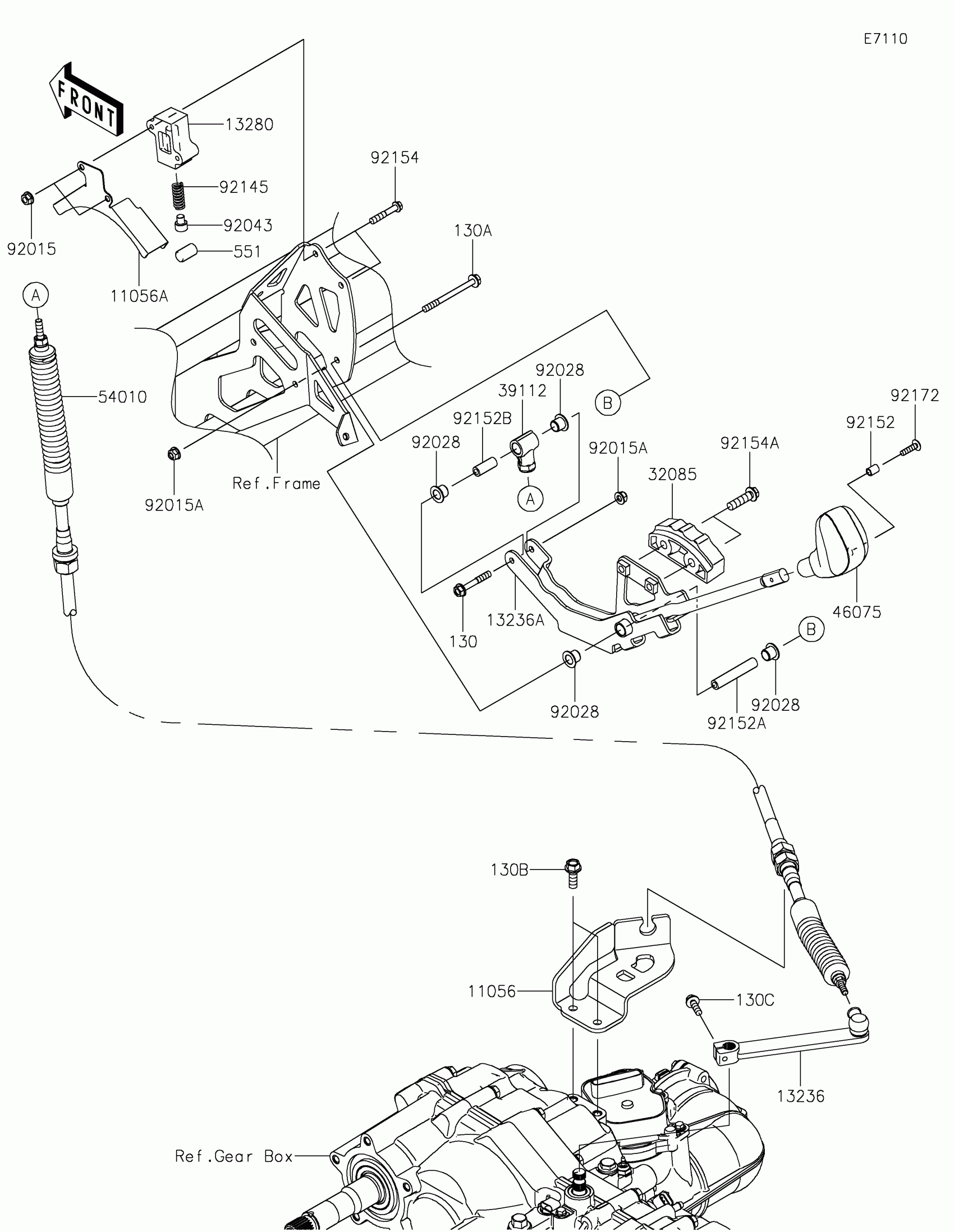

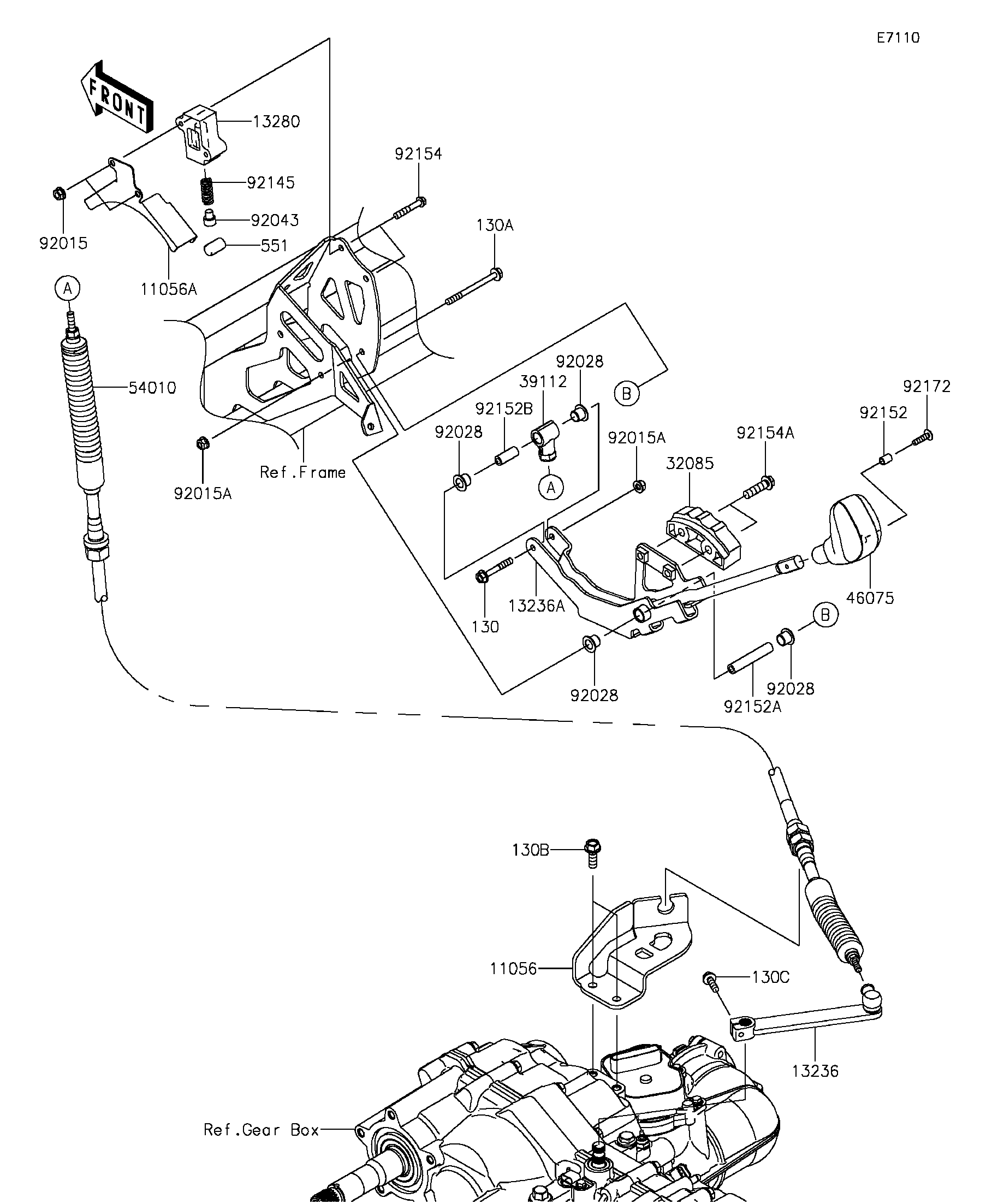

Kawasaki MULE PRO-FX™ Control Diagram

#

Description

Price

11056

BRACKET,T/M SIDE

11056-2946

Unavailable

11056A

BRACKET,DUST COVER

11056-7274

Unavailable

130

BOLT-FLANGED,6X40

130BA0640

Unavailable

130A

BOLT-FLANGED,6X70

130BA0670

Unavailable

130B

BOLT-FLANGED,8X22

130BA0822

Unavailable

130C

BOLT-FLANGED,6X20

130CD0620

Unavailable

13236

LEVER-COMP,T/M SIDE

13236-0747

Unavailable

13236A

LEVER-COMP,SHIFT

13236-0748

Unavailable

13280

HOLDER

13280-0776

Unavailable

32085

STOPPER

32085-0748

Unavailable

39112

RODEND-TIE

39112-0020

Unavailable

46075

GRIP

46075-0569

Unavailable

54010

CABLE,SHIFT

54010-0601

Unavailable

551

PIN-DOWEL,12X20

551R1220

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

Unavailable

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

Unavailable

92028

BUSHING

92028-1507

Unavailable

92043

PIN

92043-0790

Unavailable

92145

SPRING

92145-1578

Unavailable

92152

COLLAR,5.6X8X10.5

92152-1545

Unavailable

92152A

COLLAR,6X10X56.5

92152-1823

Unavailable

92152B

COLLAR,6X10X25

92152-1854

Unavailable

92154

BOLT,FLANGED,6X35

92154-1544

Unavailable

92154A

BOLT,FLANGED,8X30

92154-1907

Unavailable

92172

SCREW,5X20

92172-2081

Unavailable
