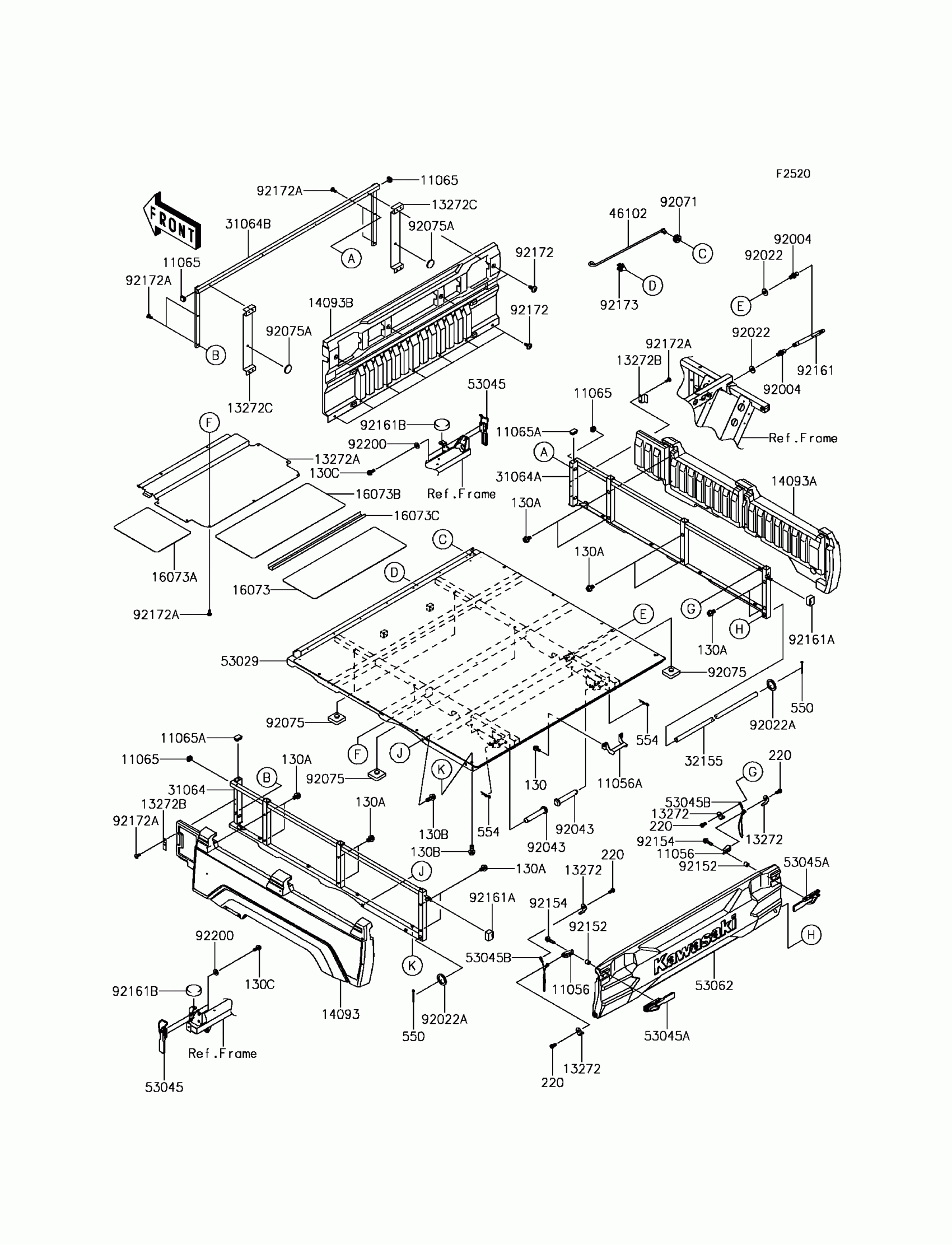

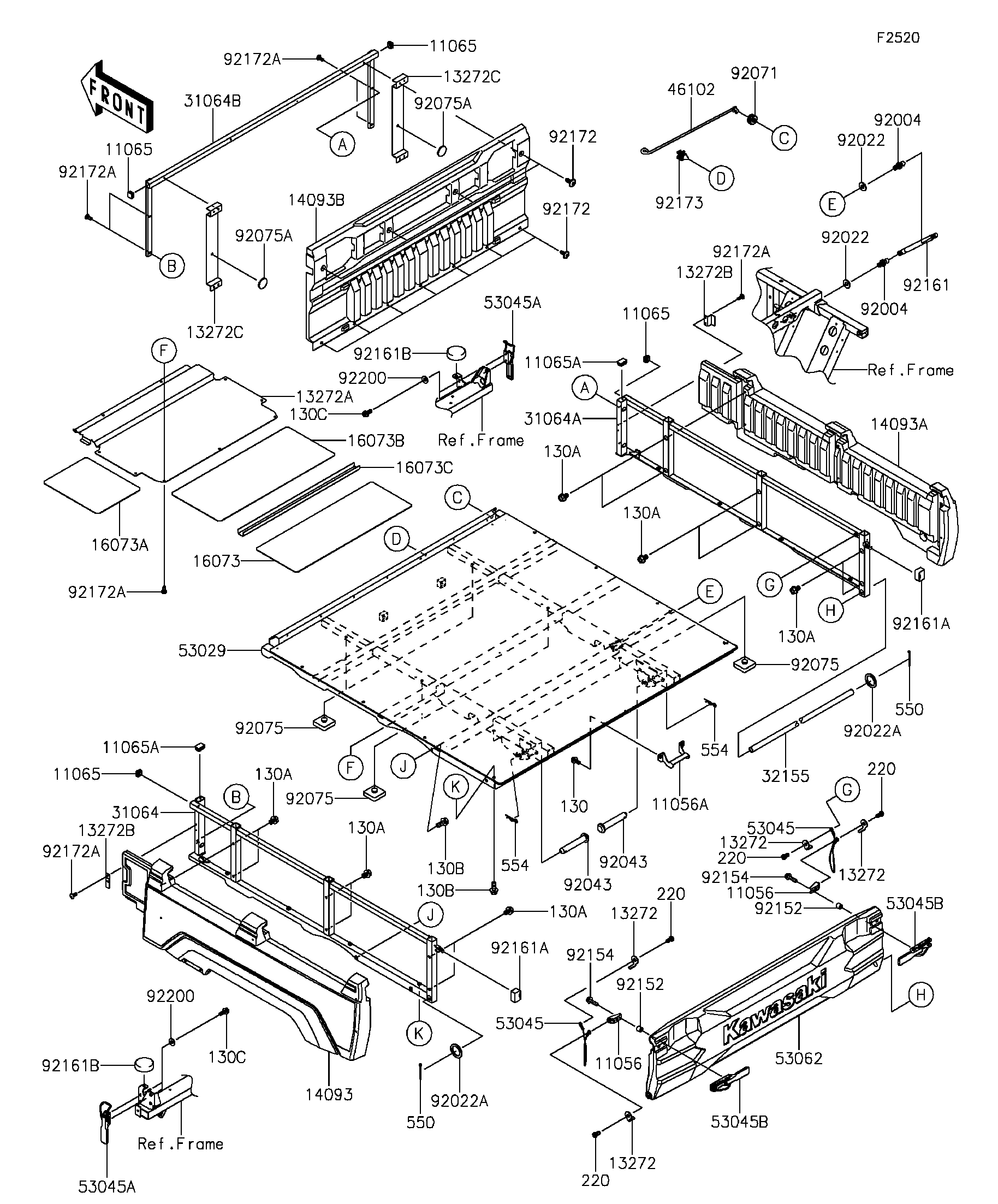

Kawasaki MULE PRO-FX™ Carrier(s) Diagram

#

Description

Price

11056

BRACKET,STOPPER

11056-2848

Unavailable

11056A

BRACKET,SUPPORT

11056-4273

Unavailable

11065

CAP

11065-0901

Unavailable

11065A

CAP

11065-0907

Unavailable

13272

PLATE

13272-1597

Unavailable

13272A

PLATE

13272-1891

Unavailable

13272B

PLATE,SIDE FRAME

13272-1993

Unavailable

13272C

PLATE,FR COVER

13272-2101

Unavailable

14093

COVER,RESIN PANEL,LH,F.BLACK

14093-0165-6Z

Unavailable

14093A

COVER,RESIN PANEL,RH,F.BLACK

14093-0166-6Z

Unavailable

14093B

COVER,SCREEN

14093-0301

Unavailable

16073

INSULATOR,250X705

16073-0812

Unavailable

16073A

INSULATOR,265X335

16073-0813

Unavailable

16073B

INSULATOR,295X705

16073-0816

Unavailable

16073C

INSULATOR,70X705

16073-0817

Unavailable

31064

PIPE-COMP,SIDE FRAME,LH

31064-0661

Unavailable

31064A

PIPE-COMP,SIDE FRAME,RH

31064-0662

Unavailable

31064B

PIPE-COMP,FR FRAME

31064-0663

Unavailable

32155

PIPE

32155-1533

Unavailable

46102

ROD,STOPPER

46102-0615

Unavailable

53029

CARRIER,BASE

53029-0338

Unavailable

53045

HOOK-ASSY,STOPPER

53045-0023

Unavailable

53045A

HOOK-ASSY,MAIN LOCK

53045-0025

Unavailable

53045B

HOOK-ASSY,MAIN CLAMP

53045-0026

Unavailable

53062

GATE-TAIL

53062-0022

Unavailable

92004

STUD

92004-0733

Unavailable

92022

WASHER,8.2X19X2

92022-1533

Unavailable

92022A

WASHER,23X32X2.3

92022-1618

Unavailable

92043

PIN,12.4X72.4

92043-0716

Unavailable

92071

GROMMET

92071-0012

Unavailable

92075

DAMPER

92075-1882

Unavailable

92075A

DAMPER,RUBBER

92075-261

Unavailable

92152

COLLAR,6.8X10X9.3

92152-1799

Unavailable

92154

BOLT,FLANGED,6X22

92154-1356

Unavailable

92161

DAMPER

92161-1615

Unavailable

92161A

DAMPER

92161-1656

Unavailable

92161B

DAMPER,10X40X10

92161-1775

Unavailable

92172

SCREW,6X16

92172-0711

Unavailable

92172A

SCREW,TAPPING,6X16

92172-0739

Unavailable

92173

CLAMP,FUEL PIPE

92173-1213

Unavailable

130

BOLT-FLANGED,6X14

130BA0614

Unavailable

130A

BOLT-FLANGED,8X12

130BA0812

Unavailable

130B

BOLT-FLANGED,8X20

130BA0820

Unavailable

130C

BOLT-FLANGED,6X16

130CA0616

Unavailable

220

SCREW-PAN-CROS,6X10

220AB0610

Unavailable

550

PIN-COTTER,3.0X30

550AA3030

Unavailable

554

PIN-SNAP,12MM

554DA1200

Unavailable

92200

WASHER,6.5X16X2.0

92200-1543

Unavailable
