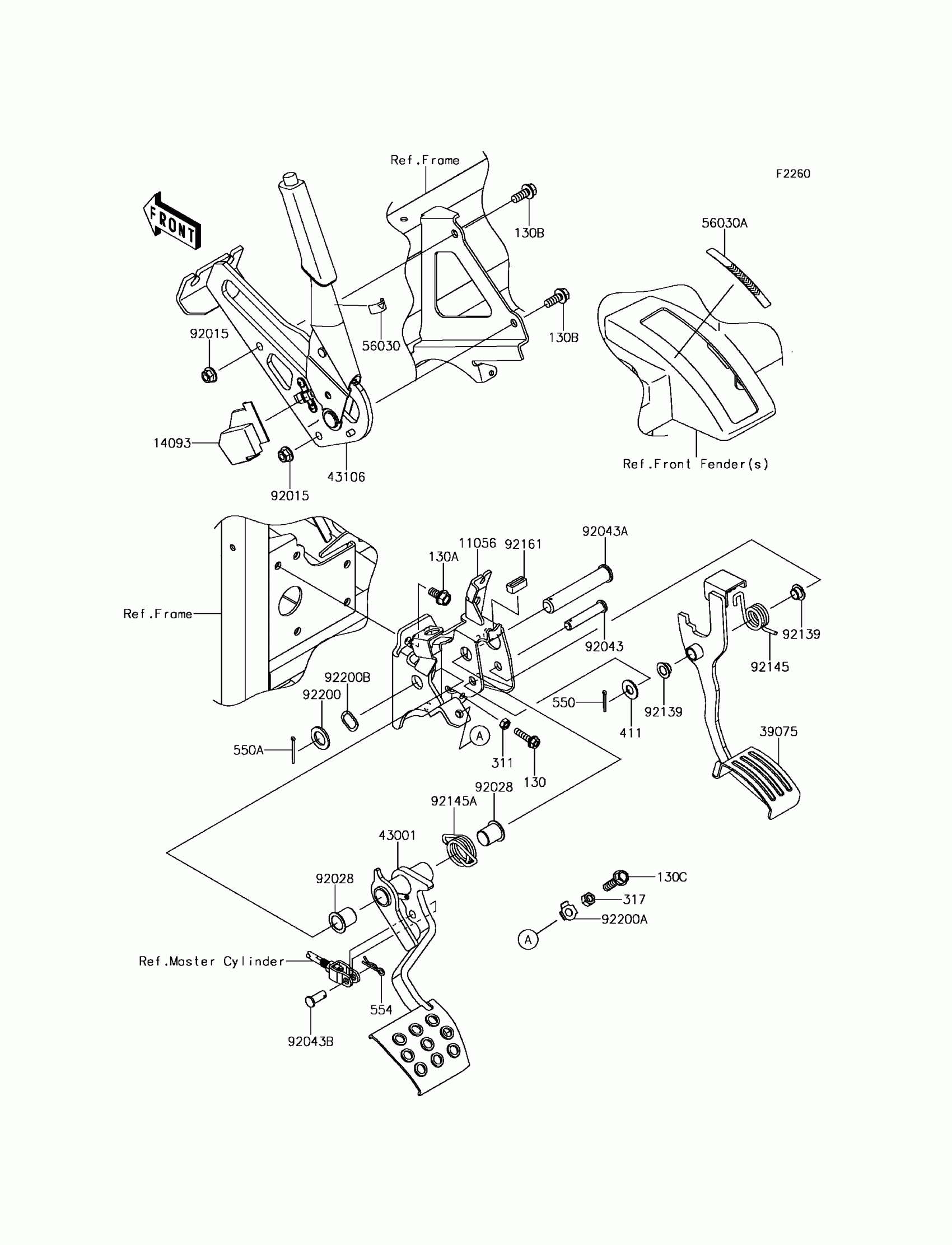

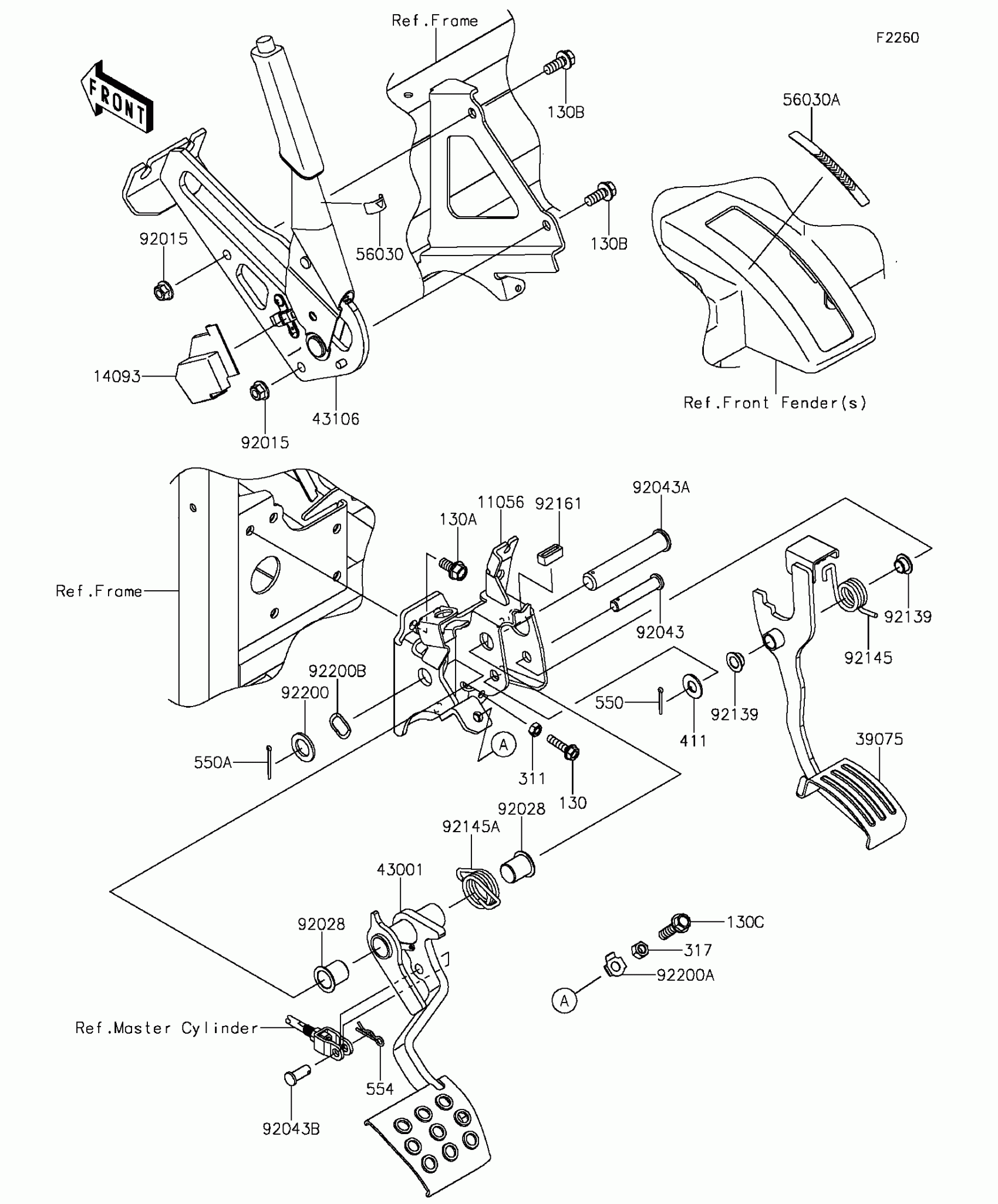

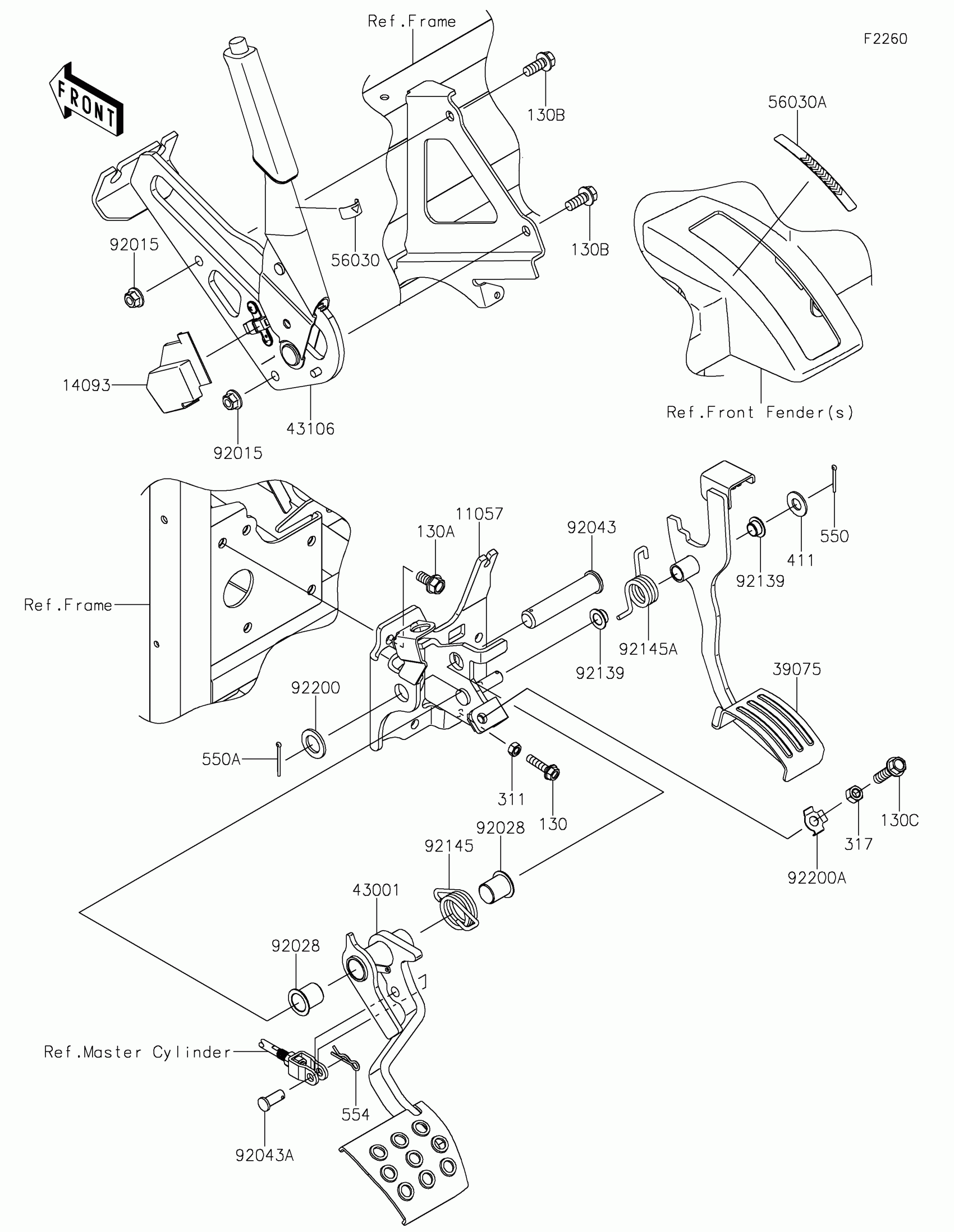

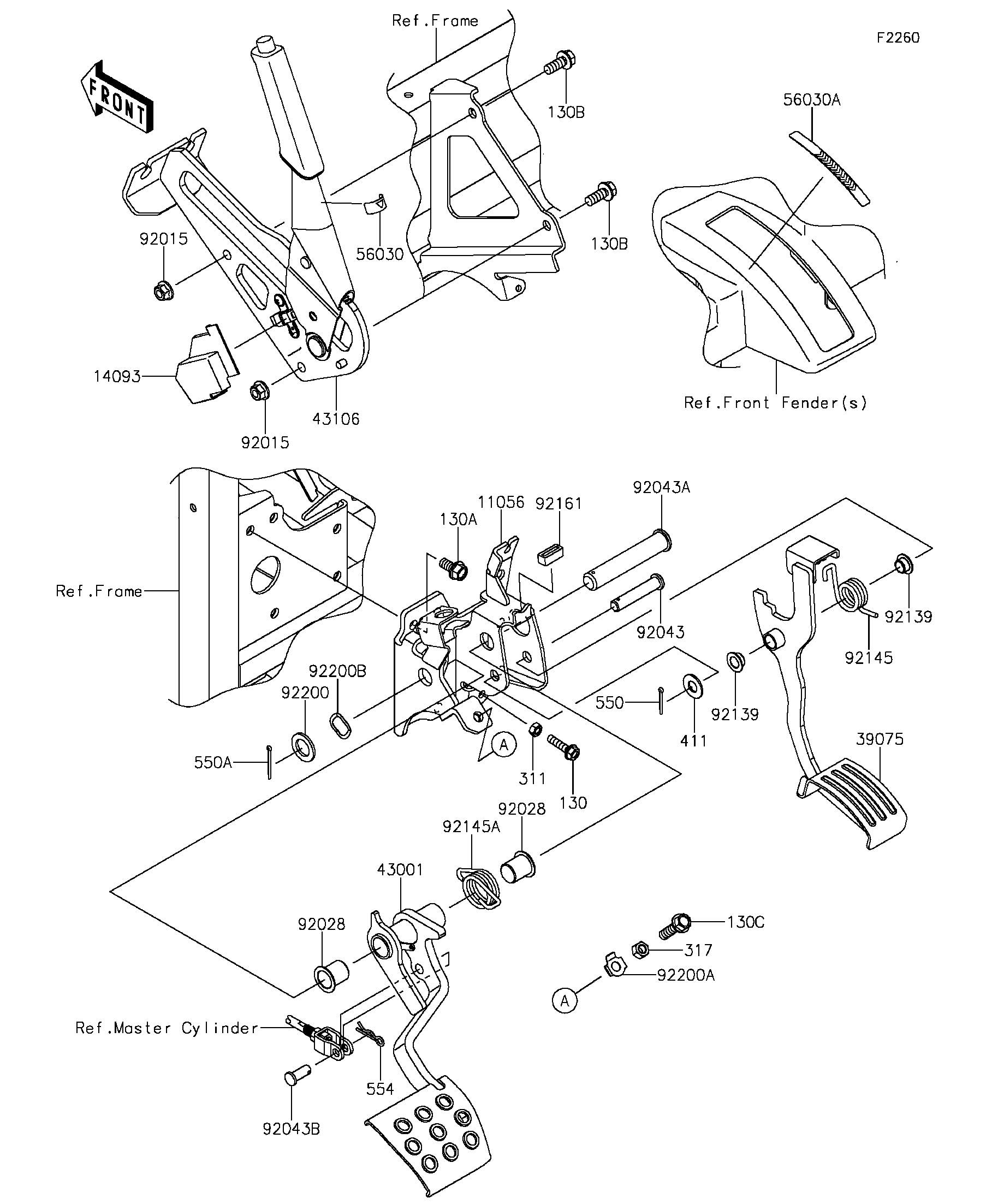

Kawasaki MULE PRO-FX™ Brake Pedal/Throttle Lever Diagram

#

Description

Price

11056

BRACKET,BRAKE

11056-2834

Unavailable

130

BOLT-FLANGED,6X25

130BA0625

Unavailable

130A

BOLT-FLANGED,8X18

130BA0818

Unavailable

130B

BOLT-FLANGED,8X20

130BA0820

Unavailable

130C

BOLT-FLANGED,8X30

130BA0830

Unavailable

14093

COVER,PARKING BRAKE SW.

14093-0241

Unavailable

311

NUT-HEX,6MM

311BA0600

Unavailable

317

NUT-HEX-SMALL,8MM

317BA0800

Unavailable

39075

LEVER-THROTTLE

39075-0018

Unavailable

411

WASHER-PLAIN,10MM

411AA1000

Unavailable

43001

LEVER-BRAKE,FOOT

43001-0728

Unavailable

43106

LEVER-ASSY-PARKING BRAKE

43106-0006

Unavailable

550

PIN-COTTER,2.5X18

550AA2518

Unavailable

550A

PIN-COTTER,2.5X25

550AA2525

Unavailable

554

PIN-SNAP,10MM

554DA1000

Unavailable

56030

LABEL,ARROW

56030-0905

Unavailable

56030A

LABEL,STROKE RANGE

56030-0930

Unavailable

92015

NUT,FLANGED,8MM

92015-1406

Unavailable

92028

BUSHING

92028-1571

Unavailable

92043

PIN,10X51.5

92043-0785

Unavailable

92043A

PIN,16X88

92043-0786

Unavailable

92043B

PIN

92043-1039

Unavailable

92139

BUSHING

92139-0230

Unavailable

92145

SPRING,RETURN,22X3.5

92145-0999

Unavailable

92145A

SPRING,BRAKE PEDAL RETURN

92145-1615

Unavailable

92161

DAMPER

92161-1695

Unavailable

92200

WASHER,16X26X2.3

92200-0043

Unavailable

92200A

WASHER,8.5X17X0.8

92200-0993

Unavailable

92200B

WASHER,17X23X2.5

92200-1689

Unavailable
