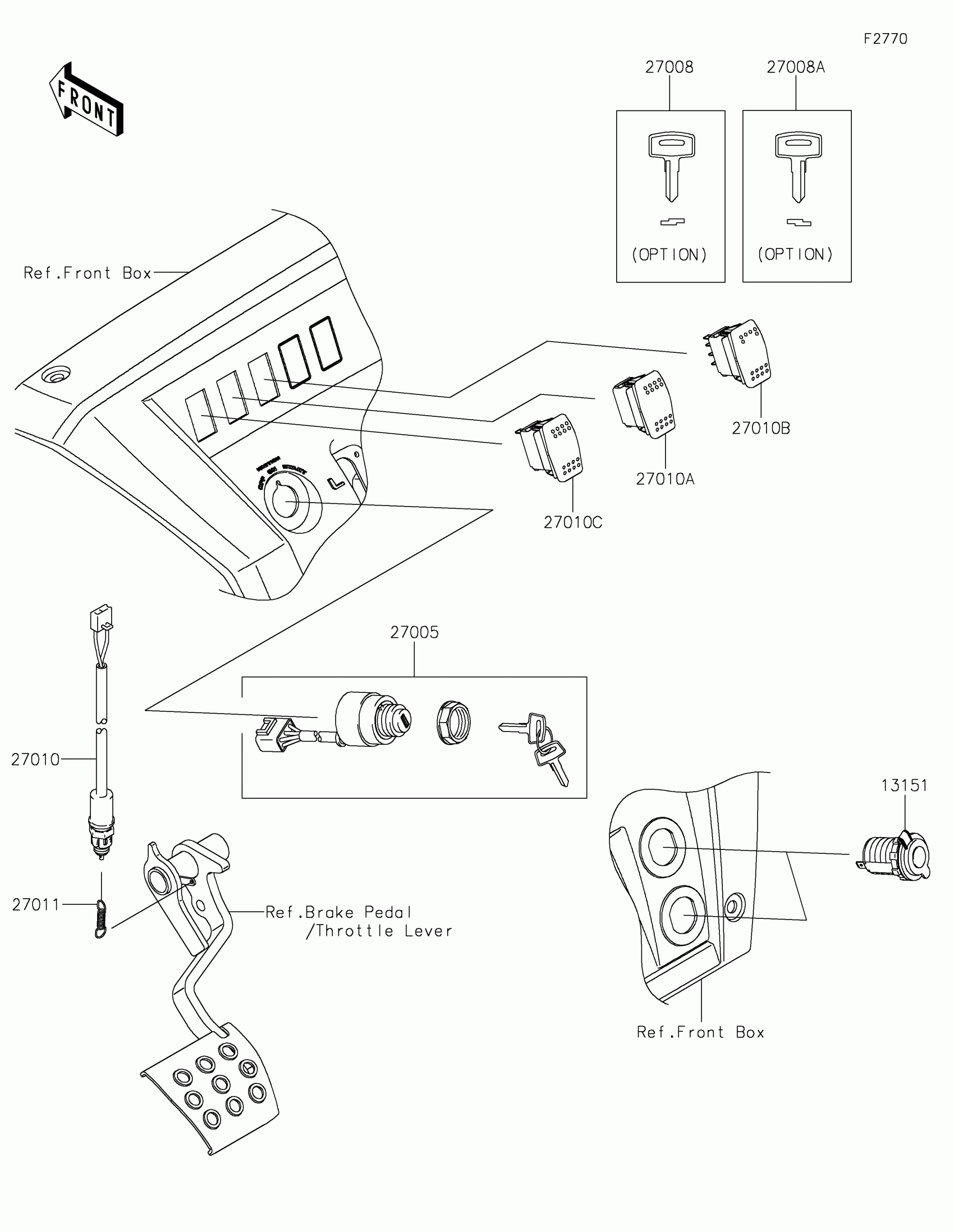

Kawasaki MULE PRO-FX™ 820 EPS Ignition Switch Diagram

#

Description
Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

27005

SWITCH-ASSY-IGNITION

27005-0643

$78.13

27008

KEY-LOCK,BLANK

27008-1153

$13.56

27008A

KEY-LOCK,BLANK

27008-1157

$13.56

27010

SWITCH,BRAKE

27010-0724

$30.46

27010A

SWITCH,2WD/4WD

27010-0751

$24.65

27010B

SWITCH,OUTER

27010-0806

$55.18

27010C

SWITCH,DIFF LOCK

27010-0810

$28.57

27011

SPRING,BRAKE LAMP SWITCH

27011-006

$4.14
