2025 Kawasaki Mule Pro-FX™ 820 Eps Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Mule Pro-FX™ 820 Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

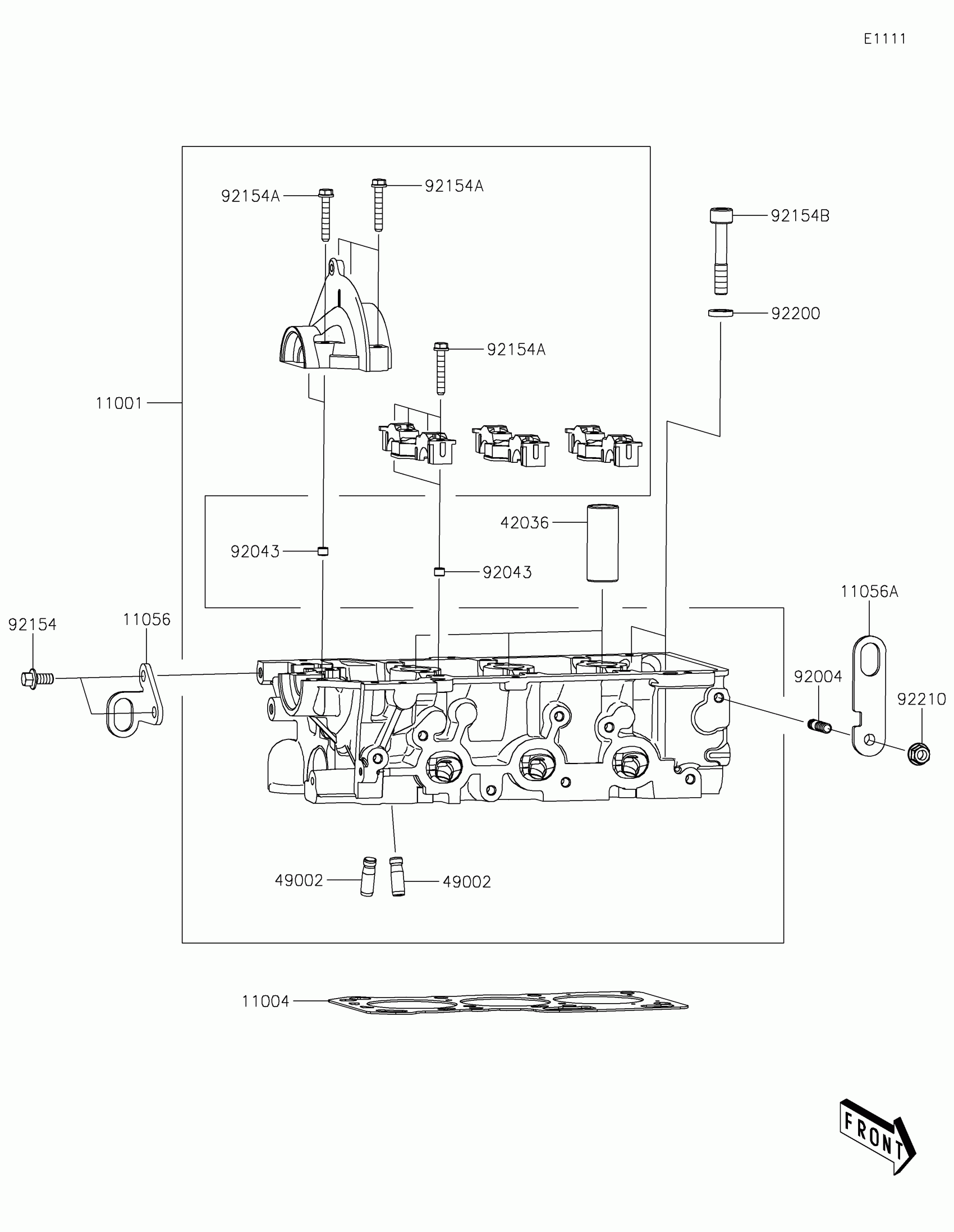

2025 Kawasaki Mule Pro-FX™ 820 Eps Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11001

HEAD-CYLINDER

11001-0839

1

$976.65

In stock

11004

GASKET-HEAD

11004-0747

1

$35.22

In stock

11056

BRACKET

11056-7081

1

$5.75

In stock

11056A

BRACKET

11056-7082

1

$5.61

In stock

42036

SLEEVE,SPARK PLUG

42036-0764

1

$14.24

In stock

49002

GUIDE-VALVE

49002-0030

1

$3.11

In stock

92004

STUD

92004-0734

1
Out of stock

92043

PIN

92043-0831

1

$0.98

In stock

92154

BOLT,FLANGED,8X16

92154-1588

1

$1.02

In stock

92154A

BOLT,6X38

92154-1589

1

$1.39

In stock

92154B

BOLT,SOCKET

92154-1590

1

$2.98

In stock

92200

WASHER

92200-1683

1
Out of stock

92210

NUT

92210-0944

1
Out of stock
