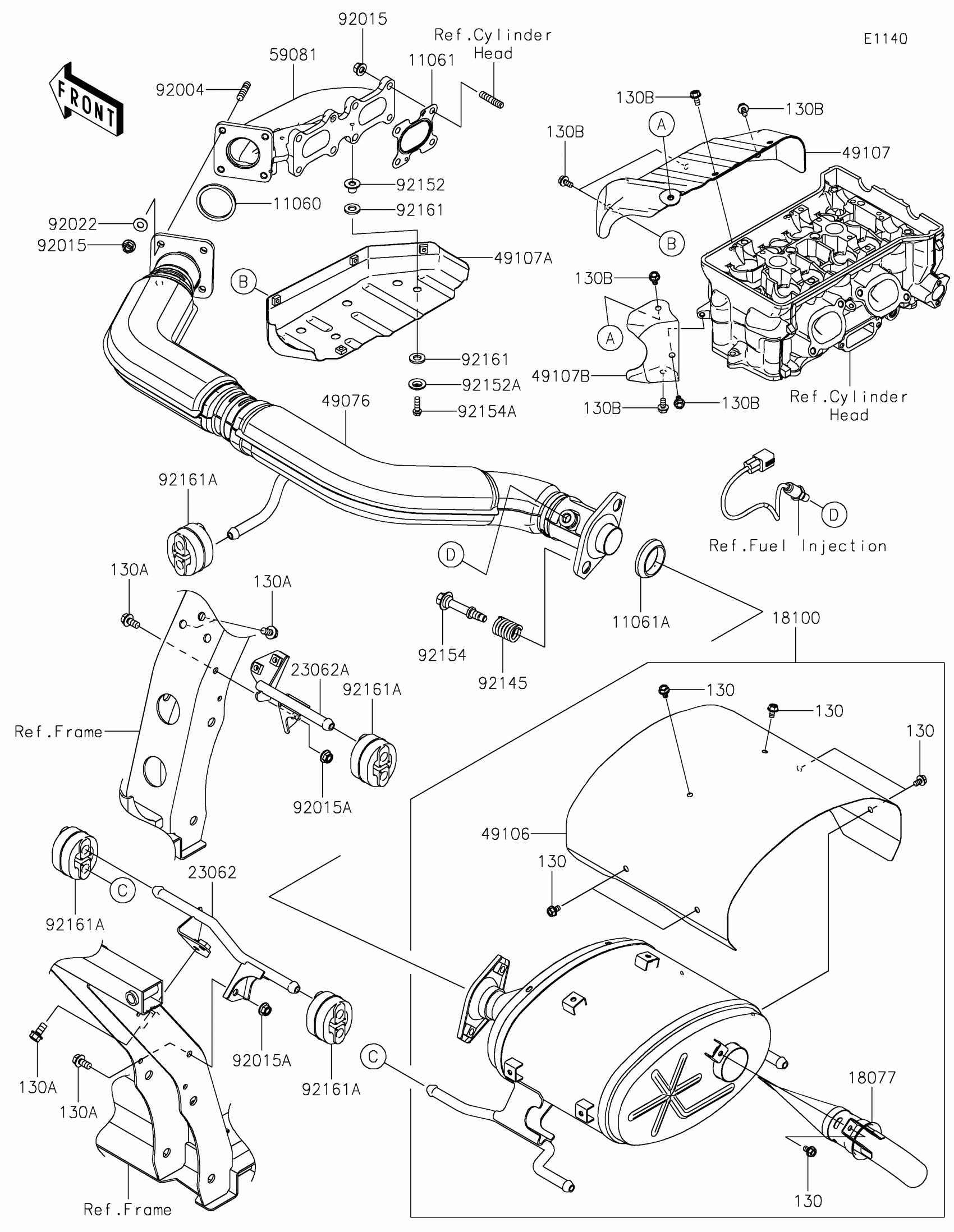

Kawasaki MULE PRO-FX™ 1000 HD EDITION Muffler(s) Diagram

Description

Price

11060

GASKET,EXHAUST PIPE

11060-1680

$8.50

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1310

$8.76

11061A

GASKET,MUFFLER

11061-1445

$36.04

18077

ARRESTER-SPARK

18077-0714

$99.61

18100

BODY-ASSY-MUFFLER

18100-0619

$983.74

23062

BRACKET-COMP,LEFT

23062-1410

$22.15

23062A

BRACKET-COMP,RIGHT

23062-1411

$17.02

49076

PIPE-ASSY-EXHAUST

49076-0002

$1,106.61

49106

COVER-MUFFLER

49106-0878

$201.06

49107

COVER-EXHAUST PIPE,UPPER

49107-0852

$210.92

49107A

COVER-EXHAUST PIPE,LOWER

49107-0853

$92.31

49107B

COVER-EXHAUST PIPE,SIDE

49107-0854

$54.91

59081

MANIFOLD-EXHAUST

59081-0471

$124.92

92004

STUD,8X25

92004-1214

Unavailable

92015

NUT,8MM

92015-1402

$3.72

92015A

NUT,8MM

92015-1432

$5.21

92022

WASHER,8.2X18X1.5

92022-1964

$3.33

92145

SPRING

92145-2262

$9.02

92152

COLLAR,6.8X10X11.6

92152-1699

$3.93

92152A

COLLAR

92152-3797

$2.27

92154

BOLT,MUFFLER

92154-4485

$8.75

92154A

BOLT-FLANGED-SMALL,6X20

92154-7254

$0.97

92161

DAMPER

92161-0319

$3.11

92161A

DAMPER

92161-2466

$23.63

130

BOLT-FLANGED,6X10

130BD0610

$3.24

130A

BOLT-FLANGED,8X16

130CA0816

$2.05

130B

BOLT-FLANGED,6X12

130CD0612

$1.53
