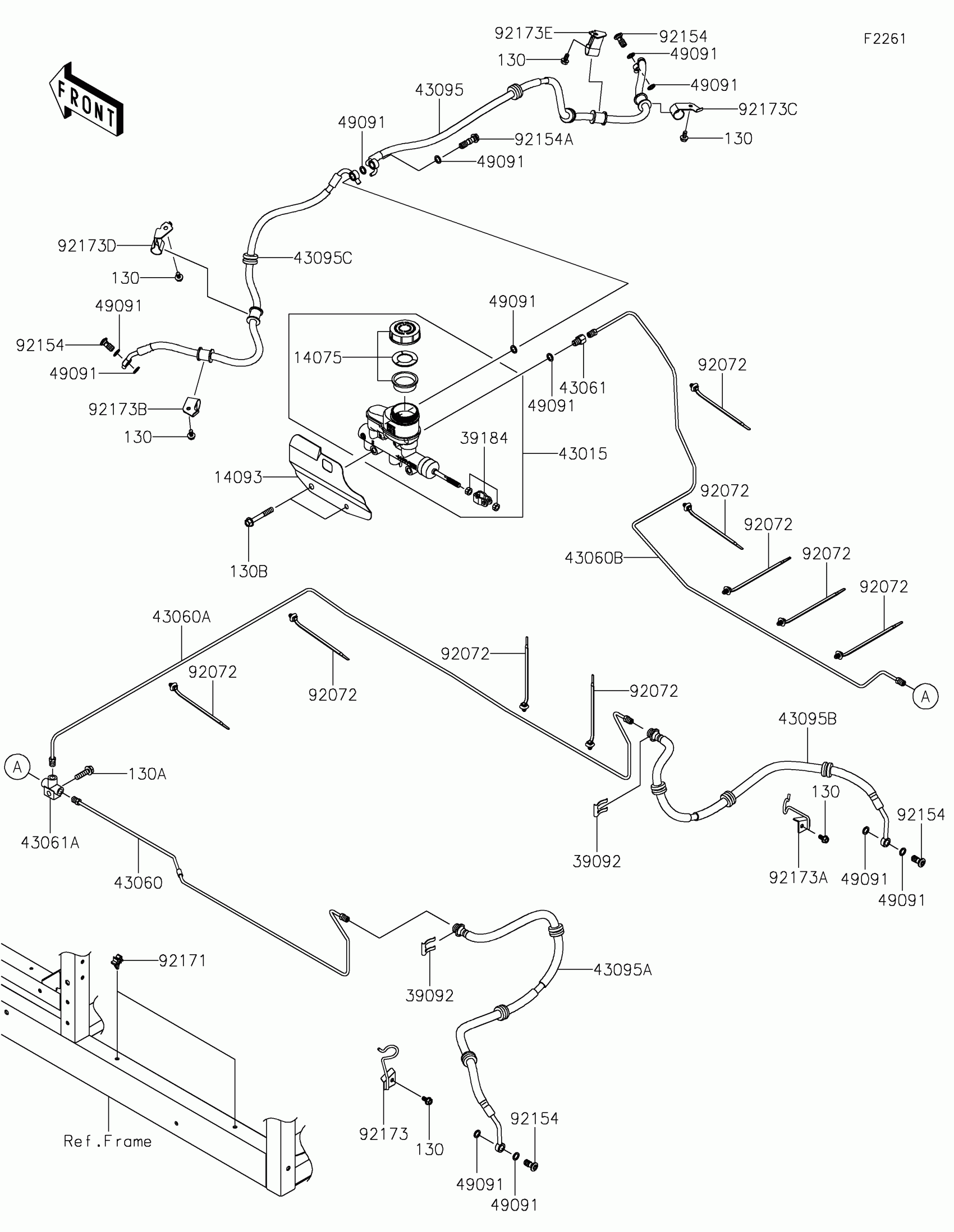

Kawasaki MULE PRO-FX™ 1000 HD EDITION Master Cylinder Diagram

Description

Price

14075

CAP-ASSY

14075-0038

$42.90

14093

COVER,M/C BODY

14093-1357

$4.34

39092

PIN-HAIR

39092-1052

$6.33

39184

BRACKET-ASSY

39184-0031

$21.27

43015

CYLINDER-ASSY-MASTER

43015-0595

$194.50

43060

PIPE-BRAKE,LH

43060-0318

$26.64

43060A

PIPE-BRAKE,RH

43060-0319

$38.14

43060B

PIPE-BRAKE

43060-0360

$40.49

43061

JOINT-BRAKE,M/C

43061-0302

$33.87

43061A

JOINT-BRAKE

43061-1063

$36.46

43095

HOSE-BRAKE,1068.5MM

43095-1883

$49.56

43095A

HOSE-BRAKE,857MM

43095-1884

$39.33

43095B

HOSE-BRAKE,777MM

43095-1885

$38.31

43095C

HOSE-BRAKE,738.5MM

43095-1886

$43.20

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$6.43

92154A

BOLT,OIL,10X34.5

92154-1398

$7.47

92171

CLAMP

92171-0805

$3.11

92173

CLAMP

92173-1217

$8.46

92173A

CLAMP

92173-1218

$8.46

92173B

CLAMP

92173-2571

$5.86

92173C

CLAMP

92173-2572

$5.86

92173D

CLAMP

92173-2651

$3.49

92173E

CLAMP

92173-2652

$3.49

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,8X30

130BA0830

$1.68

130B

BOLT-FLANGED,8X55

130BA0855

$1.90
