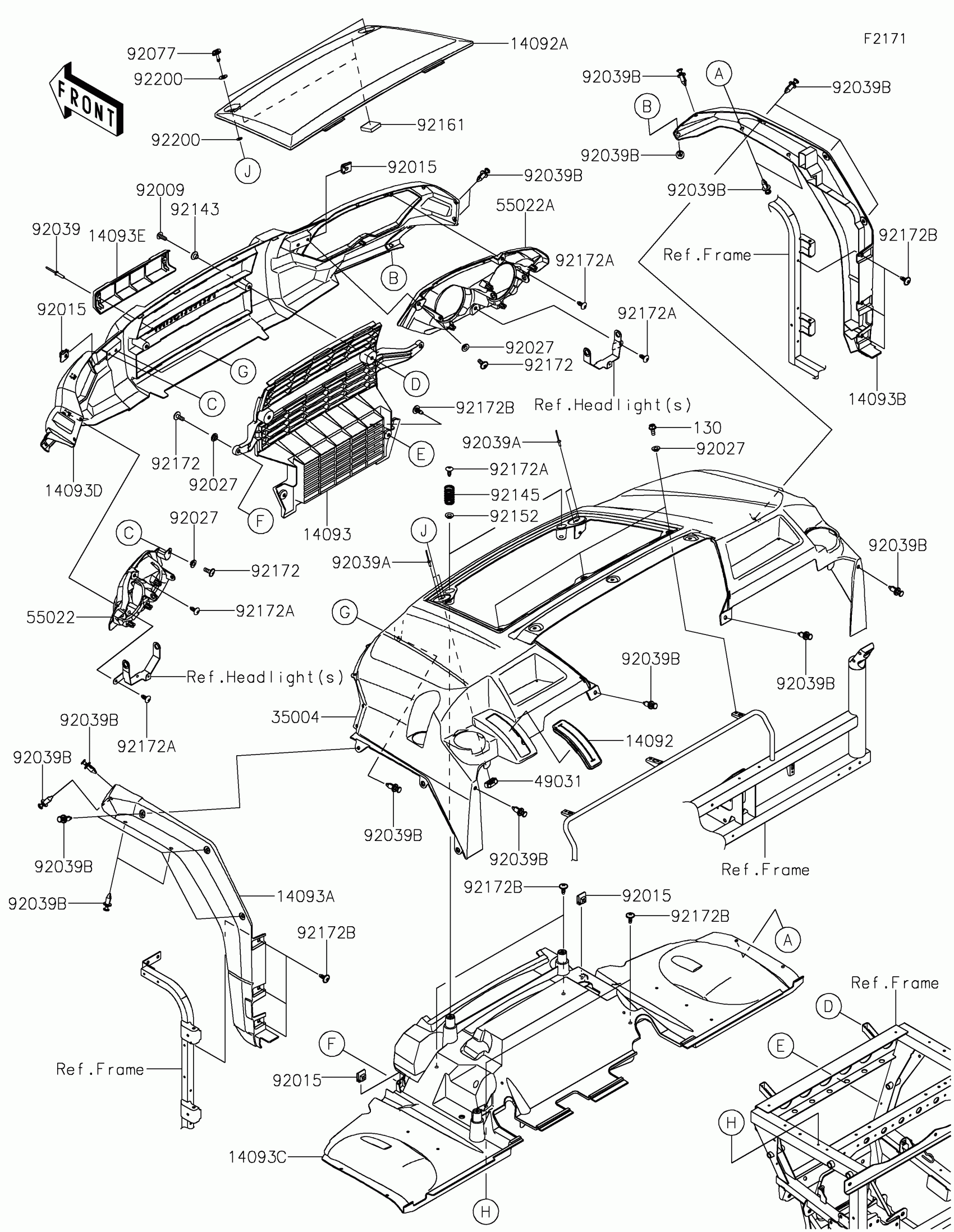

Kawasaki MULE PRO-FX™ 1000 HD EDITION Front Fender(s) Diagram

Description

Price

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.58

14092A

COVER,OPEN,F.RED

14092-1177-6L

$160.76

14093

COVER,RADIATOR

14093-0584

$63.90

14093A

COVER,SIDE,LH

14093-0596

$76.00

14093B

COVER,SIDE,RH

14093-0597

$76.00

14093C

COVER,TOP,FR INNER

14093-1405

$102.81

14093D

COVER,FR GRILLE,S.BLACK

14093-1423-839

$202.82

14093E

COVER,FR GRILLE,LOGO

14093-1434

$5.76

35004

FENDER-FRONT,F.RED

35004-0335-6L

$336.29

49031

LATCH

49031-0008

$1.53

55022

COVER-HEAD LAMP,LH

55022-0322

$15.51

55022A

COVER-HEAD LAMP,RH

55022-0323

$15.51

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT,CLAMP,6MM

92015-1678

$4.37

92027

COLLAR,L=4.6

92027-1168

$3.97

92039

RIVET,4.0X17.5

92039-0703

$0.97

92039A

RIVET,3.2X9.5

92039-0785

$2.02

92039B

RIVET

92039-0865

$0.80

92077

KNOB

92077-0030

$2.44

92143

COLLAR

92143-1057

$3.97

92145

SPRING,17X65

92145-1727

$2.03

92152

COLLAR

92152-0140

$4.63

92161

DAMPER,40X40X10

92161-1861

$2.05

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0284

$0.94

92172B

SCREW,6X16

92172-0826

$1.88

92200

WASHER

92200-0503

$2.10

130

BOLT-FLANGED,6X14

130BA0614

$1.12
