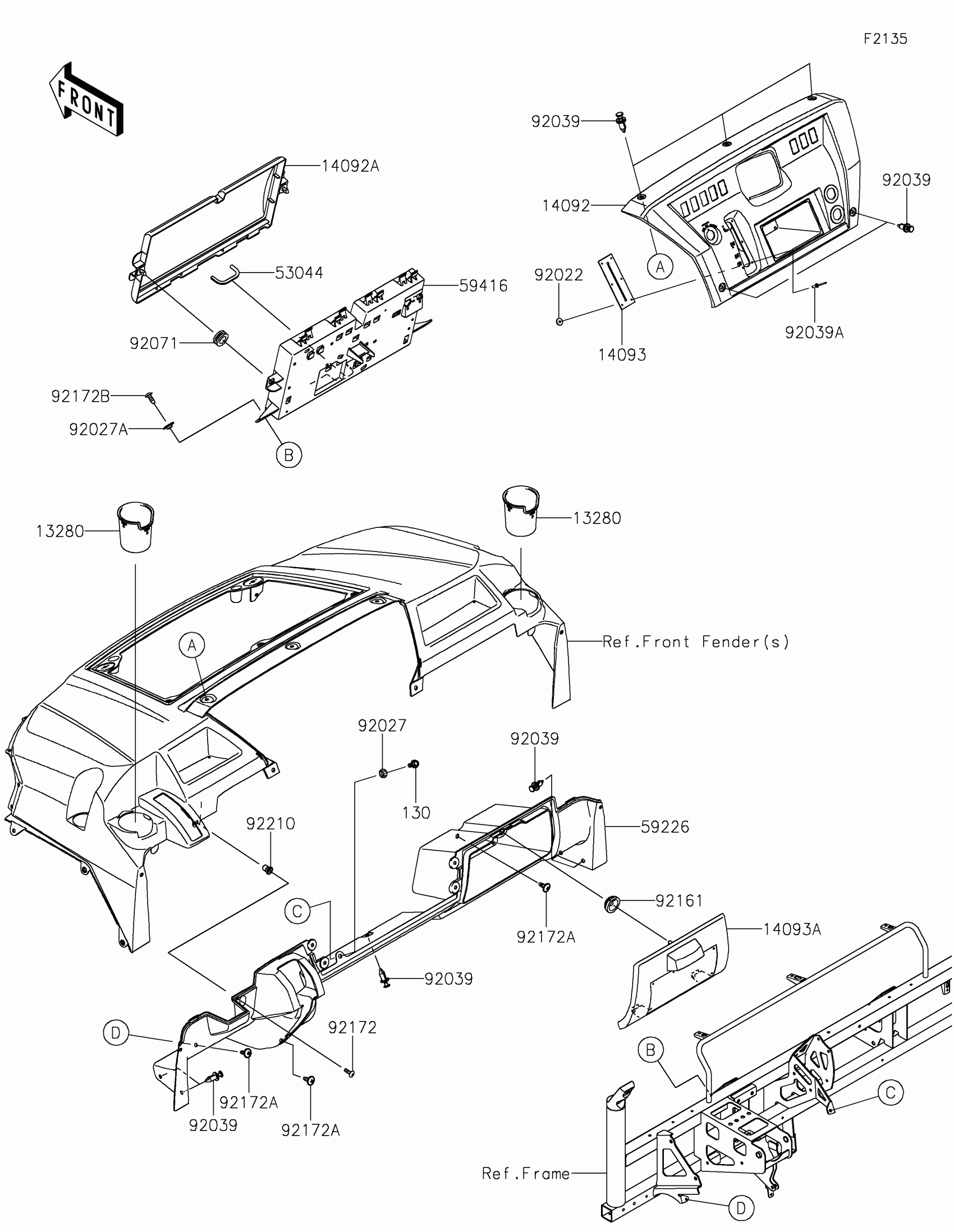

Kawasaki MULE PRO-FX™ 1000 HD EDITION Front Box Diagram

Description

Price

13280

HOLDER,CUP

13280-0774

$10.58

14092

COVER,DASHBOARD

14092-1192

$72.68

14092A

COVER,ELECTRIC BOX

14092-1197

$39.99

14093

COVER,SHIFT LEVER

14093-0146

$2.20

14093A

COVER,GLOVE BOX

14093-1061

$23.36

53044

TRIM

53044-0572

$1.81

59226

PANEL-CONTROL

59226-0042

$117.10

59416

CASE-ELECTRIC

59416-0026

$39.13

92022

WASHER,3.3X12X1.2

92022-1407

$3.20

92027

COLLAR,L=4.6

92027-1168

$3.97

92027A

COLLAR,L=5.1

92027-1260

$4.93

92039

RIVET

92039-0865

$0.80

92039A

RIVET

92039-1231

$1.54

92071

GROMMET

92071-1131

$6.18

92161

DAMPER,7.8X30X11

92161-1953

$1.08

92172

SCREW,5MM

92172-0292

$2.71

92172A

SCREW,6X16

92172-0711

$2.44

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,WELL,5MM

92210-0370

$4.47

130

BOLT-FLANGED,6X16

130CA0616

$1.53
