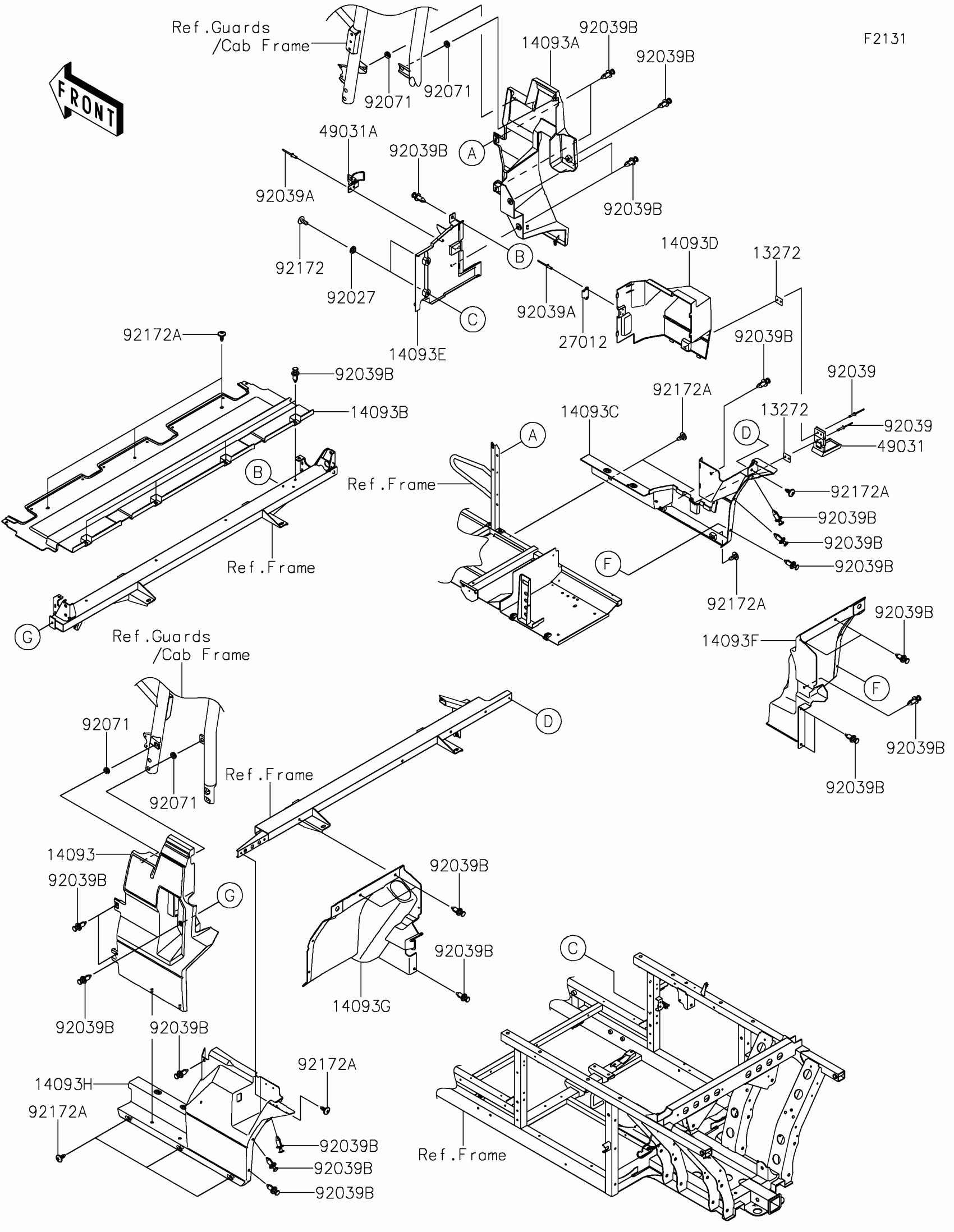

Kawasaki MULE PRO-FX™ 1000 HD EDITION Frame Fittings(Rear) Diagram

Description

Price

13272

PLATE,LATCH

13272-1828

$0.98

14093

COVER,SIDE,LH,FR,F.BLACK

14093-0167-6Z

$36.81

14093A

COVER,SIDE,RH,FR,F.BLACK

14093-0168-6Z

$36.81

14093B

COVER,SEAT,BACK

14093-0171

$55.54

14093C

COVER,SIDE,RH,RR

14093-0173

$50.27

14093D

COVER,SIDE,RH,A/C MAINT.

14093-0371

$47.97

14093E

COVER,SIDE,RH,A/C,FR

14093-0372

$22.32

14093F

COVER,RR,FLOOR,MUD,RH

14093-0389

$70.10

14093G

COVER,RR,FLOOR,MUD,LH

14093-1198

$76.55

14093H

COVER,SIDE,LH,RR

14093-1199

$88.63

27012

HOOK,STRIKER

27012-0806

$2.39

49031

LATCH,A/C

49031-0007

$4.00

49031A

LATCH,TOGGLE

49031-0015

$6.22

92027

COLLAR,L=4.6

92027-1168

$3.97

92039

RIVET,3.2X13.4

92039-0739

$2.05

92039A

RIVET

92039-0747

$2.05

92039B

RIVET

92039-0865

$0.80

92071

GROMMET

92071-056

$3.39

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0711

$2.44
