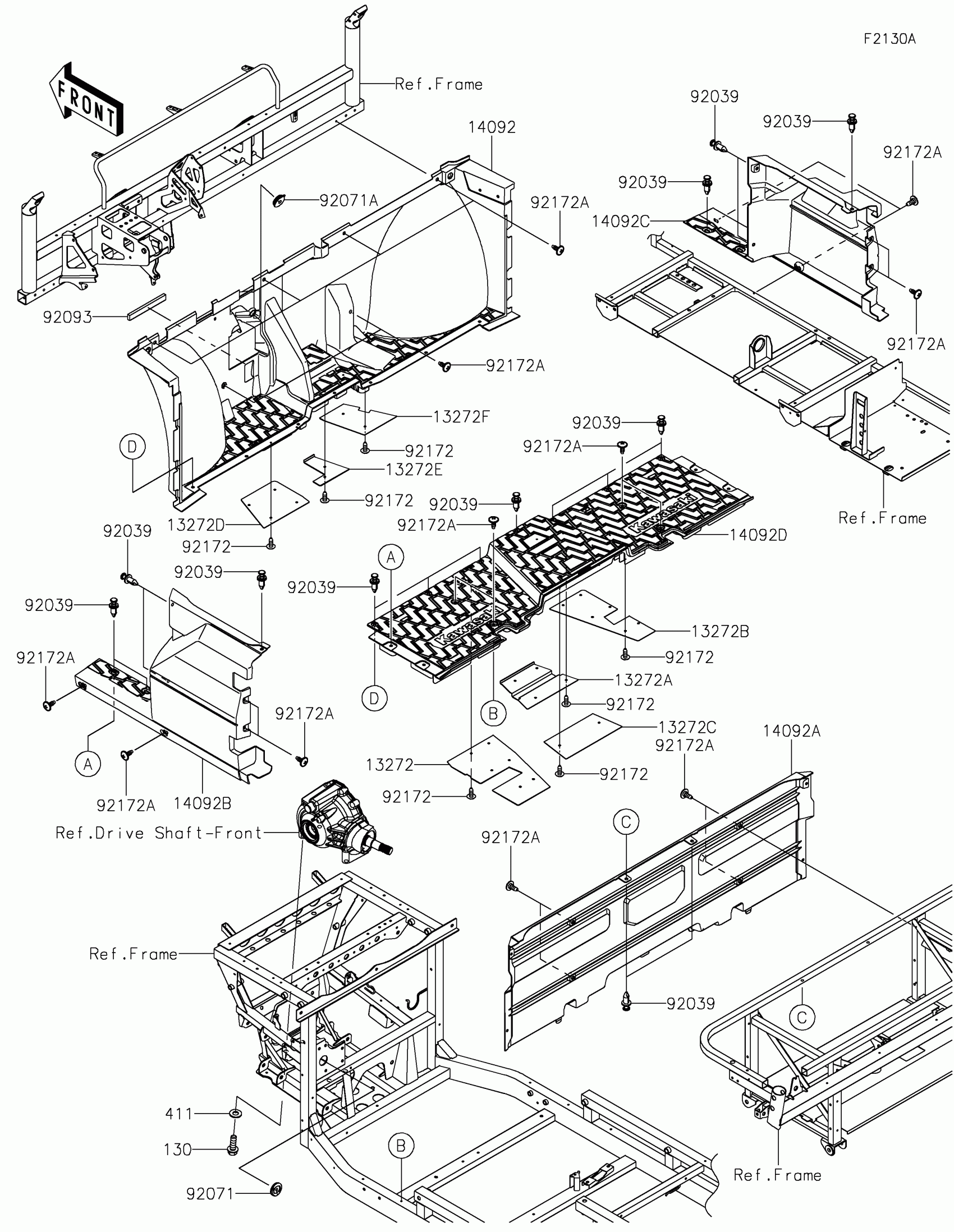

Kawasaki MULE PRO-FX™ 1000 HD EDITION Frame Fittings(Front)(LTFNN/LTFNL) Diagram

Description

Price

13272

PLATE,FR FLOOR,LH

13272-7270

$44.65

13272A

PLATE,FR FLOOR,MID,FR

13272-7271

$44.65

13272B

PLATE,FR FLOOR,RH

13272-7272

$44.65

13272C

PLATE,FR FLOOR,MID,RR

13272-7273

$16.86

13272D

PLATE,DASH,LWR,LH

13272-7275

$16.86

13272E

PLATE,DASH,LWR,MID

13272-7276

$16.86

13272F

PLATE,DASH,LWR,RH

13272-7277

$16.86

14092

COVER,FR FLOOR

14092-1184

$245.36

14092A

COVER,FR SEAT

14092-1185

$115.40

14092B

COVER,SIDE,LH,FR

14092-1188

$80.74

14092C

COVER,SIDE,RH,FR

14092-1189

$80.74

14092D

COVER,FLOOR,BOTTOM

14092-1196

$218.39

92039

RIVET

92039-0865

$0.80

92071

GROMMET,9X45X9

92071-0728

$1.32

92071A

GROMMET,8X22X8

92071-0753

$4.32

92093

SEAL,10X20X165

92093-0617

$3.11

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,6X16

92172-0711

$2.44

130

BOLT-FLANGED,12X35

130CA1235

$2.92

411

WASHER-PLAIN,12MM

411AA1200

$0.93
