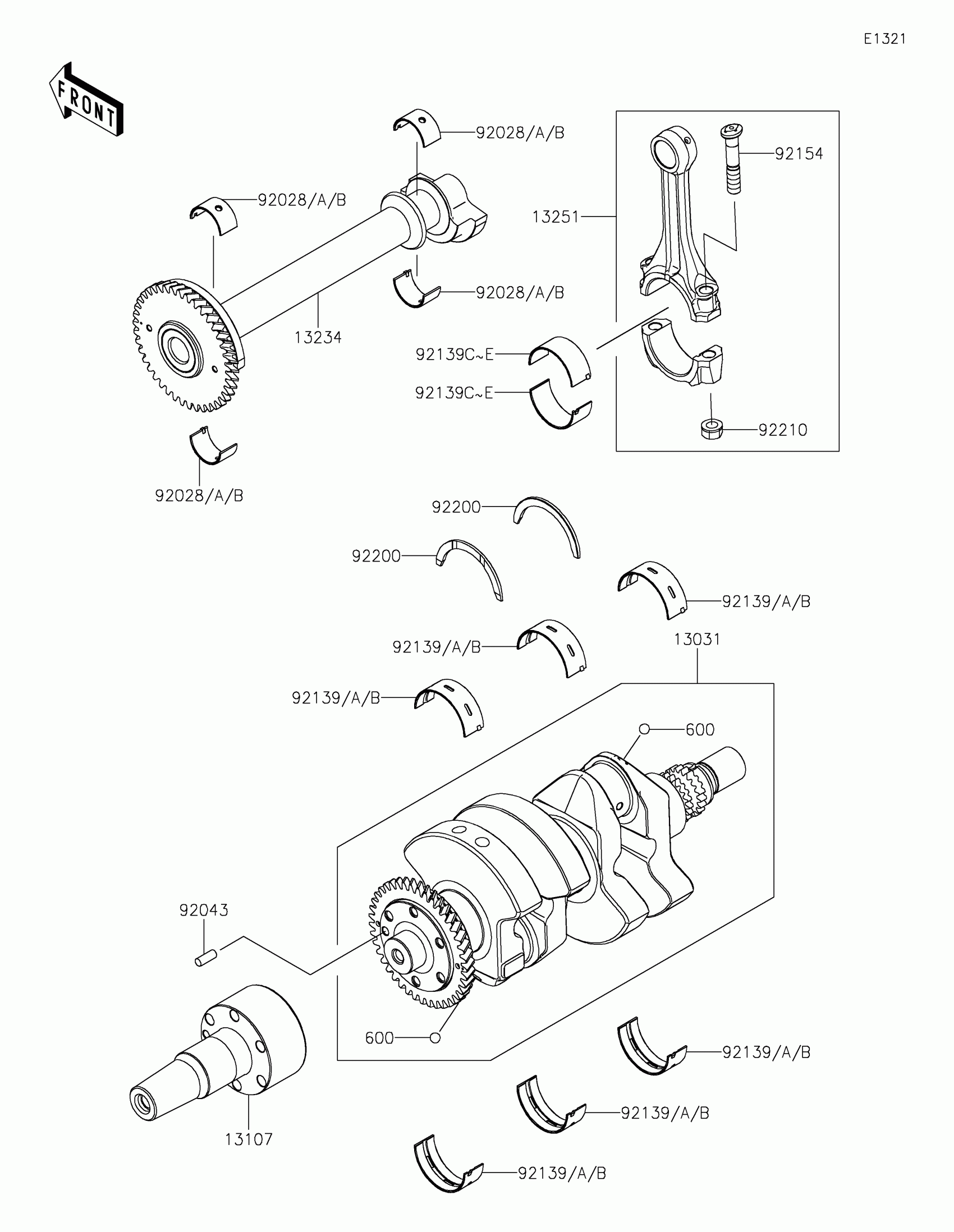

Kawasaki MULE PRO-FX™ 1000 HD EDITION Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1531

$1,430.71

13107

SHAFT,CONVERTER-DRIVE

13107-0982

$408.47

13234

SHAFT-COMP,BALANCER

13234-0633

$389.93

13251

ROD-ASSY-CONNECTING,J

13251-0749-JJ

$255.83

92028

BUSHING,BALANCER SHAFT,BLUE

92028-1909

$14.36

92028A

BUSHING,BALANCER SHAFT,BLACK

92028-1910

$17.10

92028B

BUSHING,BALANCER SHAFT,BROWN

92028-1911

$17.10

92043

PIN,6X16

92043-1690

$3.97

92139

BUSHING,CRANKSHAFT,BLUE

92139-0925

$19.61

92139A

BUSHING,CRANKSHAFT,BLACK

92139-0926

$19.61

92139B

BUSHING,CRANKSHAFT,BROWN

92139-0927

$19.61

92139C

BUSHING,CONNECTING ROD,BLUE

92139-1197

$14.61

92139D

BUSHING,CONNECTING ROD,BLACK

92139-1198

$14.61

92139E

BUSHING,CONNECTING ROD,BROWN

92139-1199

$14.61

92154

BOLT,CONNECTING ROD

92154-3911

$8.10

92200

WASHER,THRUST,T=2.5

92200-2242

$8.28

92210

NUT,FLANGED,9MM

92210-1673

$1.93

600

BALL-STEEL,11/32"

600A1100

$0.69
