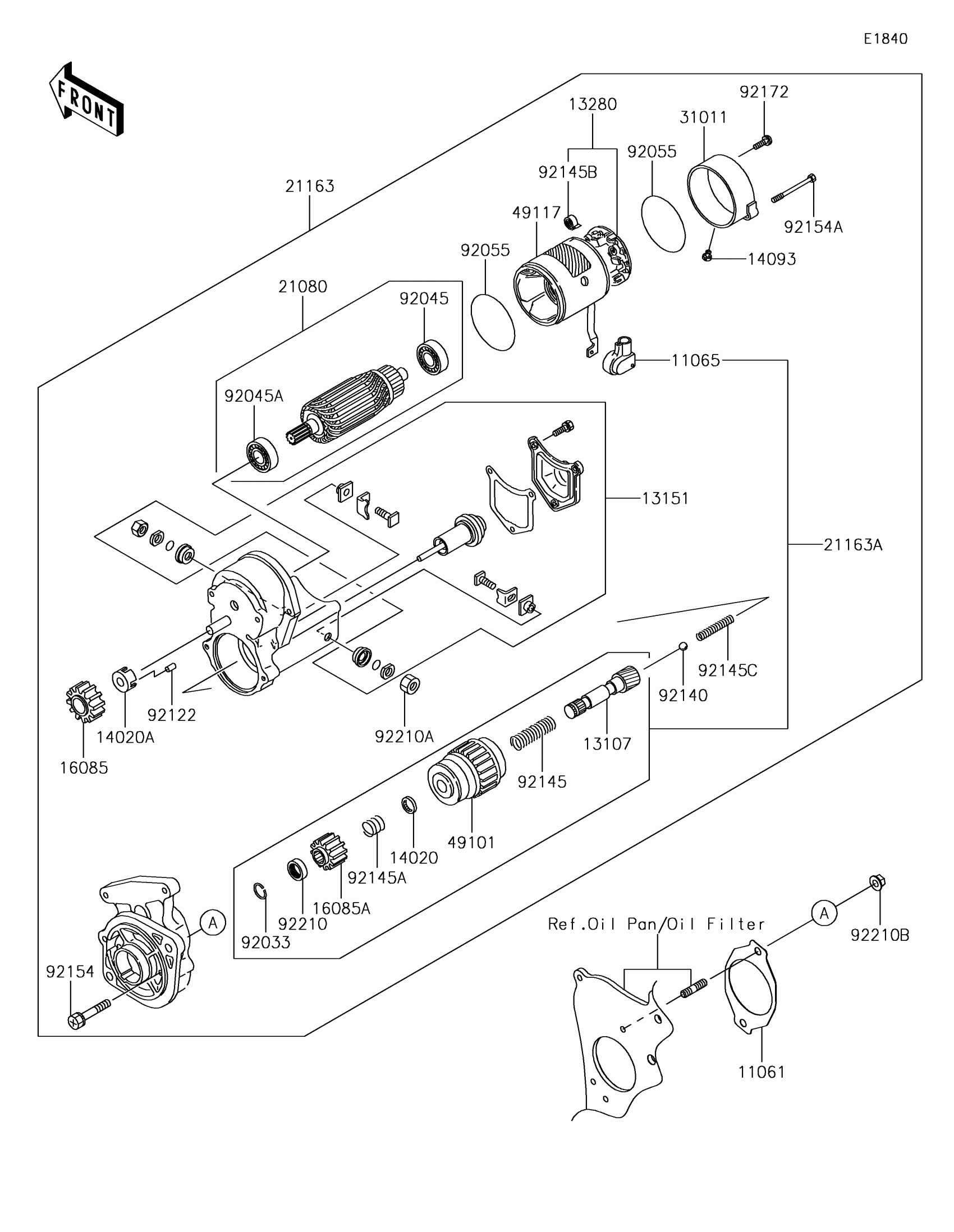

Kawasaki MULE PRO-DXT™ Starter Motor Diagram

#

Description
Price

11061

GASKET,STARTER

11061-1195

$21.51

11065

CAP

11065-0939

$9.12

13107

SHAFT

13107-0841

$131.93

13151

SWITCH-COMP,MAGNET

13151-0573

$831.65

13280

HOLDER

13280-0863

$65.93

14020

RETAINER

14020-0020

$4.93

14020A

RETAINER

14020-0021

$13.63

14093

COVER

14093-0449

$14.46

16085

GEAR,PINION

16085-0649

$205.85

16085A

GEAR,PINION

16085-0652

$36.73

21080

ARMATURE

21080-0010

$511.84

21163

STARTER-ELECTRIC

21163-0752

$1,247.74

21163A

STARTER-ELECTRIC

21163-0753

$461.69

31011

FRAME

31011-0029

$40.22

49101

CLUTCH,STARTER

49101-0002

$267.40

49117

YOKE

49117-0593

$134.94

92033

RING-SNAP

92033-0775

$9.80

92045

BEARING-BALL

92045-0808

$25.83

92045A

BEARING-BALL

92045-0809

$32.43

92055

RING-O

92055-0863

$5.93

92122

ROLLER

92122-0048

$2.37

92140

BALL

92140-0017

$2.03

92145

SPRING

92145-1713

$14.46

92145A

SPRING

92145-1714

$2.34

92145B

SPRING

92145-1715

$3.53

92145C

SPRING

92145-1716

$7.42

92154

BOLT

92154-2072

$7.49

92154A

BOLT

92154-2073

$8.19

92172

SCREW

92172-0988

$5.63

92210

NUT

92210-1470

$4.25

92210A

NUT

92210-1472

$3.93

92210B

NUT,8MM

92210-1473

$1.47
