2018 Kawasaki Mule PRO-DXT™ Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2018 Kawasaki Mule PRO-DXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

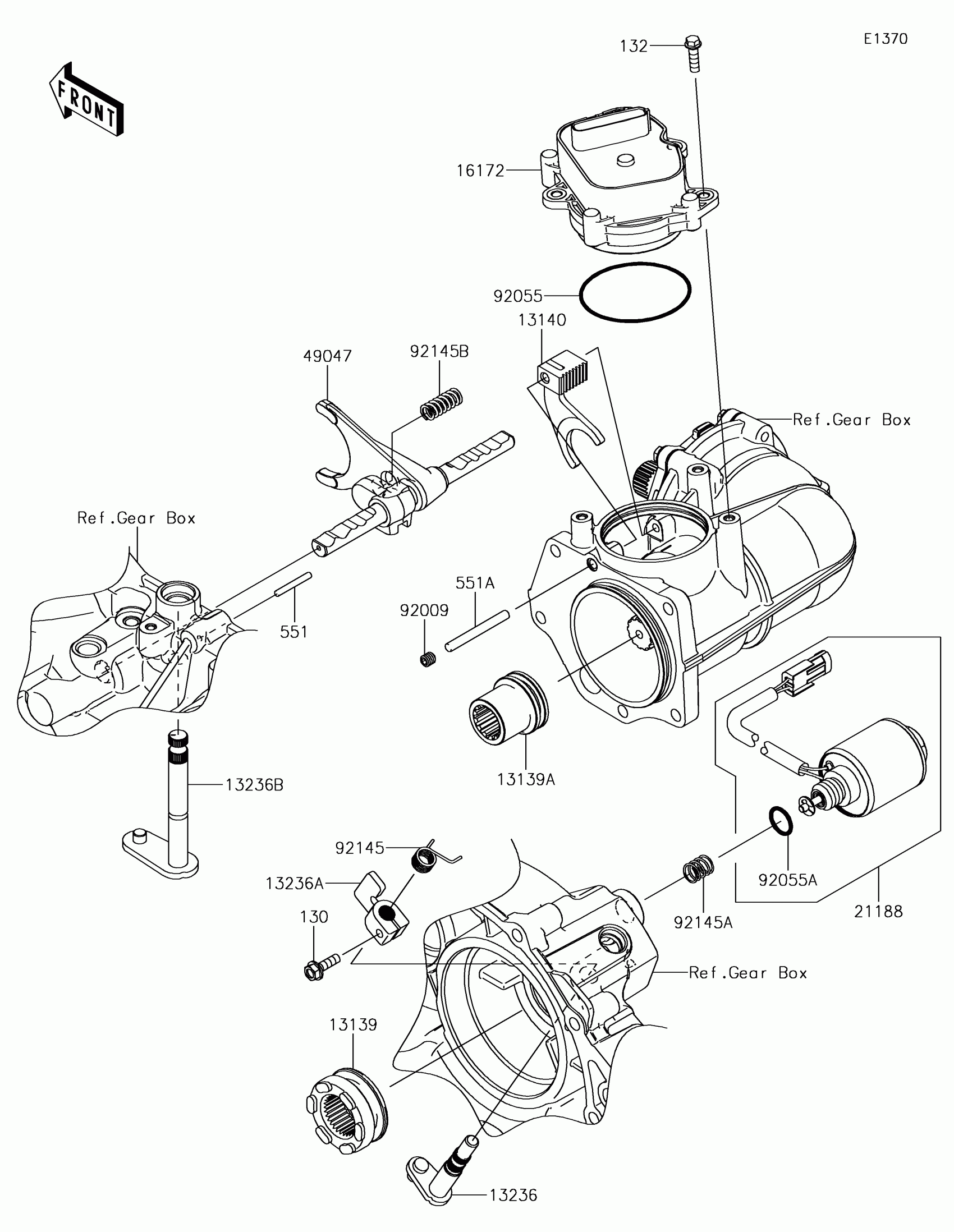

2018 Kawasaki Mule PRO-DXT™ Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

13139

SHIFTER

13139-0019

1
Out of stock

13139A

SHIFTER

13139-0021

1
Out of stock

13140

FORK-SHIFT

13140-0667

1
Out of stock

132

1

$2.05

In stock

13236

LEVER-COMP,DIFF LOCK

13236-0744

1
Out of stock

13236A

LEVER-COMP,DIFF LOCK

13236-0745

1
Out of stock

13236B

LEVER-COMP,CHANGE SHIFT

13236-0746

1
Out of stock

16172

ACTUATOR

16172-0030

1
Out of stock

21188

SOLENOID

21188-0010

1
Out of stock

49047

ROD-SHIFT

49047-0044

1
Out of stock

551

PIN-DOWEL

551A0432

1
Out of stock

551A

PIN-DOWEL,6X56

551A0656

1
Out of stock

92009

SCREW,SOCKET,8X8

92009-1977

1
Out of stock

92055

RING-O,1.9X71.8

92055-0781

1
Out of stock

92055A

RING-O

92055-0829

1
Out of stock

92145

SPRING

92145-1572

1
Out of stock

92145A

SPRING

92145-1573

1
Out of stock

92145B

SPRING

92145-1574

1
Out of stock
