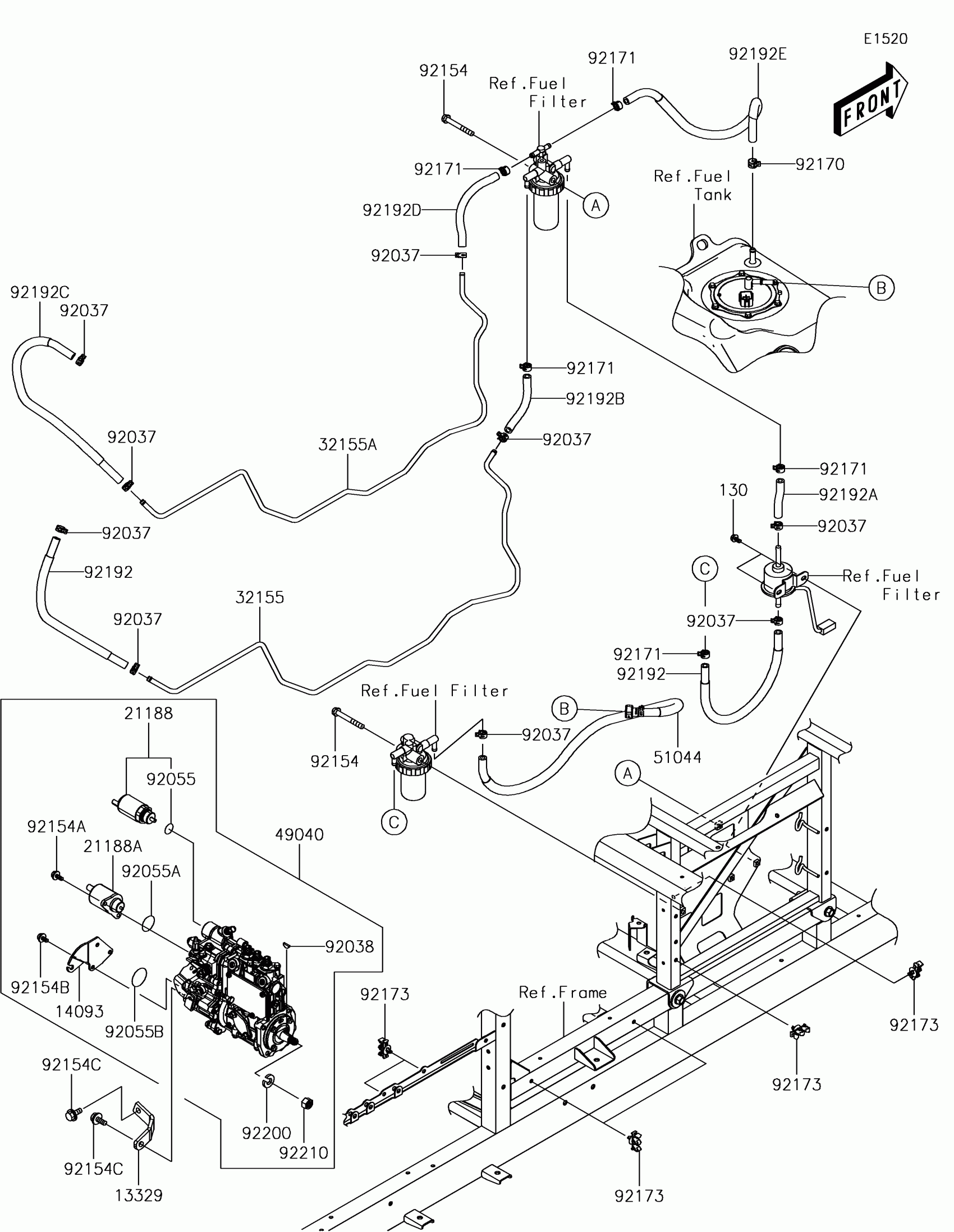

Kawasaki MULE PRO-DXT™ Fuel Pump Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

13329

SUPPORT

13329-0001

$17.85

14093

COVER,GOVERNOR CASE

14093-0448

$33.02

21188

SOLENOID,POWER CONTROL

21188-0012

$172.48

21188A

SOLENOID,STOP

21188-0013

$205.85

32155

PIPE,FEED

32155-2047

$66.36

32155A

PIPE,RETURN

32155-2048

$66.36

49040

PUMP-FUEL,INJECTION

49040-0751

$3,141.77

51044

TUBE-ASSY

51044-0785

$101.12

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92038

KEY,WOODRUFF

92038-0008

$4.22

92055

RING-O

92055-0859

$8.19

92055A

RING-O

92055-0860

$2.37

92055B

RING-O

92055-0861

$3.56

92154

BOLT,FLANGED,8X63

92154-1940

$3.19

92154A

BOLT,FLANGED,6X14

92154-1997

$2.05

92154B

BOLT,FLANGED,6X10

92154-2068

$1.71

92154C

BOLT,FLANGED,8X16

92154-2071

$1.71

92170

CLAMP

92170-1938

$2.84

92171

CLAMP

92171-0515

$5.56

92173

CLAMP

92173-1467

$2.64

92192

TUBE,7.5X13.5X390

92192-1476

$41.91

92192A

TUBE,PUMP-FILTER

92192-1477

$18.27

92192B

TUBE,FILER-ENGINE(FILTER SIDE)

92192-1478

$25.78

92192C

TUBE,ENGINE-FILER(ENGINE SIDE)

92192-1479

$59.40

92192D

TUBE,ENGINE-FILER(FILTER SIDE)

92192-1480

$24.31

92192E

TUBE,FILTER-TANK

92192-1481

$67.75

92200

WASHER,SPRING

92200-1810

$2.05

92210

NUT,12MM

92210-1486

$2.37
