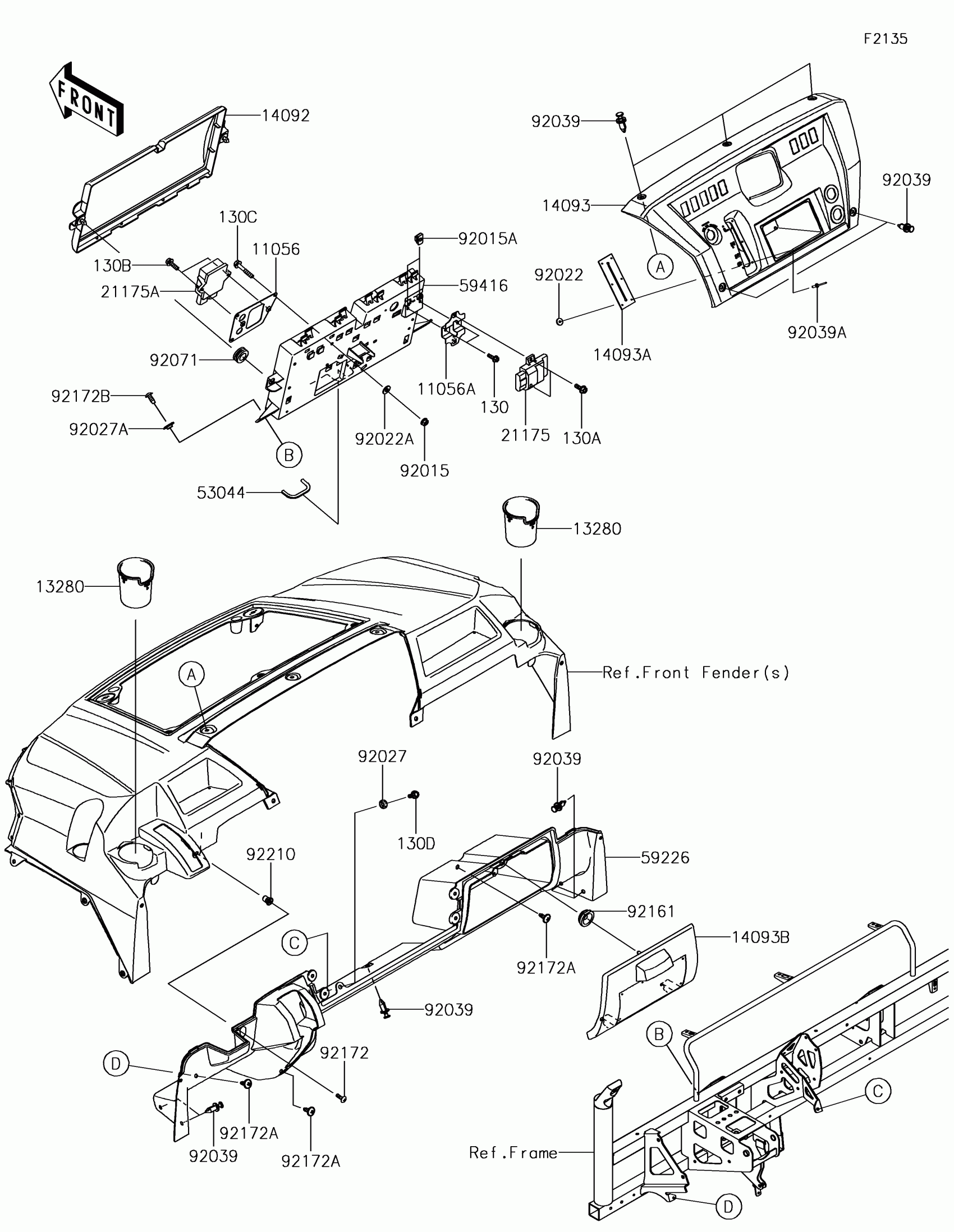

Kawasaki MULE PRO-DXT™ Front Box Diagram

#

Description
Price

11056

BRACKET,SOLENOID

11056-7476

$5.79

11056A

BRACKET,CONTROLLER

11056-7477

$9.49

130

BOLT-FLANGED,5X16

130BA0516

$0.73

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

130C

BOLT-FLANGED,6X35

130BA0635

$0.78

130D

BOLT-FLANGED,6X16

130CA0616

$1.32

13280

HOLDER,CUP

13280-0774

$10.16

14092

COVER,ELECTRIC BOX

14092-1197

$39.99

14093

COVER,DASHBOARD

14093-0072

$72.68

14093A

COVER,SHIFT LEVER

14093-0146

$2.20

14093B

COVER,GLOVE BOX

14093-0611

$20.78

21175

ECU,VEHICLE CONTROLLER(DRIVE)

21175-1105

$641.62

21175A

ECU,AIR PRESSURE SENSOR(FUEL)

21175-1113

$548.43

53044

TRIM

53044-0572

$1.81

59226

PANEL-CONTROL

59226-0042

$117.10

59416

CASE-ELECTRIC

59416-0025

$39.13

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,5MM

92015-1627

$4.47

92022

WASHER,3.3X12X1.2

92022-1407

$3.20

92022A

WASHER

92022-2247

$0.57

92027

COLLAR,L=4.6

92027-1168

$3.81

92027A

COLLAR,L=5.1

92027-1260

$4.67

92039

RIVET

92039-0776

$0.80

92039A

RIVET

92039-1231

$1.33

92071

GROMMET

92071-1131

$5.93

92161

DAMPER,7.8X30X11

92161-1953

$0.93

92172

SCREW,5MM

92172-0292

$2.34

92172A

SCREW,6X16

92172-0711

$2.11

92172B

SCREW,TAPPING,6X16

92172-0739

$0.73

92210

NUT,WELL,5MM

92210-0370

$4.27
