2025 Kawasaki Mule PRO-DXT™ FE EPS Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2025 Kawasaki Mule PRO-DXT™ FE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

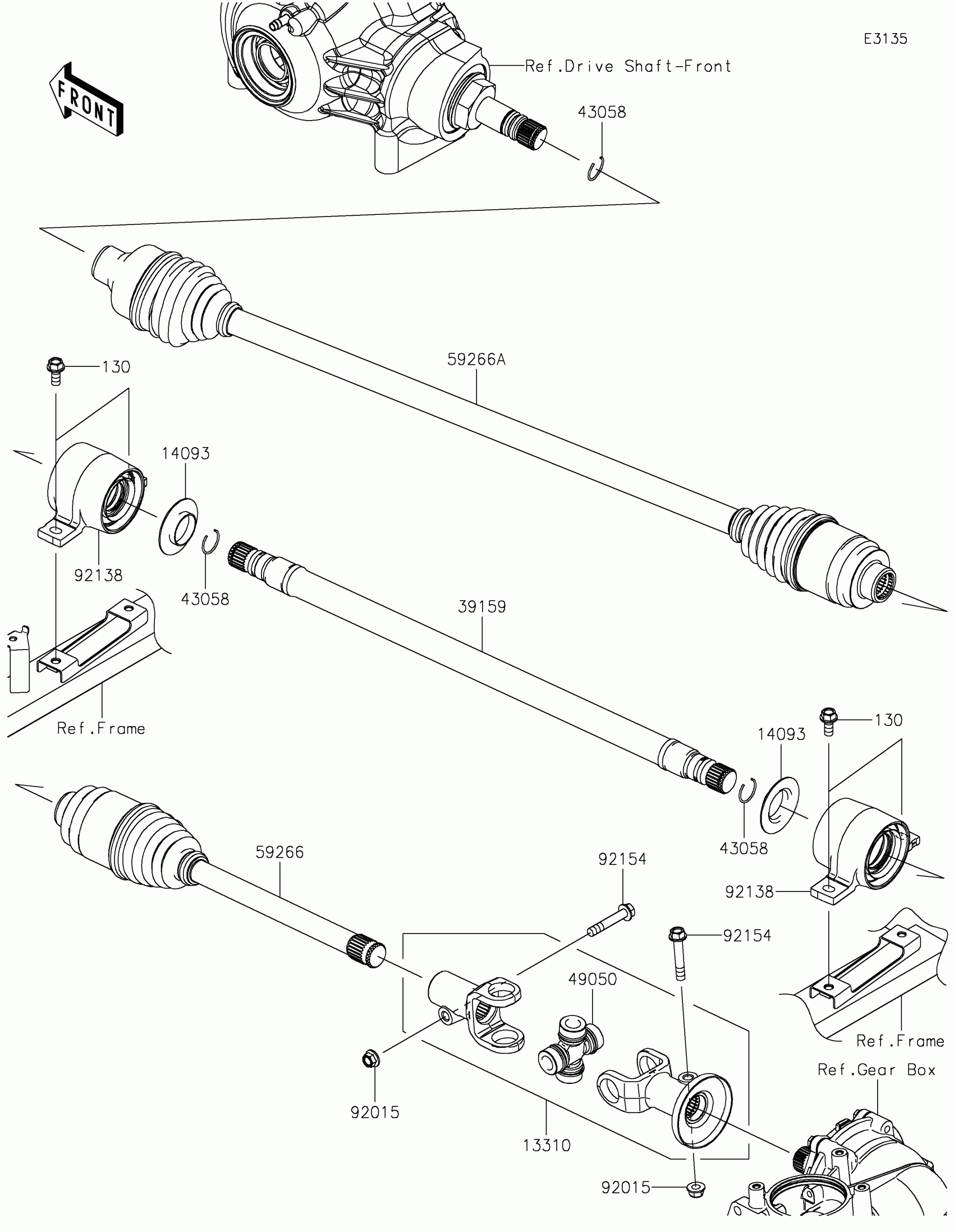

2025 Kawasaki Mule PRO-DXT™ FE EPS Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13310

SHAFT-ASSY

13310-0038

1

$142.13

In stock

14093

COVER,SIDE RIP

14093-0006

1
Out of stock

39159

SHAFT-DRIVE

39159-0045

1

$218.03

In stock

43058

RING

43058-0018

1
Out of stock

49050

SPIDER

49050-0034

1
Out of stock

59266

JOINT-BALL,T/M SIDE

59266-0716

1
Out of stock

59266A

JOINT-BALL,FR DIFF SIDE

59266-0735

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92138

BEARING-COMP

92138-0002

1
Out of stock

92154

BOLT,FLANGED,8X46

92154-1365

1
Out of stock

130

BOLT-FLANGED,8X18

130BA0818

1

$2.10

In stock
