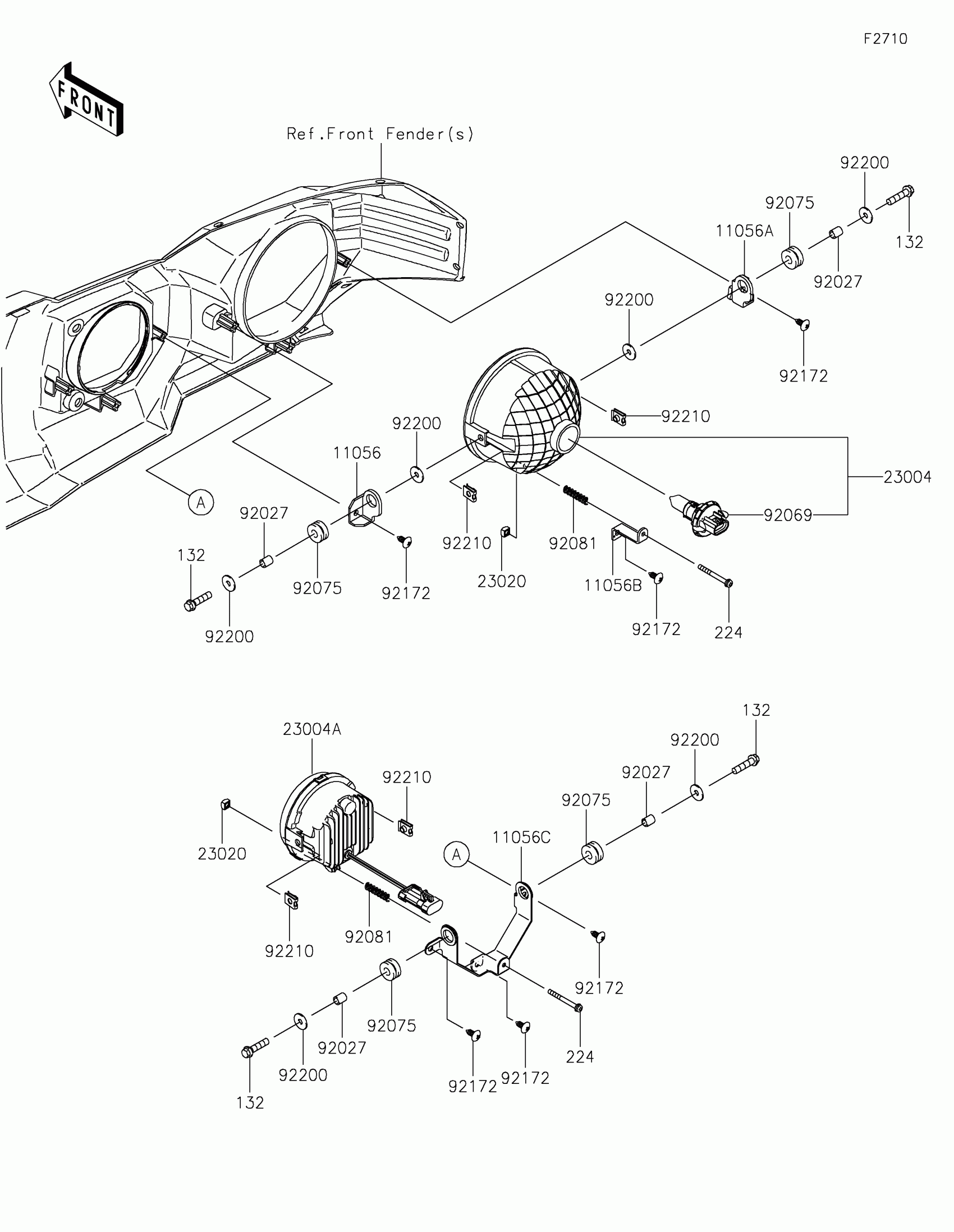

Kawasaki MULE PRO-DXT™ EPS LE Headlight(s) Diagram

Description

Price

11056

BRACKET,LH

11056-2931

$3.41

11056A

BRACKET,RH

11056-2932

$3.41

11056B

BRACKET

11056-2933

$3.41

11056C

BRACKET,LAMP STAY

11056-3857

$19.51

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

224

SCREW-PAN-WP-CROS

224AA0440

$1.47

23004

LAMP-HEAD

23004-0339

$156.14

23004A

LAMP-HEAD

23004-0372

$146.36

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,H13-12-8V

92069-0082

$45.88

92075

DAMPER,10X24X12

92075-1690

$3.97

92081

SPRING,FOCUS ADJUST

92081-1896

$4.16

92172

SCREW,6X16

92172-0284

$0.94

92200

WASHER,6.5X20X1.6

92200-0283

$1.25

92210

NUT

92210-1125

$3.78
