2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

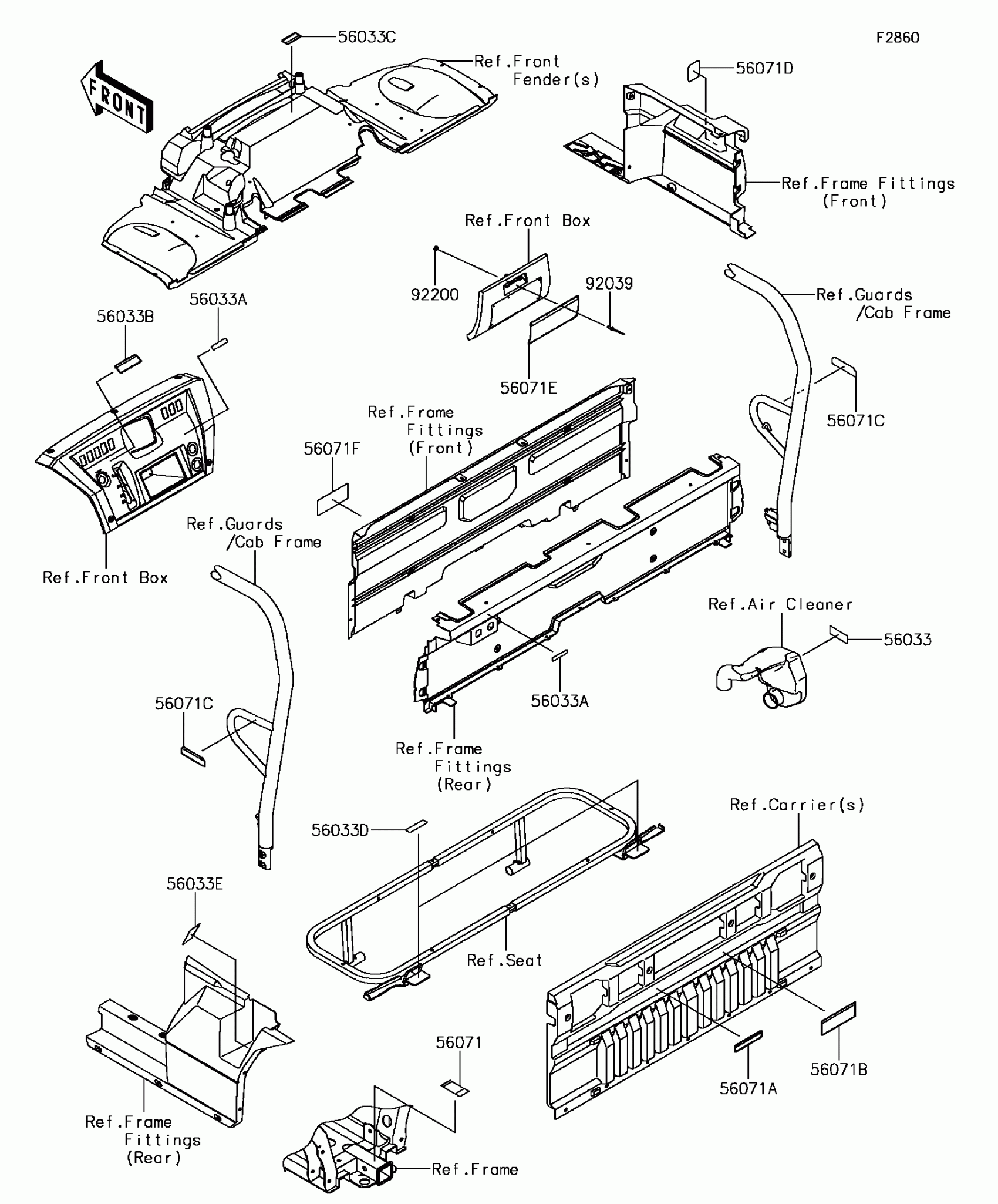

2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

LABEL-MANUAL,AIR CLEANER

56033-0724

1
Out of stock

56033A

LABEL-MANUAL,DC OUTLET

56033-0814

1
Out of stock

56033B

LABEL-MANUAL,SHIFT NOTICE

56033-0822

1
Out of stock

56033C

LABEL-MANUAL,FRONT HOOD

56033-0825

1
Out of stock

56033D

LABEL-MANUAL,REAR SEAT

56033-0829

1
Out of stock

56033E

LABEL-MANUAL,DRIVE BELT

56033-0831

1
Out of stock

56071

LABEL-WARNING,GENERAL

56071-0433

1
Out of stock

56071A

LABEL-WARNING,TRAILER HITCH

56071-0436

1
Out of stock

56071B

LABEL-WARNING,SCREEN OPERATION

56071-0471

1
Out of stock

56071C

LABEL-WARNING,CARGO CAPA.

56071-0478

1
Out of stock

56071D

LABEL-WARNING,BED OPERATION

56071-0494

1
Out of stock

56071E

LABEL-WARNING,DIESEL

56071-0542

1
Out of stock

56071F

LABEL-WARNING,TIRE&LOAD

56071-0685

1
Out of stock

92039

RIVET,3.2X8

92039-3763

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock
