2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Control Diagram

← All diagrams

Find the part on the Control diagram for your 2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

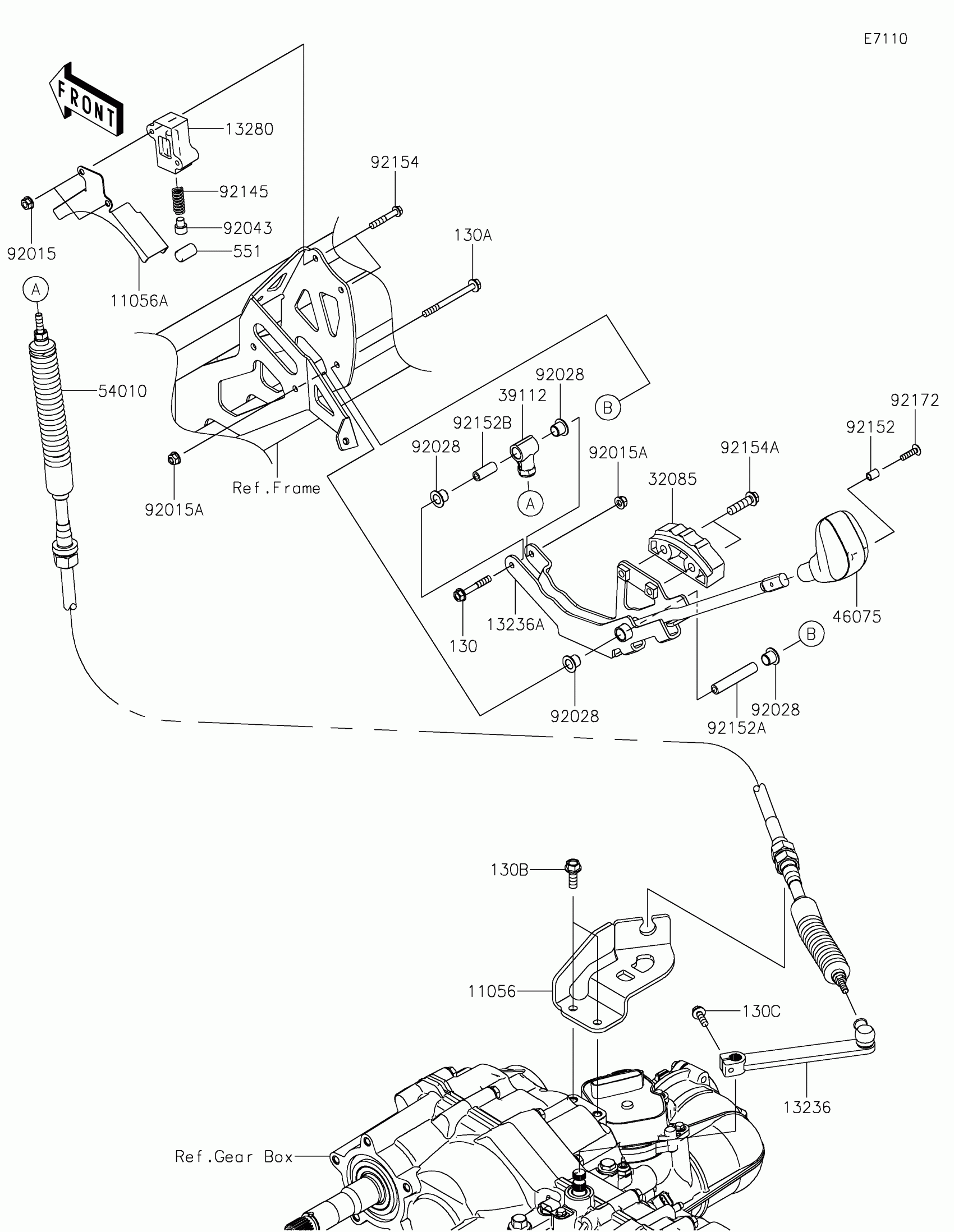

2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,T/M SIDE

11056-2946

1
Out of stock

11056A

BRACKET,DUST COVER

11056-7274

1
Out of stock

130

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock

130A

BOLT-FLANGED,6X70

130BA0670

1

$3.65

In stock

130B

BOLT-FLANGED,8X22

130BA0822

1

$2.59

In stock

130C

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

13236

LEVER-COMP,T/M SIDE

13236-0747

1
Out of stock

13236A

LEVER-COMP,SHIFT

13236-0748

1
Out of stock

13280

HOLDER

13280-0776

1

$33.87

In stock

32085

STOPPER

32085-0748

1
Out of stock

39112

RODEND-TIE

39112-0020

1

$25.83

In stock

46075

GRIP

46075-0569

1

$21.39

In stock

54010

CABLE,SHIFT

54010-0601

1
Out of stock

551

PIN-DOWEL,12X20

551R1220

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92043

PIN

92043-0790

1
Out of stock

92145

SPRING

92145-1578

1
Out of stock

92152

COLLAR,5.6X8X10.5

92152-1545

1
Out of stock

92152A

COLLAR,6X10X56.5

92152-1823

1
Out of stock

92152B

COLLAR,6X10X25

92152-1854

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1544

1
Out of stock

92154A

BOLT,FLANGED,8X30

92154-1907

1
Out of stock

92172

SCREW,5X20

92172-2081

1
Out of stock
