Description

Price

11056

BRACKET,STOPPER

11056-2848

$19.44

11056A

BRACKET,SUPPORT

11056-4273

$20.58

11065

CAP

11065-0848

$2.37

11065A

CAP

11065-7504

$1.32

13272

PLATE

13272-1597

$1.05

14037

SCREEN

14037-0771

$717.09

14092

COVER,SIDE PANEL,RR,LH,F.BLACK

14092-1179-6Z

$102.78

14092A

COVER,SIDE PANEL,RR,RH,F.BLACK

14092-1180-6Z

$102.78

14092B

COVER,SIDE PANEL,L&R

14092-1181

$22.14

14093

COVER,SCREEN

14093-0301

$81.94

16073

INSULATOR,265X335

16073-0813

$10.25

16073A

INSULATOR,295X705

16073-0816

$23.71

16073B

INSULATOR,335X705

16073-0835

$12.98

16073C

INSULATOR,115X705

16073-0836

$7.58

27012

HOOK,SCREEN

27012-0787

$18.88

31064

PIPE-COMP,RR,LH

31064-0634

$116.79

31064A

PIPE-COMP,RR,RH

31064-0635

Unavailable

31064B

PIPE-COMP,MIDDLE,LH

31064-0638

$47.76

31064C

PIPE-COMP,MIDDLE,RH

31064-0639

$47.76

31064D

PIPE-COMP,FR,LH

31064-0640

$60.69

31064E

PIPE-COMP,FR,RH

31064-0641

$60.69

32155

PIPE

32155-1533

$64.17

39137

STAY-COMP

39137-0661

$40.50

46102

ROD

46102-0606

$11.25

49048

SHOE,SCREEN

49048-0005

$5.34

53009

HINGE

53009-0031

$3.14

53029

CARRIER,BASE

53029-0341

$903.91

53045

HOOK-ASSY,MAIN LOCK

53045-0025

$21.49

53045A

HOOK-ASSY,MAIN CLAMP

53045-0026

$23.72

53045B

HOOK-ASSY

53045-0029

$5.19

53062

GATE-TAIL

53062-0022

$125.99

92004

STUD

92004-0733

$2.44

92022

WASHER,8.2X19X2

92022-1533

$4.85

92022A

WASHER,23X32X2.3

92022-1618

$5.42

92039

RIVET,3.2X8

92039-3763

$1.54

92043

PIN,12.4X72.4

92043-0716

$7.15

92071

GROMMET

92071-0012

$3.62

92075

DAMPER

92075-1882

$6.44

92093

SEAL,20X720X10

92093-0679

$19.69

92152

COLLAR,6.8X10X9.3

92152-1799

$1.88

130

BOLT-FLANGED,6X14

130BA0614

$1.12

130A

BOLT-FLANGED,8X12

130BA0812

$0.92

130B

BOLT-FLANGED,8X20

130BA0820

$3.27

130C

BOLT-FLANGED,6X16

130CA0616

$1.53

220

SCREW-PAN-CROS,6X10

220AB0610

$1.54

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.98

550

PIN-COTTER,3.0X30

550AA3030

$2.08

554

PIN-SNAP,12MM

554DA1200

$2.74

92152A

COLLAR

92152-2128

$1.81

92154

BOLT,FLANGED,5X4.5

92154-0974

$2.19

92154A

BOLT,FLANGED,6X22

92154-1356

$1.32

92161

DAMPER

92161-0590

$3.51

92161A

DAMPER

92161-1615

$26.79

92161B

DAMPER,12.5X20X24

92161-1634

$1.46

92161C

DAMPER

92161-1656

$1.22

92161D

DAMPER,17X6

92161-1708

$0.69

92161E

DAMPER,10X40X10

92161-1775

$7.47

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,6X16

92172-0711

$2.44

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,FUEL PIPE

92173-1213

$1.32

92200

WASHER,6.5X16X2.0

92200-1543

$1.95

92200A

WASHER,6.5X16X0.5

92200-1769

$0.90

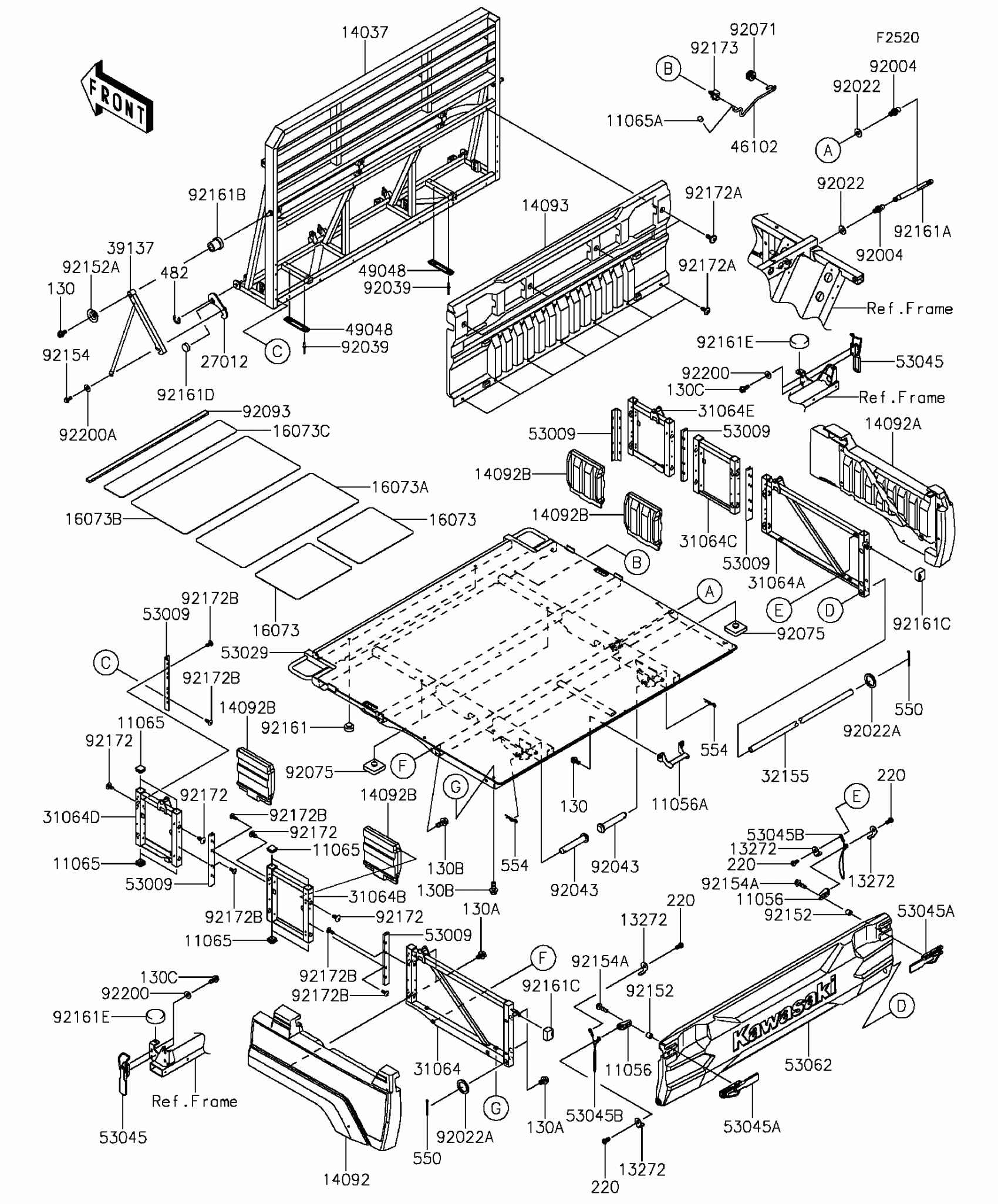

Kawasaki MULE PRO-DXT™ EPS DIESEL Carrier(s) Diagram

PIPE-COMP,RR,RH
