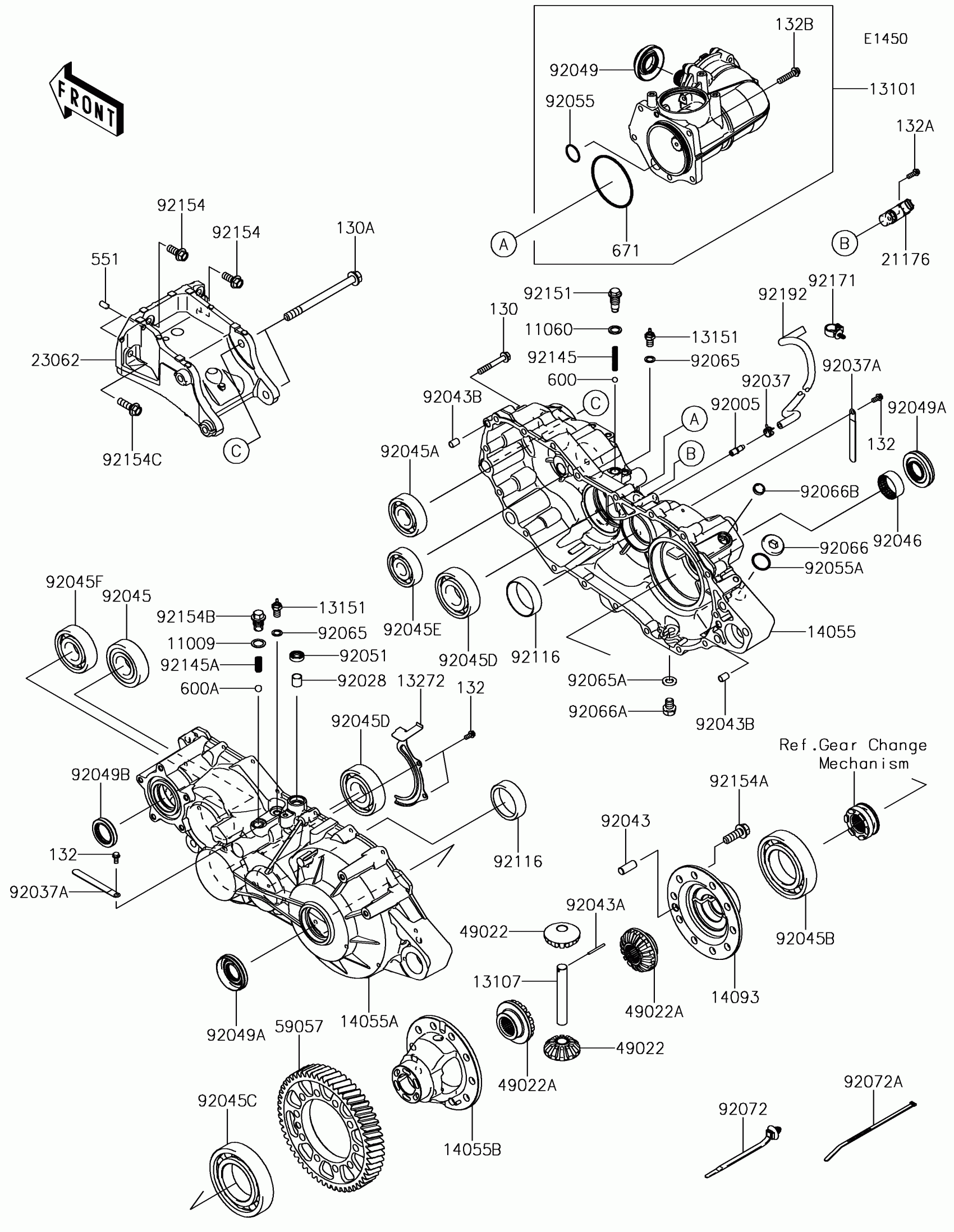

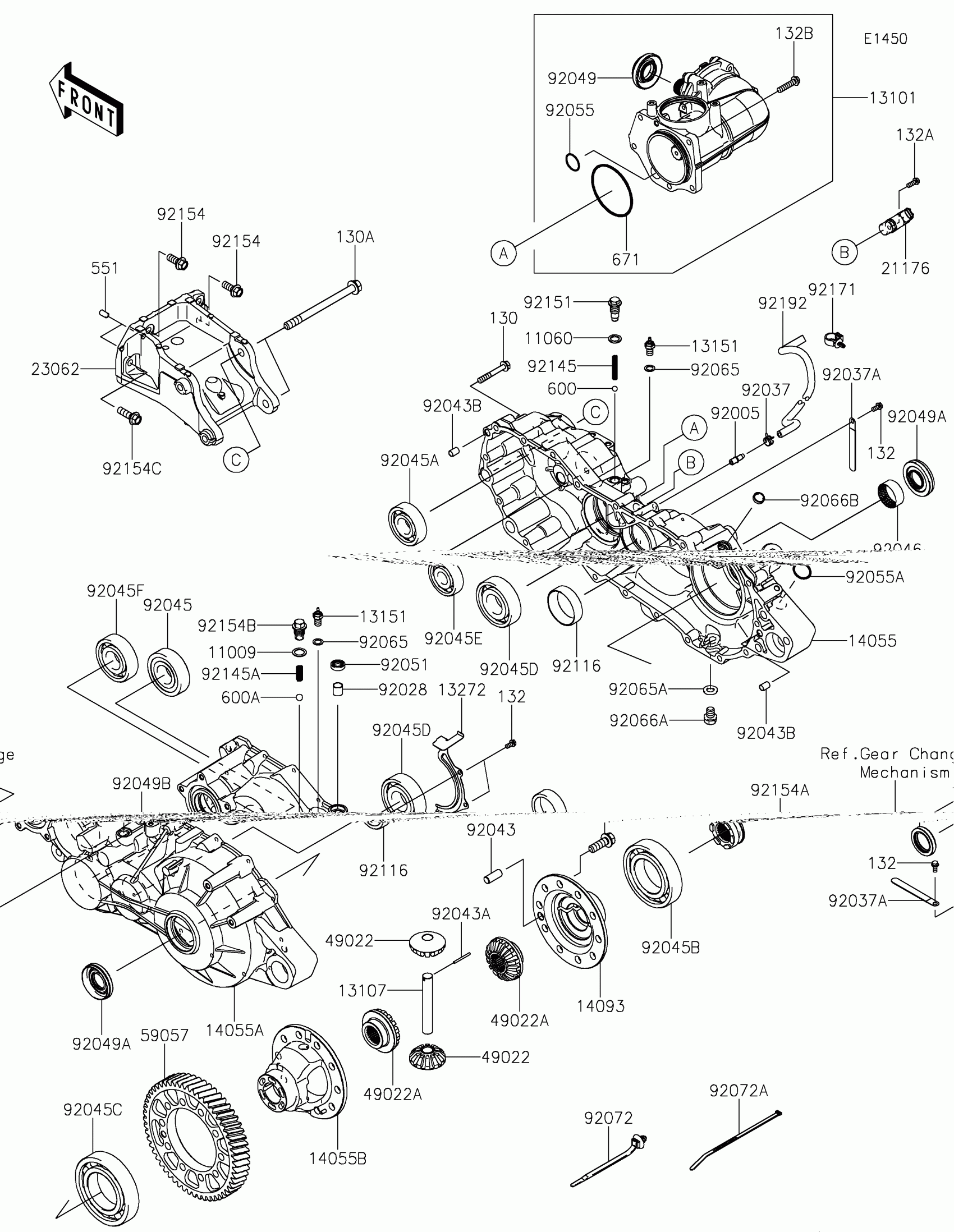

Find the part on the Gear BOX diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

11060

GASKET,14X20X2

11060-1287

1
Out of stock

13101

GEAR-ASSY,PARTICULAR

13101-0636

1
Out of stock

13107

SHAFT

13107-0793

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1
Out of stock

13272

PLATE

13272-1624

1

$7.69

In stock

14055

CASE-GEAR,RH

14055-0607

1

$463.14

In stock

14055A

CASE-GEAR,LH

14055-0608

1

$387.50

In stock

14055B

CASE-GEAR,DIFF

14055-0614

1

$354.05

In stock

14093

COVER,DIFF

14093-0048

1
Out of stock

21176

SENSOR,ROTATION

21176-0767

1
Out of stock

23062

BRACKET-COMP

23062-0855

1
Out of stock

49022

GEAR-BEVEL,PINION,12T

49022-0585

1
Out of stock

49022A

GEAR-BEVEL,OUTPUT,16T

49022-0589

1
Out of stock

59057

GEAR-HELICAL,55T

59057-0012

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92028

BUSHING

92028-1347

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-1993

1
Out of stock

92043

PIN,DOWEL,12X30

92043-0789

1
Out of stock

92043A

PIN,DOWEL

92043-0806

1
Out of stock

92043B

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92045

BEARING-BALL,63/32

92045-0764

1
Out of stock

92045A

BEARING-BALL,63/28

92045-0765

1
Out of stock

92045B

BEARING-BALL,6212

92045-0766

1
Out of stock

92045C

BEARING-BALL,6213

92045-0767

1
Out of stock

92045D

BEARING-BALL,6307C3

92045-0768

1
Out of stock

92045E

BEARING-BALL,B22-19C3 UR

92045-0769

1
Out of stock

92045F

BEARING-BALL,63/32C3

92045-1364

1
Out of stock

92046

BEARING-NEEDLE,BTM35.6

92046-0612

1
Out of stock

92049

SEAL-OIL

92049-0160

1
Out of stock

92049A

SEAL-OIL

92049-0749

1
Out of stock

92049B

SEAL-OIL,TC32488

92049-1361

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,1.9X26.2

92055-0782

1
Out of stock

92055A

RING-O,25.7X2.4

92055-1136

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92065A

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,25X8

92066-0012

1
Out of stock

92066A

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

130

BOLT-FLANGED,8X55

130BA0855

1

$1.90

In stock

130A

BOLT-FLANGED,12X150

130CA12150

1

$16.53

In stock

132

1

$1.12

In stock

132A

1

$1.21

In stock

132B

1

$3.78

In stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

600

BALL-STEEL,5/16

600A1000

1
Out of stock

600A

BALL-STEEL,13/32"

600A1300

1
Out of stock

671

O RING

671D2585

1
Out of stock

92066B

PLUG

92066-7014

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072A

BAND,L=292.1

92072-3509

—
Out of stock

92116

BEARING-ROLLER,HR32206JA LC

92116-0008

1
Out of stock

92145

SPRING

92145-1589

1
Out of stock

92145A

SPRING

92145-1590

1
Out of stock

92151

BOLT,CHANGE POSITION

92151-1687

1
Out of stock

92154

BOLT,FLANGED,10X25

92154-1329

1
Out of stock

92154A

BOLT,FLANGED,12X35

92154-1332

1
Out of stock

92154B

BOLT,CHANGE POSITION

92154-1366

1
Out of stock

92154C

BOLT,FLANGED,10X32

92154-1740

1
Out of stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92192

TUBE,BREATHER

92192-1340

1
Out of stock
