Description

Price

14093

COVER,D-RING

14093-1037

$3.80

14093A

COVER,D-RING

14093-1555

$3.80

53061

BELT-SEAT,BUCKLE

53061-0039

$28.65

53061A

BELT-SEAT,FR,LH&RH

53061-0340

$157.21

53061B

BELT-SEAT,MIDDLE

53061-0341

$163.87

53061C

BELT-SEAT,BUCKLE,SW.

53061-0364

$50.22

53061D

BELT-SEAT,FR,LH&RH

53061-0381

$168.60

53061E

BELT-SEAT,MIDDLE

53061-0383

$168.60

53061F

BELT-SEAT,BUCKLE,SW.

53061-0384

$56.84

53061G

BELT-SEAT,BUCKLE

53061-0385

$32.38

53066

SEAT-ASSY,BACK,BLACK

53066-0742-MA

$261.04

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0743-MA

$482.40

92039

RIVET

92039-0747

$2.05

92043

PIN

92043-0859

$1.61

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER,10.5X30X8.2

92161-1784

$0.86

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,TAPPING,6X20

92172-0488

$2.44

92200

WASHER,16X22X2

92200-1798

$1.20

130

BOLT-FLANGED,12X20

130BA1220

$2.97

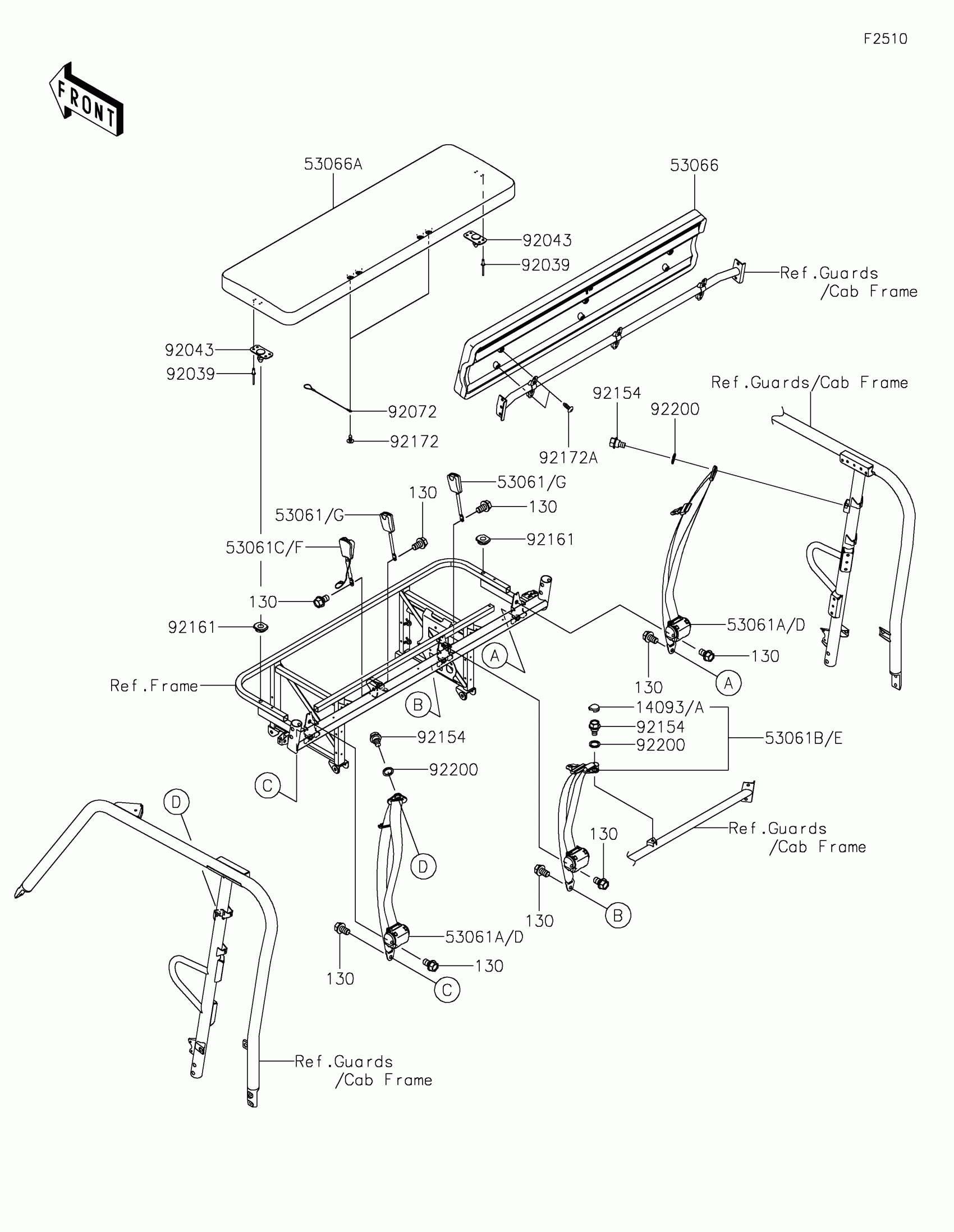

Kawasaki MULE PRO-DX Seat Diagram
