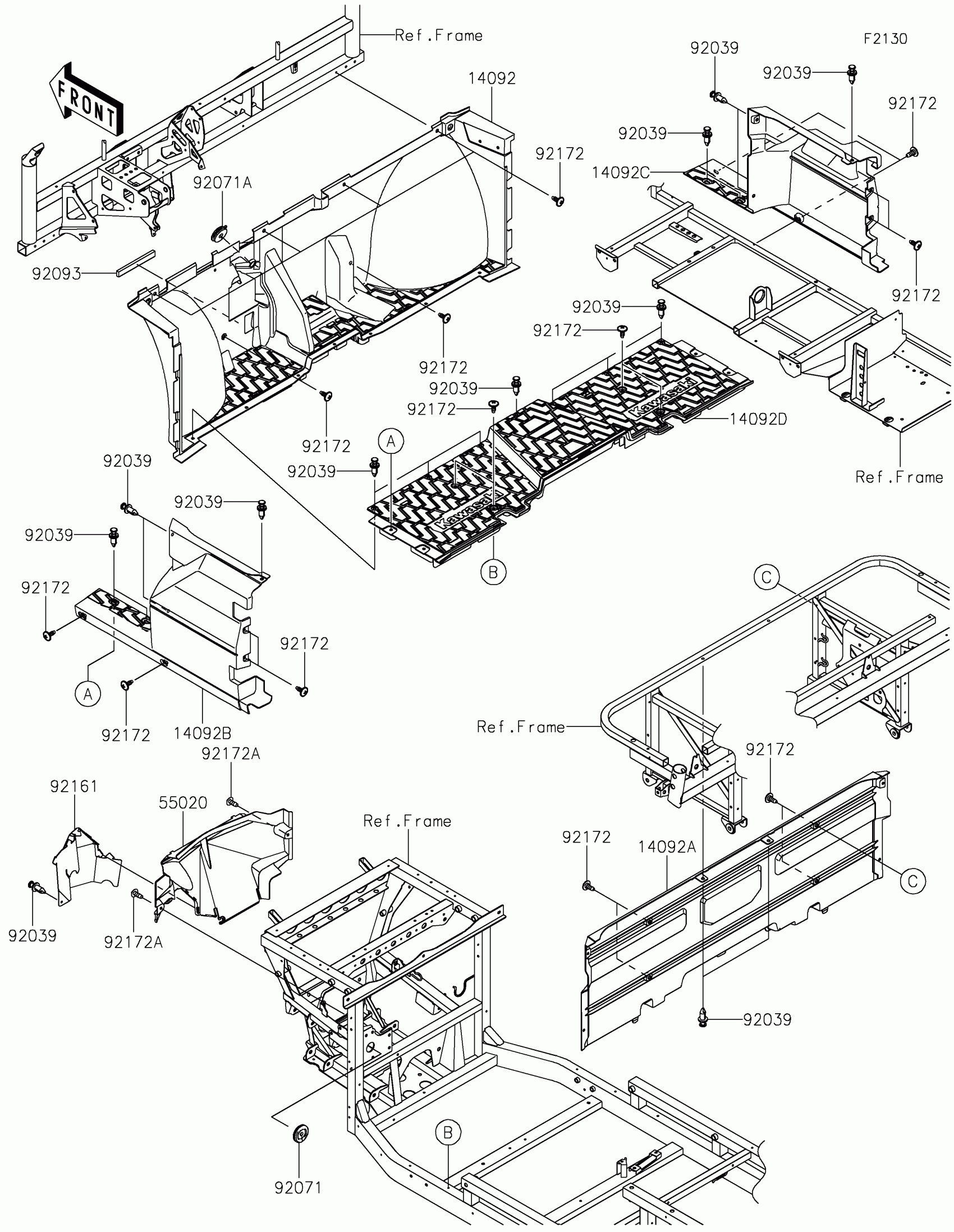

Kawasaki MULE PRO-DX Frame Fittings(Front) Diagram

Description

Price

14092

COVER,FR FLOOR

14092-1184

$245.36

14092A

COVER,FR SEAT

14092-1185

$115.40

14092B

COVER,SIDE,LH,FR

14092-1188

$80.74

14092C

COVER,SIDE,RH,FR

14092-1189

$80.74

14092D

COVER,FLOOR,BOTTOM

14092-1196

$218.39

55020

GUARD

55020-0961

$42.13

92039

RIVET

92039-0776

$0.80

92071

GROMMET,9X45X9

92071-0728

$1.32

92071A

GROMMET,8X22X8

92071-0753

$4.32

92093

SEAL,10X20X165

92093-0617

$3.11

92161

DAMPER

92161-1649

$16.42

92172

SCREW,6X16

92172-0711

$2.44

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85
