2025 Kawasaki Mule PRO-DX™ EPS Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2025 Kawasaki Mule PRO-DX™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

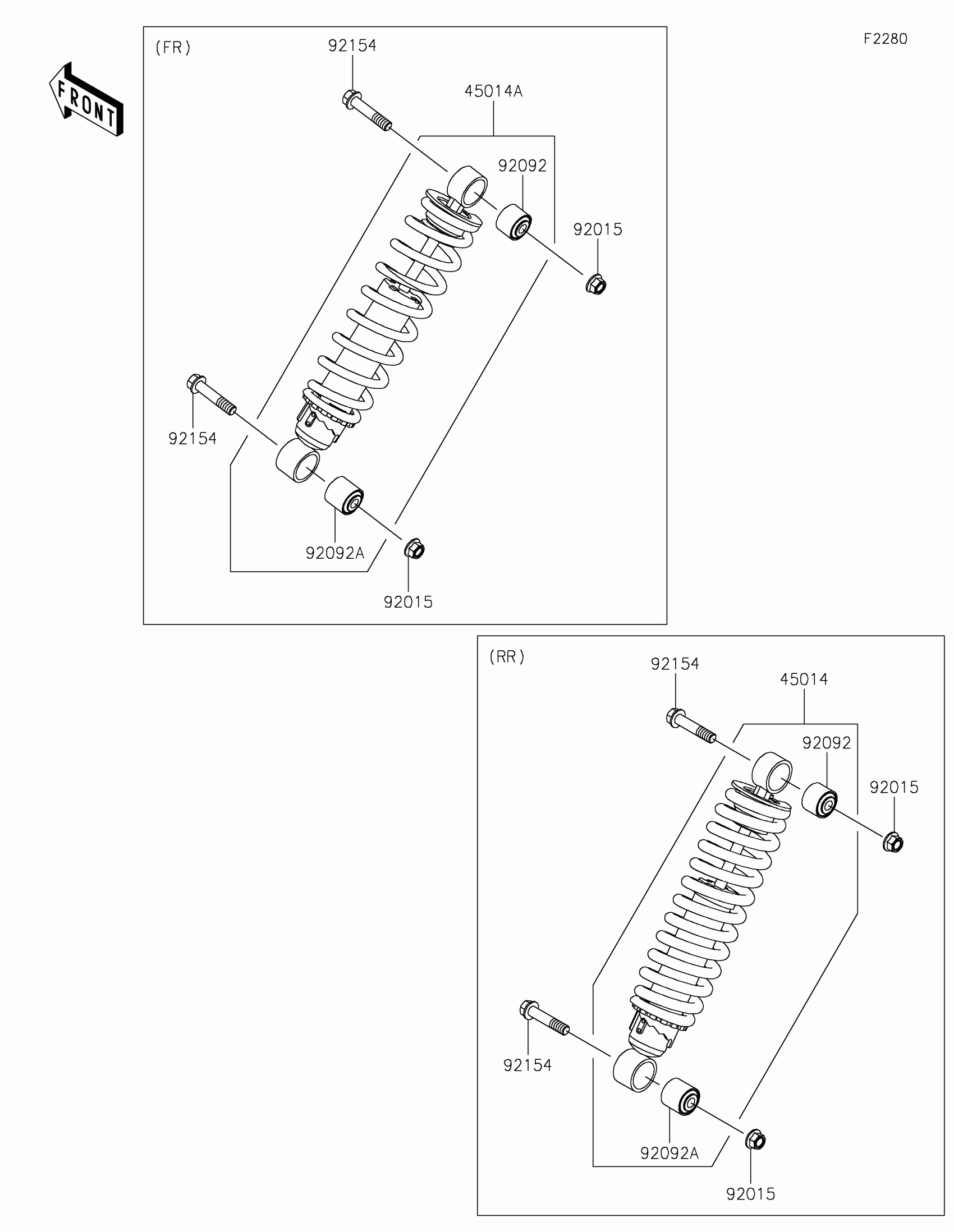

2025 Kawasaki Mule PRO-DX™ EPS Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,RR

45014-0537

1
Out of stock

45014A

SHOCKABSORBER,FR

45014-0558

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92092

BUSHING-RUBBER,UPP

92092-0034

1
Out of stock

92092A

BUSHING-RUBBER,LWR

92092-0035

1
Out of stock

92154

BOLT,FLANGED,12X58

92154-1319

1
Out of stock
