Description

Price

11065

CAP

11065-0901

$2.37

31064

PIPE-COMP,SEAT SIDE,LH

31064-0706

$41.20

31064A

PIPE-COMP,SEAT SIDE,RH

31064-0707

$56.85

32181

FRAME-SUB-COMP,SEAT

32181-0014

$775.21

32181A

FRAME-SUB-COMP,DASH PANEL

32181-0048

$775.21

39043

CROSSMEMBER-COMP,RR CROSS

39043-0020

$483.71

39043A

CROSSMEMBER-COMP,C-PILLAR

39043-0026

$483.70

39051

FRAME-COMP-SIDE,LH

39051-0012

$327.32

39051A

FRAME-COMP-SIDE,RH

39051-0014

$626.53

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,POP,6MM,L=15

92015-1791

$3.57

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92200

WASHER,10.5X25X1.6

92200-1595

$4.65

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X14

130BA0814

$1.54

130B

BOLT-FLANGED,8X60

130BA0860

$1.24

130C

BOLT-FLANGED,10X65

130BA1065

$2.17

130D

BOLT-FLANGED,10X70

130BA1070

$2.25

130E

BOLT-FLANGED,10X75

130CA1075

$3.85

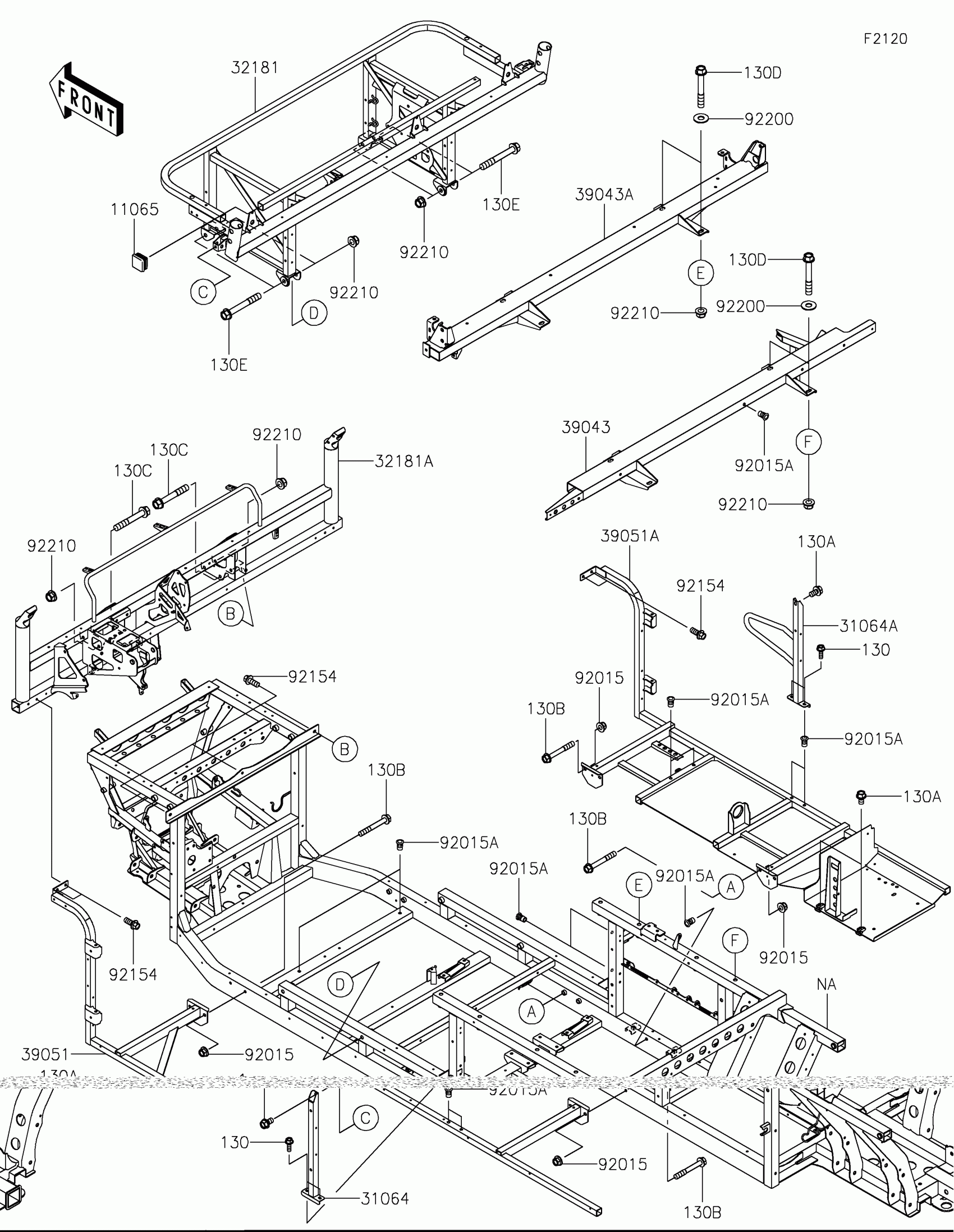

Kawasaki MULE PRO-DX™ EPS Frame Diagram

CAP
