2025 Kawasaki Mule PRO-DX™ EPS Drive Shaft-Front Diagram

← All diagrams

Find the part on the Drive Shaft-Front diagram for your 2025 Kawasaki Mule PRO-DX™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

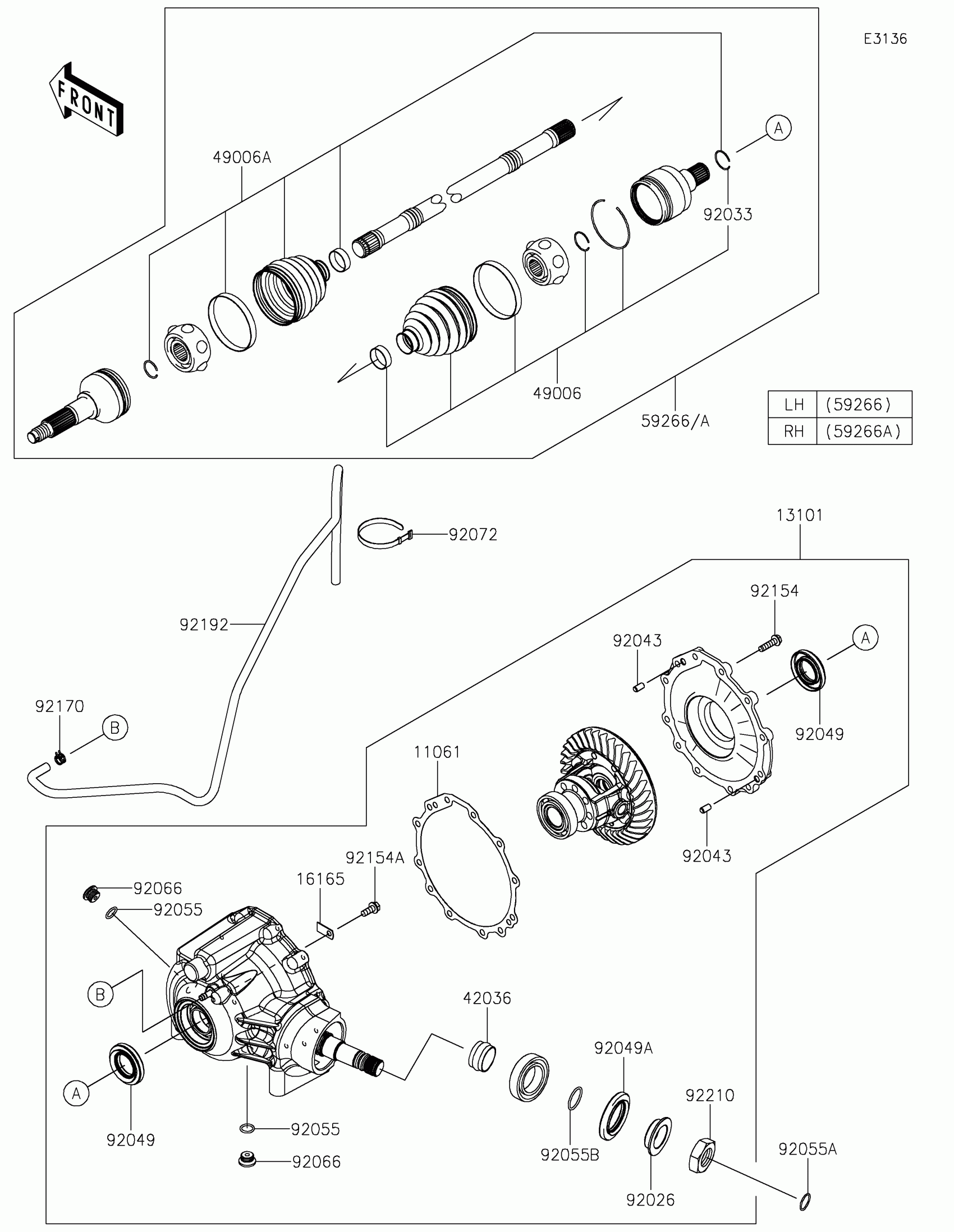

2025 Kawasaki Mule PRO-DX™ EPS Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CASE

11061-1413

1
Out of stock

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0687

1
Out of stock

16165

SEPARATOR

16165-0019

1
Out of stock

42036

SLEEVE

42036-0873

1
Out of stock

49006

BOOT,INSIDE

49006-0641

1
Out of stock

49006A

BOOT,OUTSIDE

49006-0642

1
Out of stock

59266

JOINT-BALL,FR,LH

59266-0763

1
Out of stock

59266A

JOINT-BALL,FR,RH

59266-0764

1
Out of stock

92026

SPACER

92026-0916

1
Out of stock

92033

RING-SNAP

92033-0849

1
Out of stock

92043

PIN,DOWEL,8X14

92043-1750

1
Out of stock

92049

SEAL-OIL,TC9 35X62X9

92049-0856

1
Out of stock

92049A

SEAL-OIL,TC7 45X72X7

92049-0857

1
Out of stock

92055

RING-O

92055-0862

1
Out of stock

92055A

RING-O,22.1X1.9

92055-1617

1
Out of stock

92055B

RING-O

92055-1719

1
Out of stock

92066

PLUG,M18

92066-0982

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-4354

1
Out of stock

92154A

BOLT,FLANGED,8X16

92154-4355

1
Out of stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92192

TUBE,BREATHER

92192-1341

1
Out of stock

92210

NUT,M30

92210-1884

1
Out of stock
