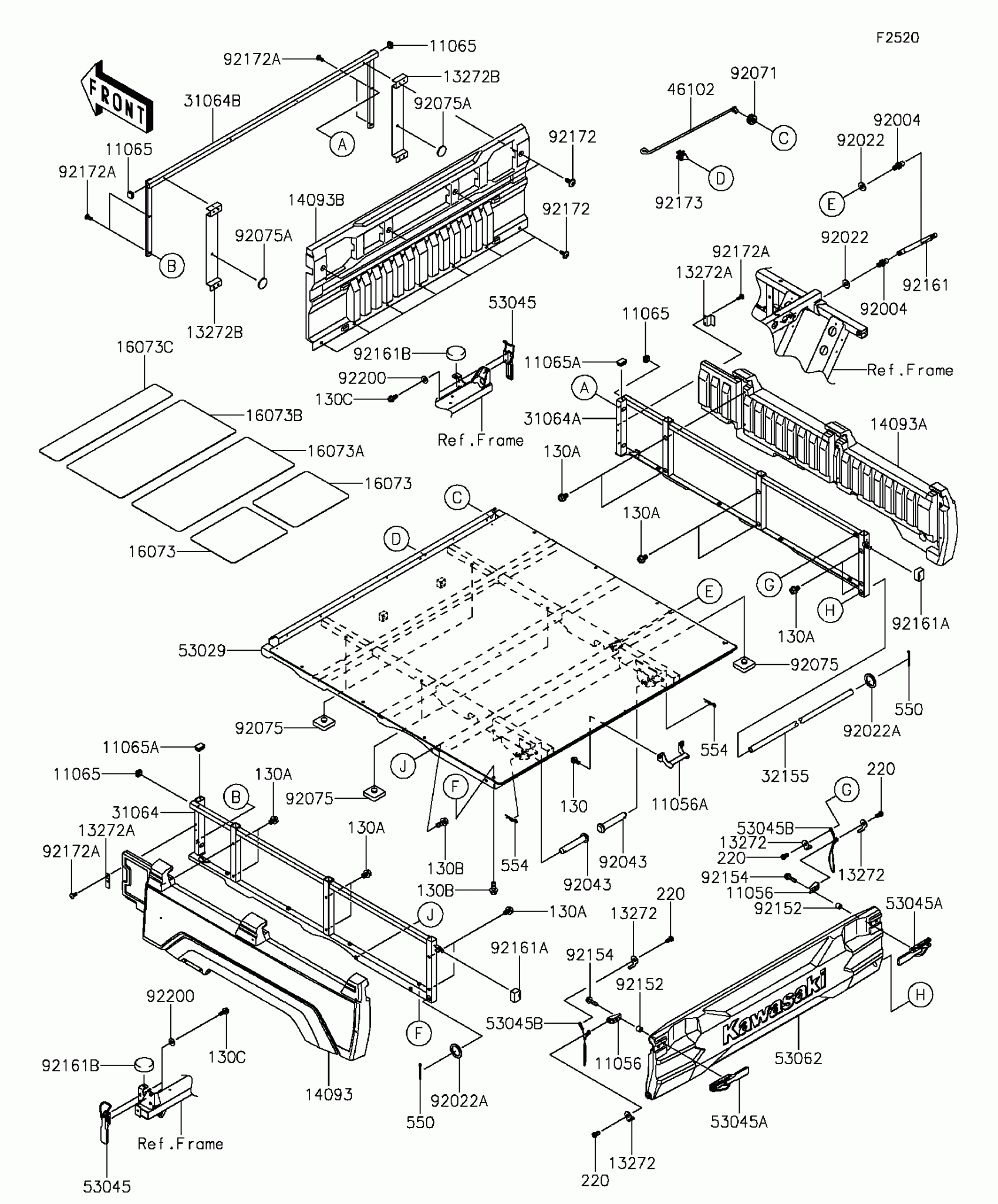

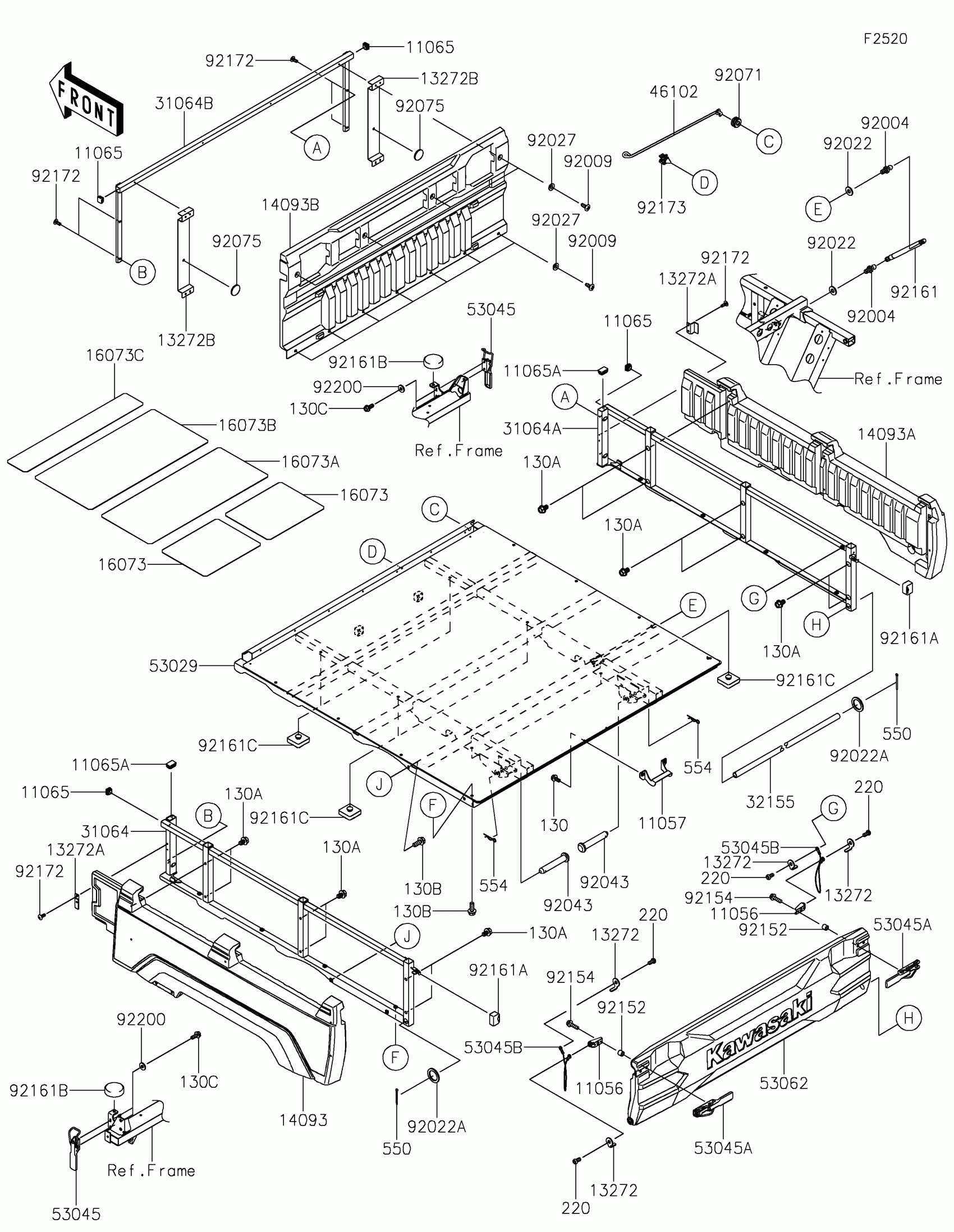

Kawasaki MULE PRO-DX™ EPS DIESEL Carrier(s) Diagram

#

Description
Price

11056

BRACKET,STOPPER

11056-2848

$19.44

11056A

BRACKET,SUPPORT

11056-4273

$20.58

11065

CAP

11065-0901

$2.37

11065A

CAP

11065-0907

$2.37

13272

PLATE

13272-1597

$1.05

13272A

PLATE,SIDE FRAME

13272-1993

$3.25

13272B

PLATE,FR COVER

13272-2101

$30.78

14093

COVER,RESIN PANEL,LH,F.BLACK

14093-0165-6Z

$163.87

14093A

COVER,RESIN PANEL,RH,F.BLACK

14093-0166-6Z

$152.91

14093B

COVER,SCREEN

14093-0301

$81.94

16073

INSULATOR,265X335

16073-0813

$10.25

16073A

INSULATOR,295X705

16073-0816

$23.71

16073B

INSULATOR,335X705

16073-0835

$12.98

16073C

INSULATOR,115X705

16073-0836

$7.58

31064

PIPE-COMP,SIDE FRAME,LH

31064-0661

$187.20

31064A

PIPE-COMP,SIDE FRAME,RH

31064-0662

$517.59

31064B

PIPE-COMP,FR FRAME

31064-0663

$201.90

32155

PIPE

32155-1533

$64.17

46102

ROD,STOPPER

46102-0615

$0.75

53029

CARRIER,BASE

53029-0343

$1,017.81

53045

HOOK-ASSY,MAIN LOCK

53045-0025

$21.49

53045A

HOOK-ASSY,MAIN CLAMP

53045-0026

$23.72

53045B

HOOK-ASSY

53045-0029

$5.19

53062

GATE-TAIL

53062-0022

$125.99

92004

STUD

92004-0733

$2.44

92022

WASHER,8.2X19X2

92022-1533

$4.85

92022A

WASHER,23X32X2.3

92022-1618

$5.42

92043

PIN,12.4X72.4

92043-0716

$7.15

92071

GROMMET

92071-0012

$3.62

92075

DAMPER

92075-1882

$6.44

92075A

DAMPER,RUBBER

92075-261

$3.85

92152

COLLAR,6.8X10X9.3

92152-1799

$1.88

92154

BOLT,FLANGED,6X22

92154-1356

$1.32

92161

DAMPER

92161-1615

$26.79

92161A

DAMPER

92161-1656

$1.22

92161B

DAMPER,10X40X10

92161-1775

$7.47

92172

SCREW,6X16

92172-0711

$2.44

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,FUEL PIPE

92173-1213

$1.32

92200

WASHER,6.5X16X2.0

92200-1543

$1.95

130

BOLT-FLANGED,6X14

130BA0614

$1.12

130A

BOLT-FLANGED,8X12

130BA0812

$0.92

130B

BOLT-FLANGED,8X20

130BA0820

$3.27

130C

BOLT-FLANGED,6X16

130CA0616

$1.53

220

SCREW-PAN-CROS,6X10

220AB0610

$1.54

550

PIN-COTTER,3.0X30

550AA3030

$2.08

554

PIN-SNAP,12MM

554DA1200

$2.74
