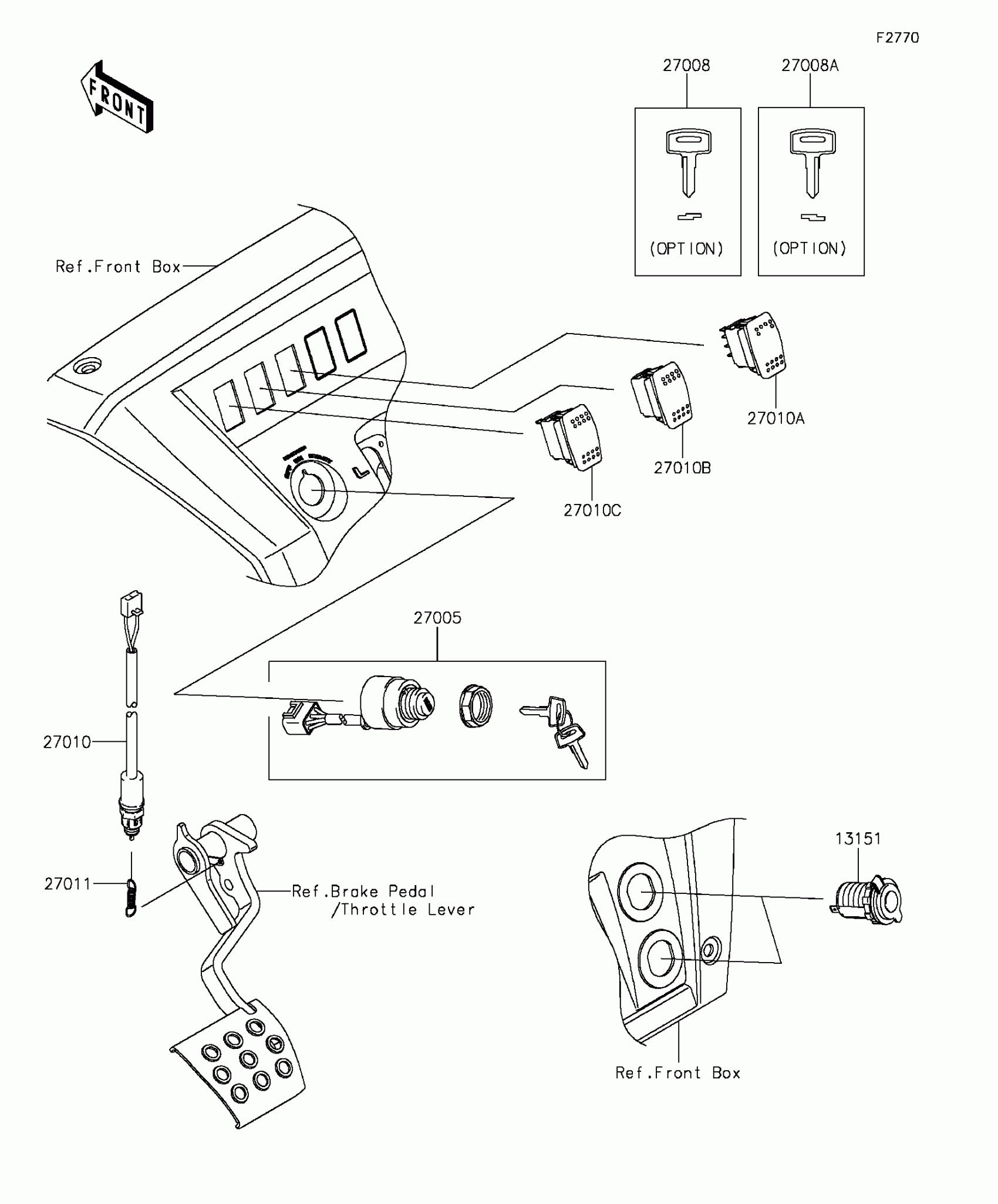

Kawasaki MULE PRO-DX™ DIESEL Ignition Switch Diagram

#

Description
Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

27005

SWITCH-ASSY-IGNITION

27005-0585

$79.99

27008

KEY-LOCK,BLANK

27008-1153

$14.13

27008A

KEY-LOCK,BLANK

27008-1157

$14.13

27010

SWITCH,BRAKE

27010-0724

$31.74

27010A

SWITCH,HEAD LAMP

27010-0750

$63.97

27010B

SWITCH,2WD/4WD

27010-0751

$28.57

27010C

SWITCH,DIFF LOCK

27010-0810

$28.57

27011

SPRING,BRAKE LAMP SWITCH

27011-006

$4.34
