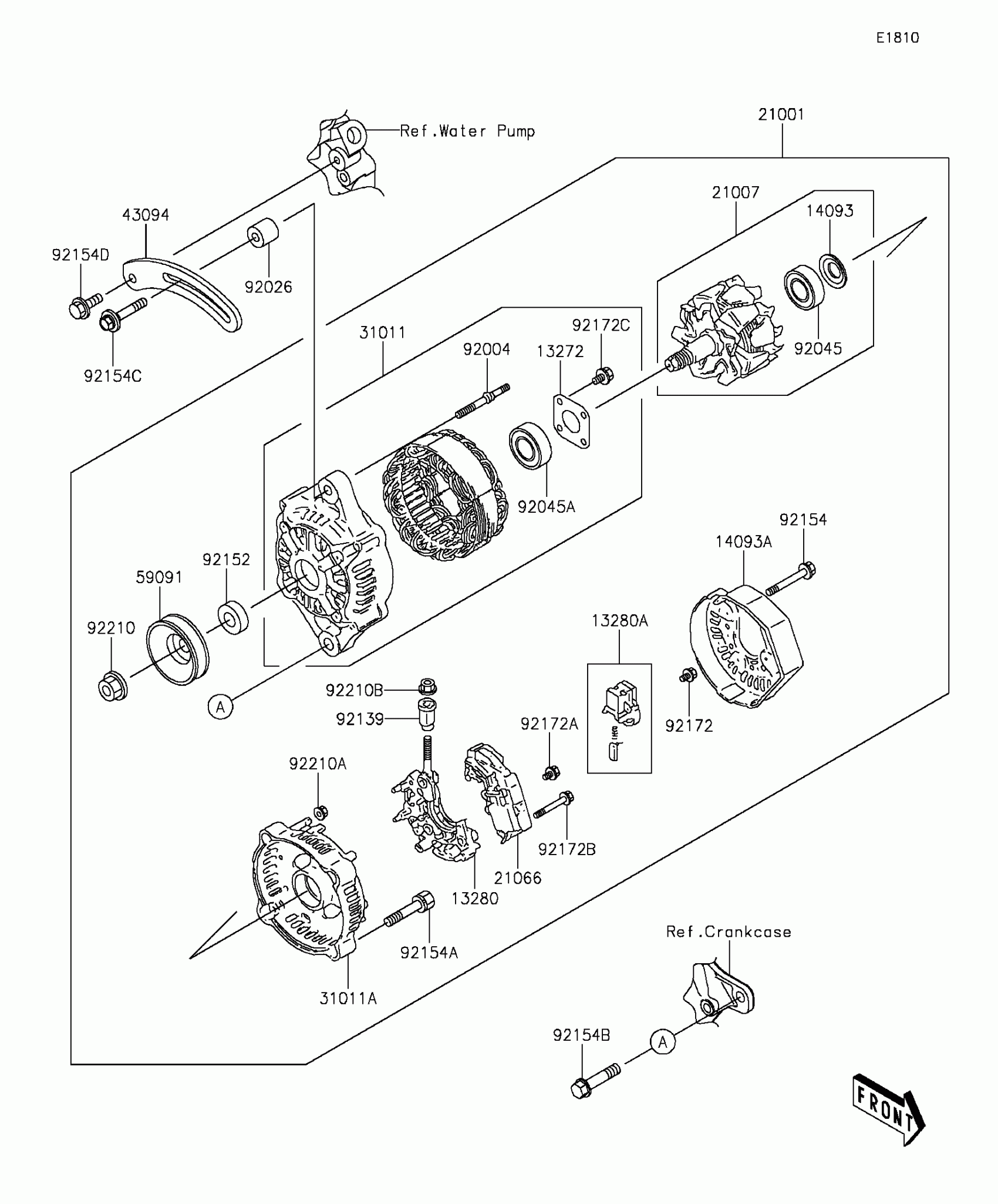

Kawasaki MULE PRO-DX™ DIESEL Generator Diagram

Description

Price

13272

PLATE,RETAINER

13272-2135

$10.58

13280

HOLDER

13280-0864

$257.97

13280A

HOLDER,BRUSH

13280-0865

$57.05

14093

COVER

14093-0450

$4.86

14093A

COVER

14093-0451

$112.99

21001

GENERATOR

21001-0613

$1,428.50

21007

ROTOR

21007-0637

$376.00

21066

REGULATOR-VOLTAGE

21066-0749

$474.59

31011

FRAME

31011-0027

$427.02

31011A

FRAME

31011-0028

$106.83

43094

ADJUSTER

43094-0007

$22.81

59091

PULLEY

59091-0015

$76.95

92004

STUD

92004-0751

$11.10

92026

SPACER

92026-0821

$8.81

92045

BEARING-BALL

92045-0812

$22.39

92045A

BEARING-BALL

92045-0816

$30.17

92139

BUSHING

92139-0861

$14.46

92152

COLLAR

92152-2198

$16.66

92154

BOLT

92154-2074

$3.59

92154A

BOLT

92154-2075

$4.25

92154B

BOLT,FLANGED,10X45

92154-2076

$2.68

92154C

BOLT

92154-2077

$14.95

92154D

BOLT,FLANGED,8X20

92154-2078

$1.71

92172

SCREW

92172-0989

$3.56

92172A

SCREW

92172-0990

$3.56

92172B

SCREW

92172-0991

$2.68

92172C

SCREW

92172-1096

$3.59

92210

NUT

92210-1474

$4.93

92210A

NUT

92210-1475

$3.59

92210B

NUT

92210-1476

$3.56
