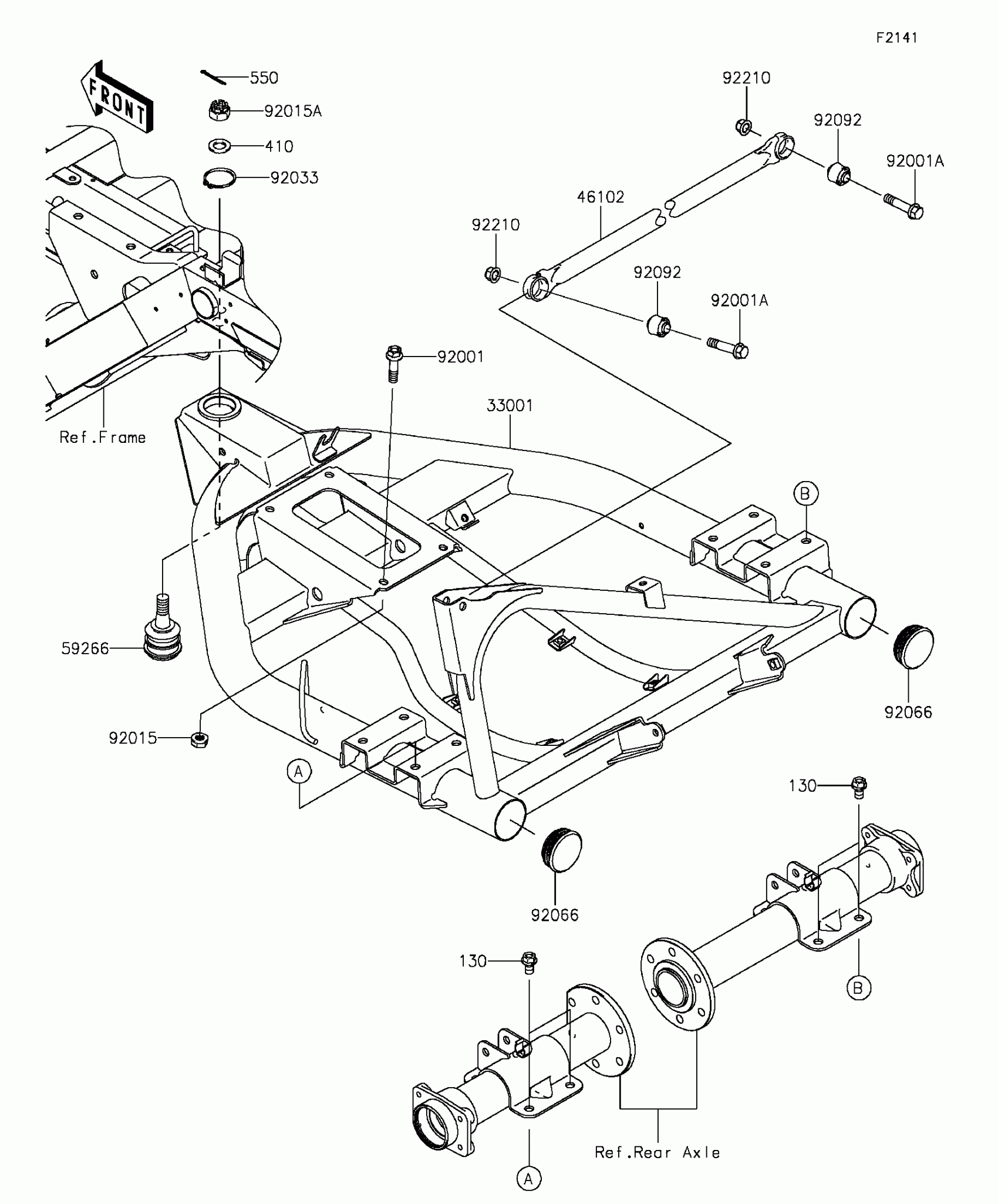

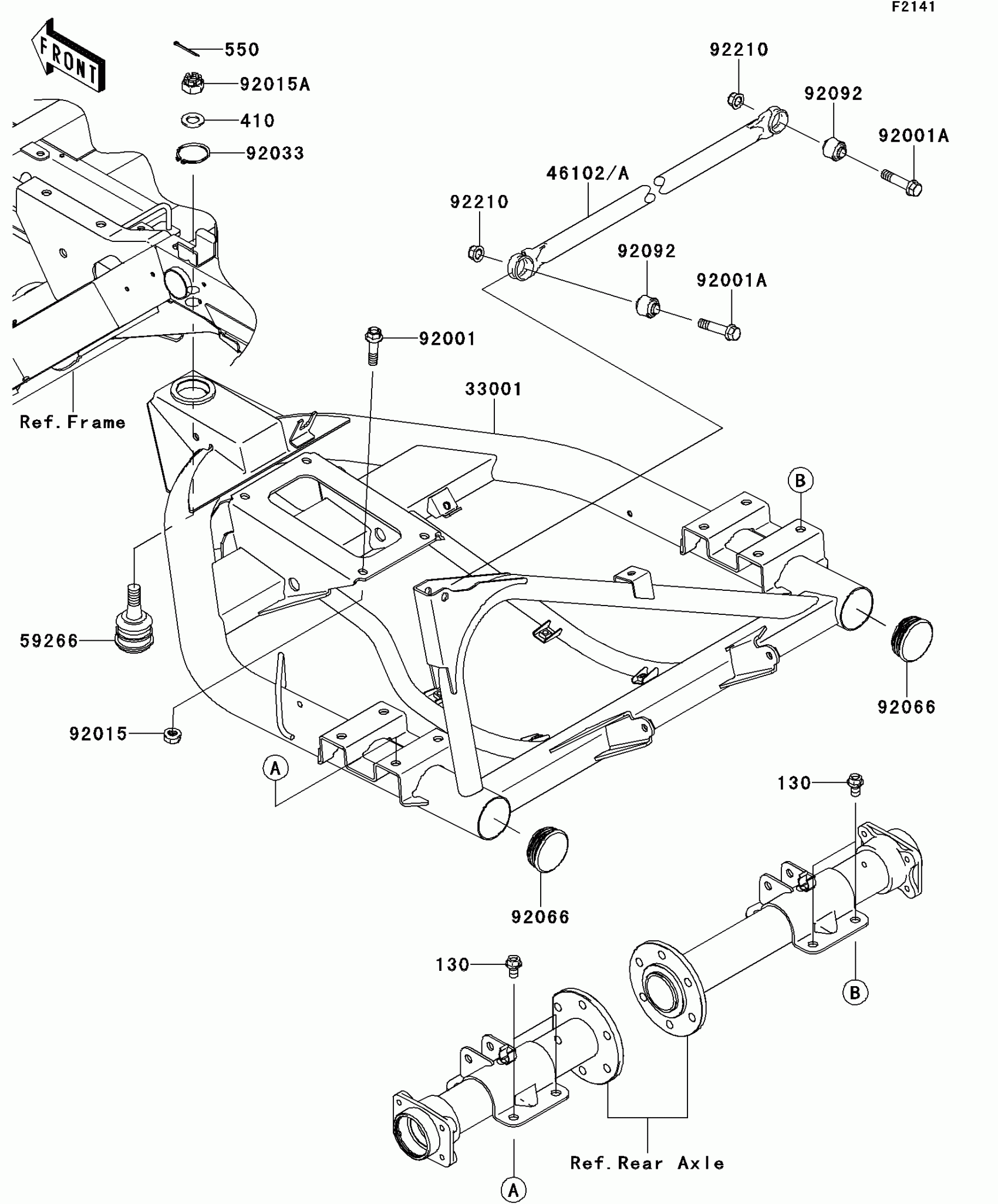

Kawasaki MULE™ 610 4x4 XC Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0061

$542.25

46102

ROD

46102-0583

$82.45

59266

JOINT-BALL

59266-1087

$58.19

92001

BOLT,FLANGED,10X38

92001-1293

$7.25

92001A

BOLT,FLANGED,10X44

92001-1499

$4.18

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92015A

NUT,CASTLE,14MM

92015-1841

$6.39

92033

RING-SNAP

92033-0050

$7.56

92066

PLUG

92066-0044

$3.86

92092

BUSHING-RUBBER

92092-7502

$9.92

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,10X16

130BA1016

$3.63

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

550

PIN-COTTER,3.2X30

550AA3230

$2.08
